| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_090T11_9000004784_33339cztM0_level2.evt | modeM0/AS1A10_090T11_9000004784_33339cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,111,680 | 79,727,040 |
| Size | 473.1 MB | 76.0 MB |
| Events in quadrant A | 2,474,584 | 529,668 |
| Events in quadrant B | 3,736,070 | 516,870 |
| Events in quadrant C | 3,465,929 | 511,780 |
| Events in quadrant D | 4,999,992 | 495,552 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10460 | 3 |
| B | 0 | 14353 | 2 |
| C | 0 | 13461 | 2 |
| D | 0 | 18520 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5143 | 10 | 0.194439% |
| B | 5143 | 345 | 6.708147% |
| C | 5143 | 156 | 3.033249% |
| D | 5143 | 223 | 4.335991% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7086 | 5144 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7086 | 5144 | 242 | 242 | 3.42% | 4.70% |  |
| C | 7086 | 5144 | 147 | 147 | 2.07% | 2.86% |  |
| D | 7086 | 5144 | 207 | 207 | 2.92% | 4.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 16202 | 123.19 | 630 | 620 | 126.5 |
| A | 13 | 6 | 10838 | 80.78 | 630 | 620 | 126.5 |
| A | 13 | 254 | 8741 | 64.2 | 630 | 620 | 126.5 |
| B | 5 | 172 | 516975 | 4419.42 | 614 | 600 | 116.8 |
| B | 5 | 200 | 355889 | 3040.76 | 614 | 600 | 116.8 |
| B | 0 | 219 | 248574 | 2122.3 | 614 | 600 | 116.8 |
| C | 1 | 23 | 596077 | 4352.3 | 594 | 600 | 136.8 |
| C | 15 | 214 | 238436 | 1738.33 | 594 | 600 | 136.8 |
| C | 0 | 10 | 194339 | 1416.02 | 594 | 600 | 136.8 |
| D | 8 | 195 | 1708653 | 10860.13 | 595 | 582 | 157.3 |
| D | 14 | 173 | 277752 | 1762.28 | 595 | 582 | 157.3 |
| D | 12 | 6 | 197806 | 1253.98 | 595 | 582 | 157.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

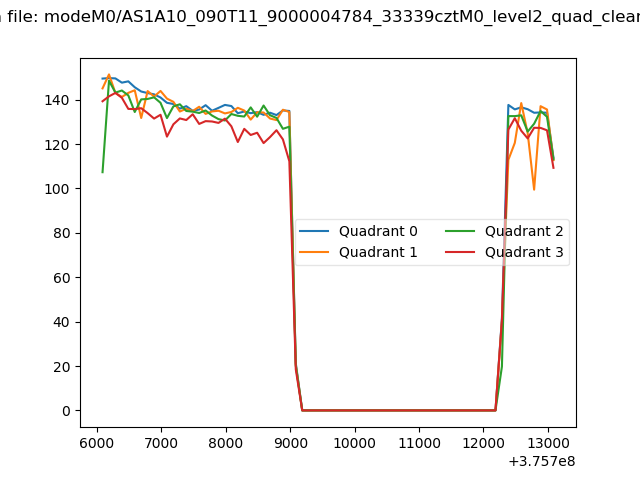

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

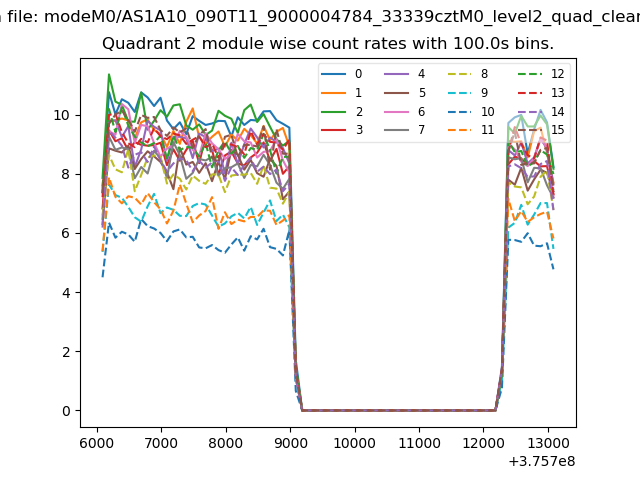

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

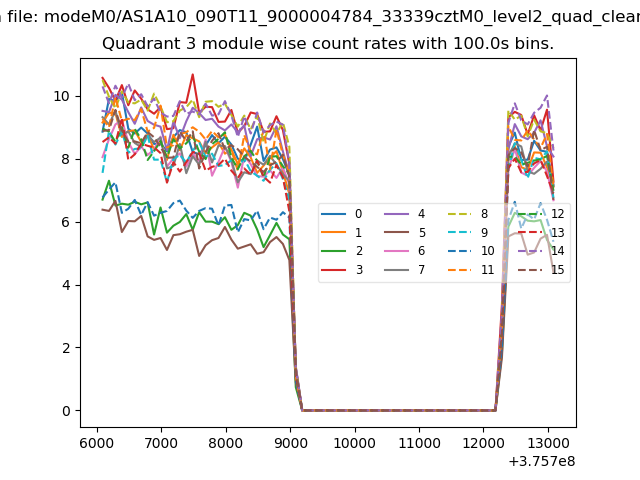

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

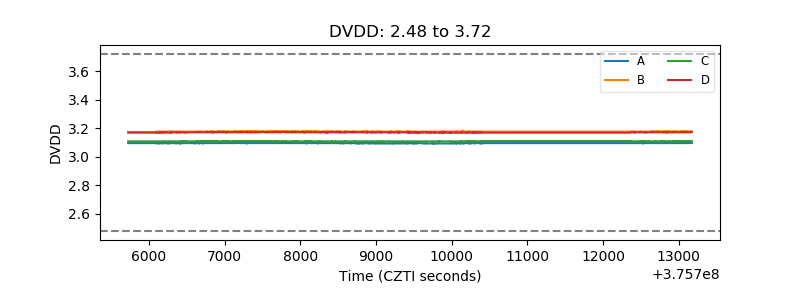

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

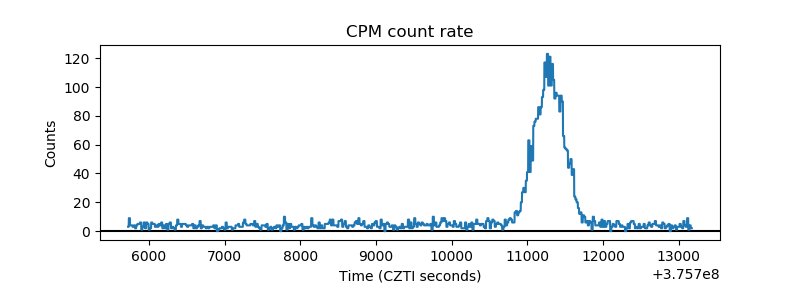

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

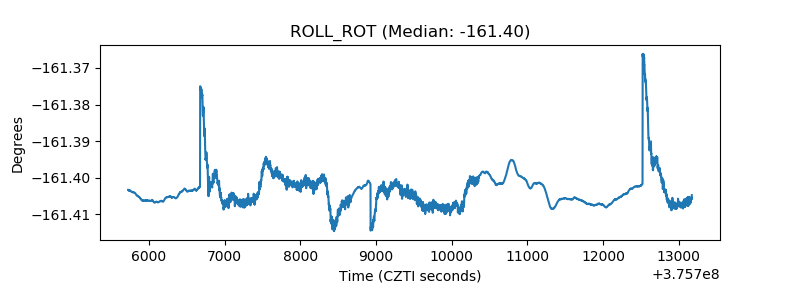

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

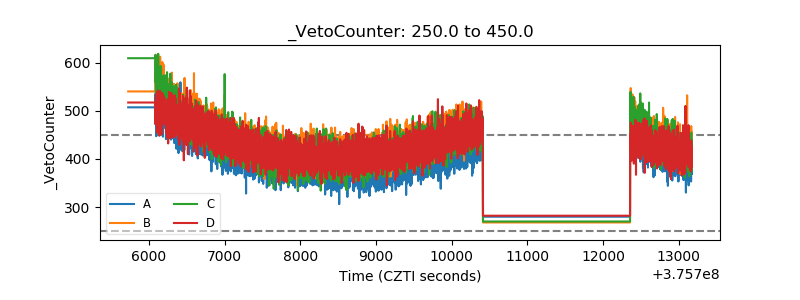

| Veto Counter |  |
