| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_090T11_9000004784_33340cztM0_level2.evt | modeM0/AS1A10_090T11_9000004784_33340cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,407,680 | 73,316,160 |
| Size | 568.8 MB | 69.9 MB |
| Events in quadrant A | 2,667,938 | 476,247 |
| Events in quadrant B | 4,028,988 | 462,388 |
| Events in quadrant C | 5,341,748 | 434,103 |
| Events in quadrant D | 5,638,036 | 448,165 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11605 | 2 |
| B | 0 | 15553 | 1 |
| C | 0 | 19533 | 1 |
| D | 0 | 20856 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5709 | 9 | 0.157646% |
| B | 5709 | 316 | 5.535120% |
| C | 5709 | 787 | 13.785251% |
| D | 5709 | 253 | 4.431599% |

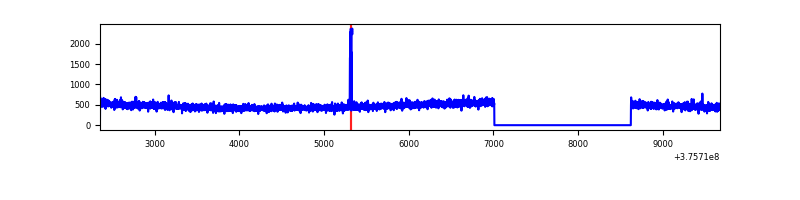

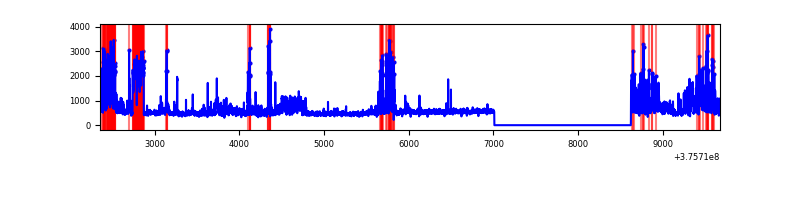

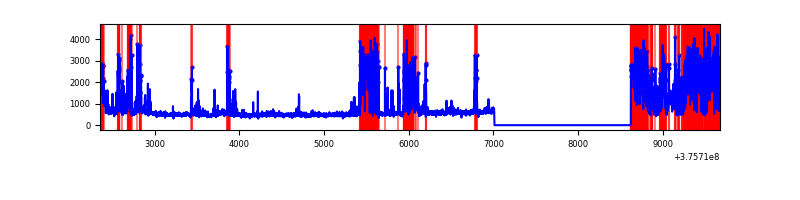

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7322 | 5710 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7322 | 5710 | 217 | 217 | 2.96% | 3.80% |  |
| C | 7321 | 5709 | 735 | 735 | 10.04% | 12.87% |  |
| D | 7322 | 5710 | 203 | 203 | 2.77% | 3.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 23343 | 164.67 | 681 | 667 | 137.7 |
| A | 13 | 254 | 9970 | 67.56 | 681 | 667 | 137.7 |
| A | 13 | 6 | 7612 | 50.43 | 681 | 667 | 137.7 |
| B | 0 | 219 | 534932 | 4190.96 | 670 | 653 | 127.5 |
| B | 5 | 172 | 416993 | 3265.83 | 670 | 653 | 127.5 |
| B | 5 | 200 | 233148 | 1823.73 | 670 | 653 | 127.5 |
| C | 1 | 23 | 1686589 | 11797.59 | 617 | 624 | 142.9 |
| C | 10 | 49 | 708139 | 4950.86 | 617 | 624 | 142.9 |
| C | 15 | 214 | 250003 | 1745.04 | 617 | 624 | 142.9 |
| D | 8 | 195 | 1784349 | 10552.48 | 645 | 630 | 169.0 |
| D | 2 | 250 | 454297 | 2683.89 | 645 | 630 | 169.0 |
| D | 14 | 173 | 200993 | 1185.35 | 645 | 630 | 169.0 |

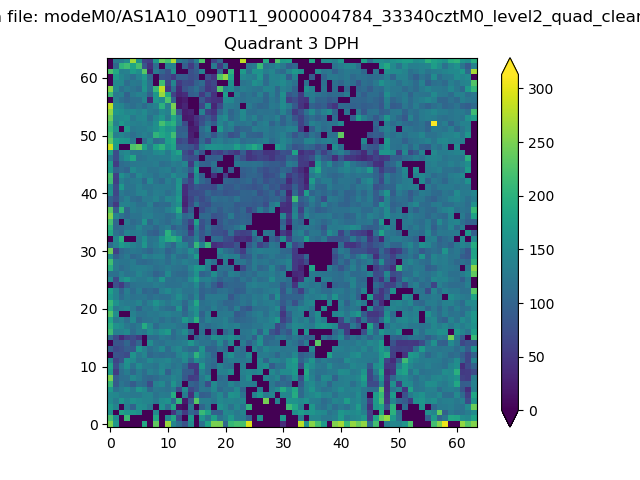

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

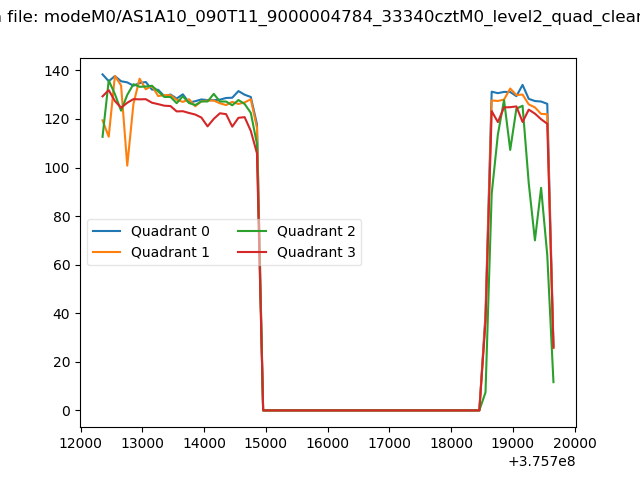

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

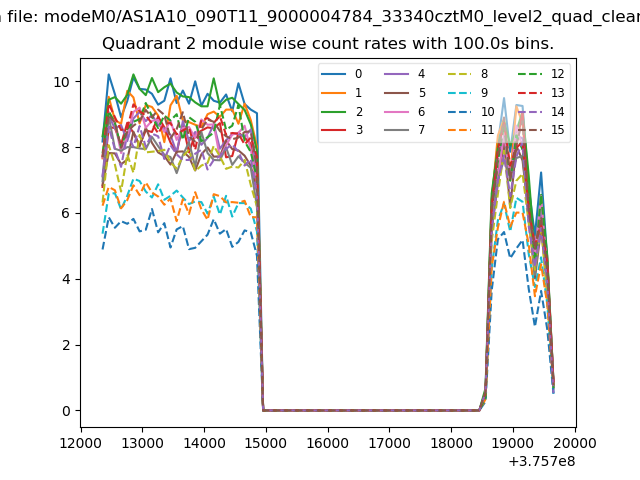

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

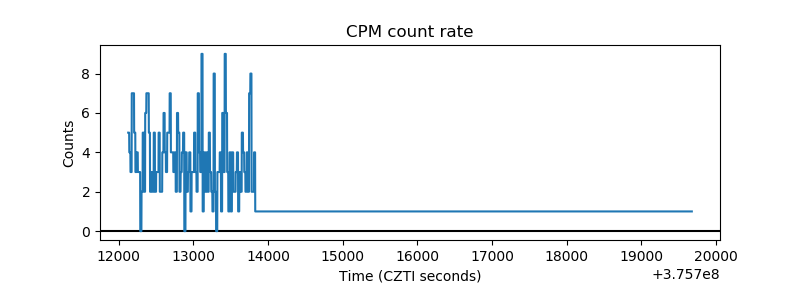

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

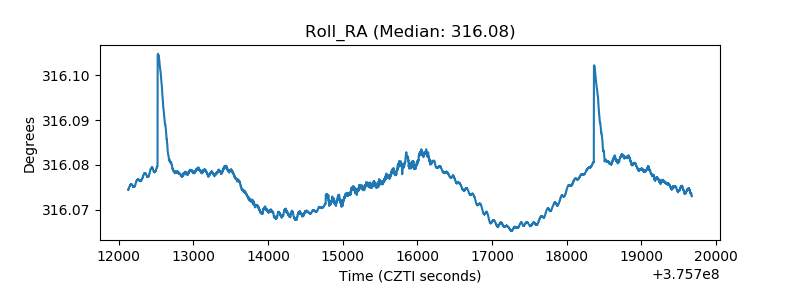

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
