| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T02_9000004788_33371cztM0_level2.evt | modeM0/AS1A10_064T02_9000004788_33371cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,705,280 | 64,630,080 |
| Size | 494.7 MB | 61.6 MB |
| Events in quadrant A | 2,807,967 | 392,843 |
| Events in quadrant B | 3,557,427 | 394,091 |
| Events in quadrant C | 3,407,808 | 388,978 |
| Events in quadrant D | 5,530,431 | 362,781 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12125 | 3 |
| B | 0 | 14282 | 2 |
| C | 0 | 13585 | 2 |
| D | 0 | 20638 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5982 | 16 | 0.267469% |
| B | 5982 | 84 | 1.404213% |
| C | 5982 | 62 | 1.036443% |
| D | 5982 | 408 | 6.820461% |

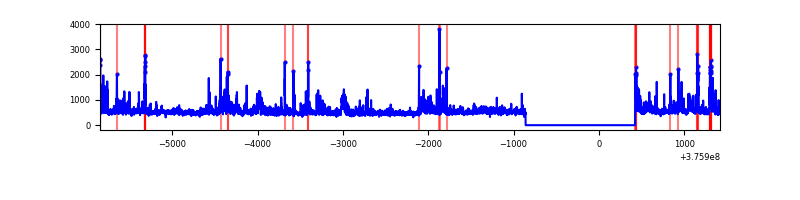

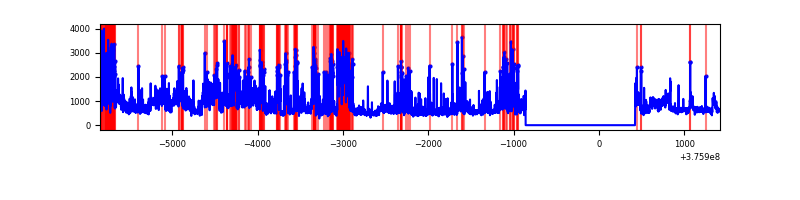

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7265 | 5983 | 11 | 11 | 0.15% | 0.18% |  |
| B | 7265 | 5983 | 40 | 40 | 0.55% | 0.67% |  |
| C | 7265 | 5983 | 51 | 51 | 0.70% | 0.85% |  |
| D | 7265 | 5983 | 363 | 363 | 5.00% | 6.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 33932 | 229.91 | 714 | 699 | 144.5 |
| A | 13 | 254 | 10063 | 64.78 | 714 | 699 | 144.5 |
| A | 15 | 174 | 8270 | 52.38 | 714 | 699 | 144.5 |
| B | 0 | 219 | 370325 | 2724.49 | 709 | 692 | 135.7 |
| B | 5 | 172 | 247851 | 1821.76 | 709 | 692 | 135.7 |
| B | 0 | 189 | 57139 | 416.06 | 709 | 692 | 135.7 |
| C | 15 | 214 | 258121 | 1602.12 | 691 | 695 | 160.7 |
| C | 0 | 10 | 143010 | 885.72 | 691 | 695 | 160.7 |
| C | 15 | 208 | 115703 | 715.77 | 691 | 695 | 160.7 |
| D | 8 | 195 | 1007651 | 5947.96 | 680 | 661 | 169.3 |
| D | 1 | 52 | 715077 | 4219.82 | 680 | 661 | 169.3 |
| D | 14 | 173 | 447864 | 2641.48 | 680 | 661 | 169.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

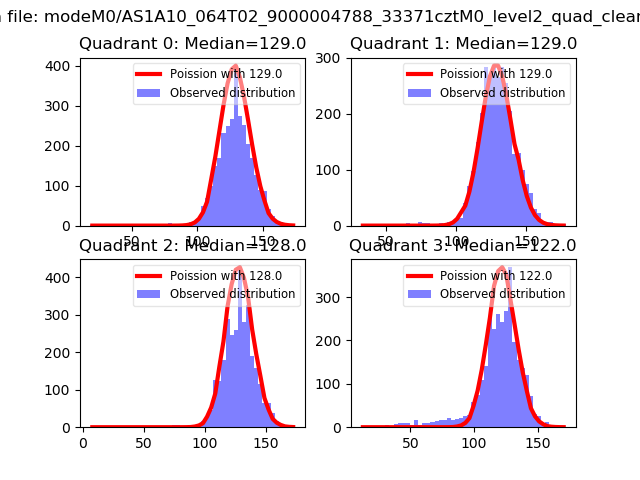

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

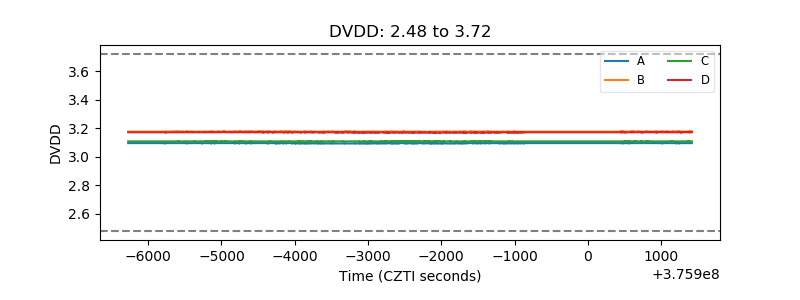

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

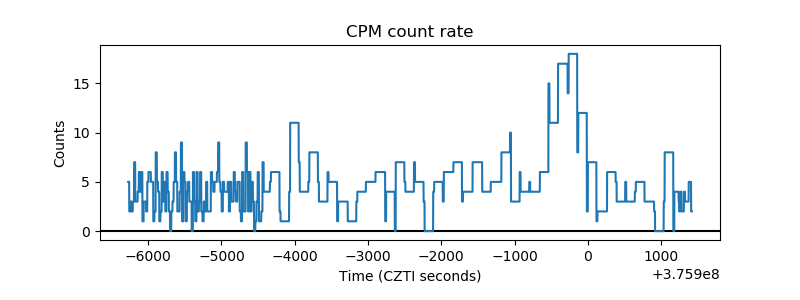

| _CPM_Rate |  |
| CZT Counter |  |

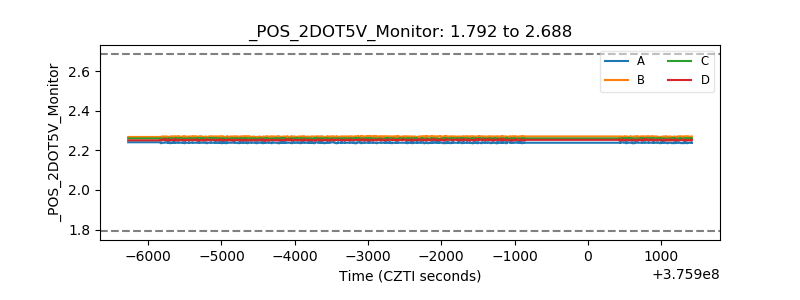

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

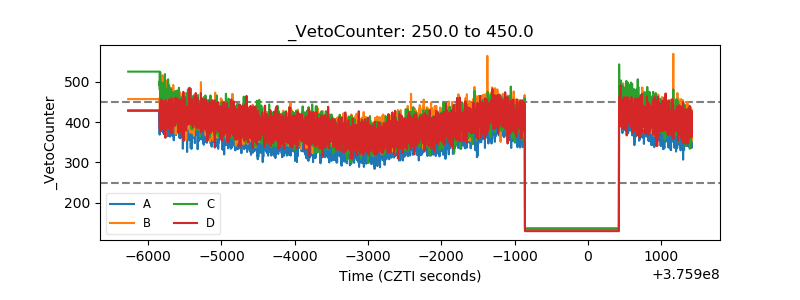

| Veto Counter |  |
