| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T02_9000004788_33379cztM0_level2.evt | modeM0/AS1A10_064T02_9000004788_33379cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,145,600 | 78,019,200 |
| Size | 431.2 MB | 74.4 MB |
| Events in quadrant A | 2,691,858 | 509,476 |
| Events in quadrant B | 3,423,943 | 525,930 |
| Events in quadrant C | 2,955,432 | 502,094 |
| Events in quadrant D | 4,275,377 | 466,961 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11077 | 2 |
| B | 0 | 13411 | 1 |
| C | 0 | 11758 | 1 |
| D | 0 | 16251 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5103 | 12 | 0.235156% |
| B | 5103 | 294 | 5.761317% |
| C | 5103 | 49 | 0.960219% |
| D | 5103 | 242 | 4.742308% |

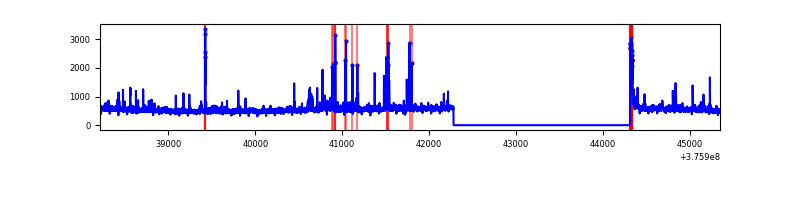

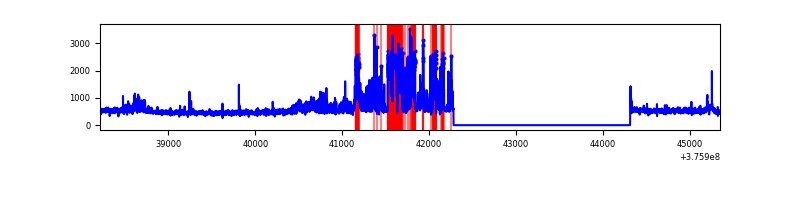

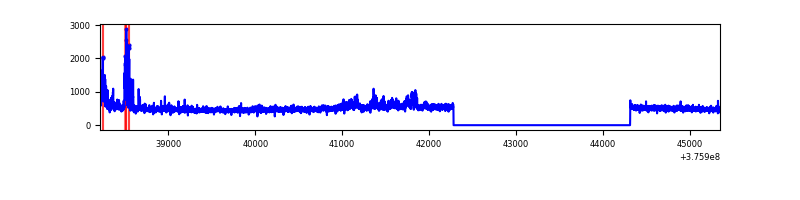

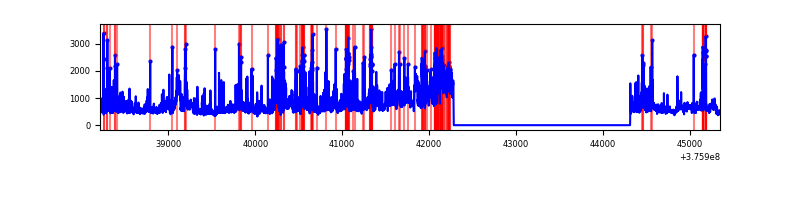

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7136 | 5104 | 8 | 8 | 0.11% | 0.16% |  |
| B | 7136 | 5104 | 197 | 197 | 2.76% | 3.86% |  |
| C | 7136 | 5104 | 40 | 40 | 0.56% | 0.78% |  |
| D | 7136 | 5104 | 178 | 178 | 2.49% | 3.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 198602 | 1550.67 | 637 | 627 | 127.7 |
| A | 12 | 194 | 33404 | 256.73 | 637 | 627 | 127.7 |
| A | 13 | 254 | 7367 | 52.79 | 637 | 627 | 127.7 |
| B | 5 | 172 | 673788 | 5750.46 | 621 | 608 | 117.1 |
| B | 0 | 219 | 267554 | 2280.32 | 621 | 608 | 117.1 |
| B | 5 | 200 | 18844 | 155.78 | 621 | 608 | 117.1 |
| C | 15 | 214 | 221452 | 1575.68 | 614 | 620 | 140.1 |
| C | 15 | 208 | 128461 | 912.17 | 614 | 620 | 140.1 |
| C | 0 | 10 | 82207 | 582.14 | 614 | 620 | 140.1 |
| D | 8 | 195 | 613944 | 4163.52 | 605 | 589 | 147.3 |
| D | 2 | 250 | 382364 | 2591.53 | 605 | 589 | 147.3 |
| D | 1 | 52 | 375333 | 2543.8 | 605 | 589 | 147.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

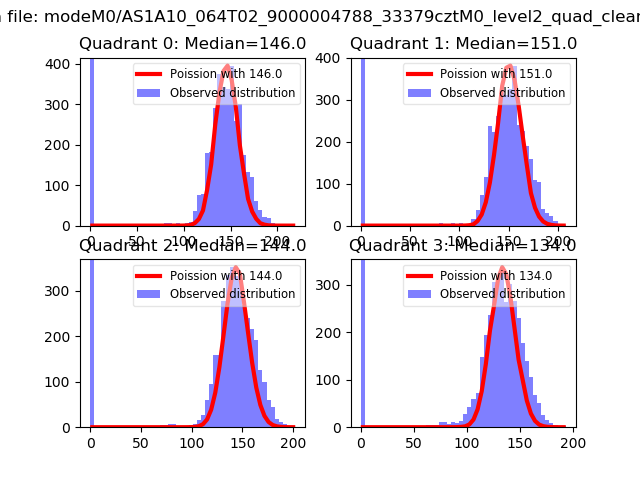

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

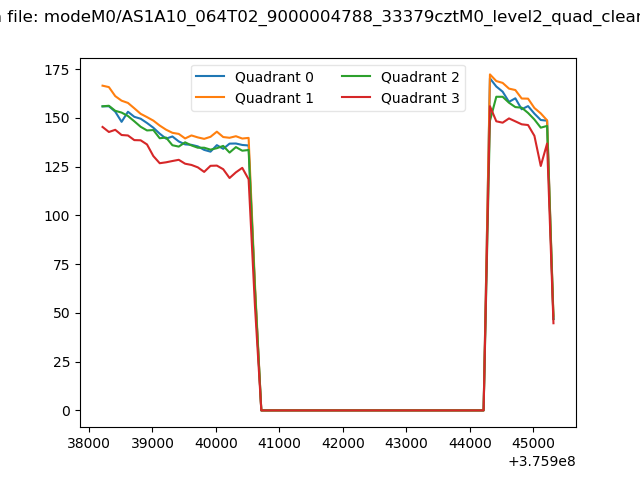

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

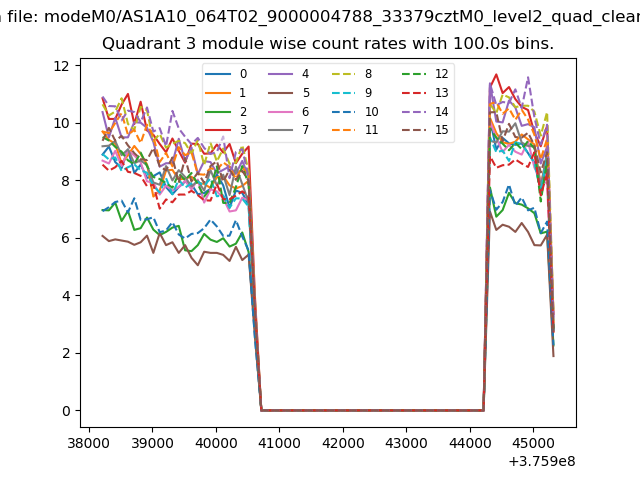

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

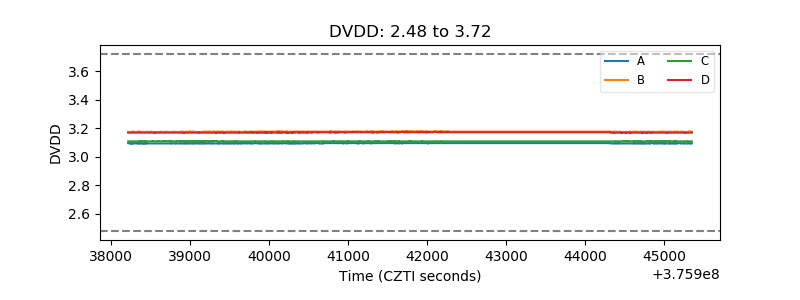

| D_VDD |  |

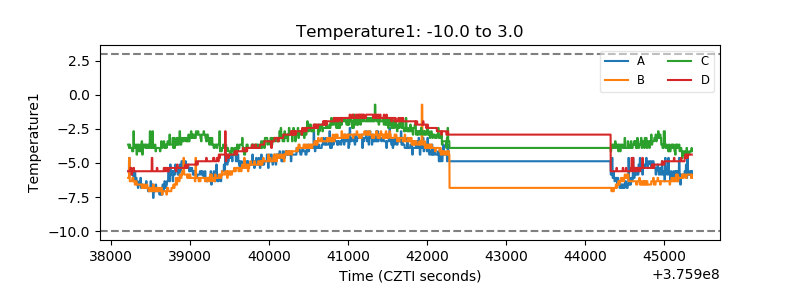

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

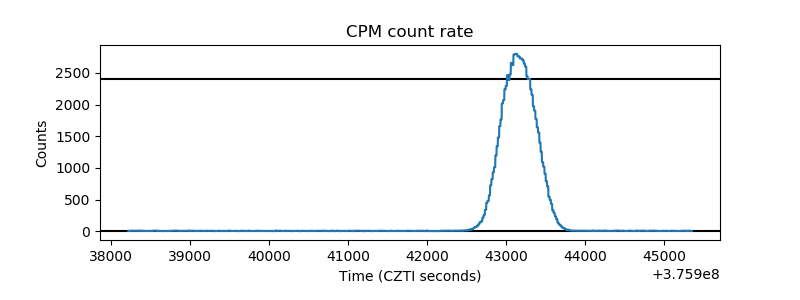

| _CPM_Rate |  |

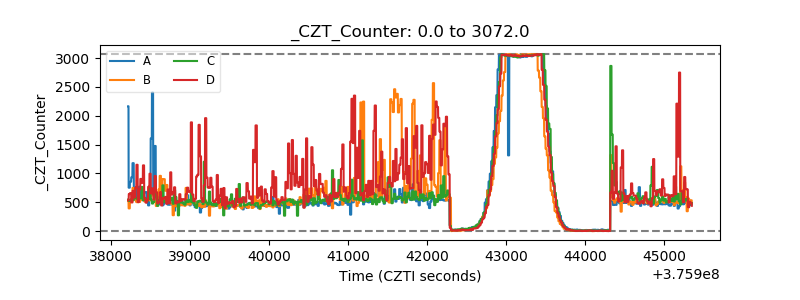

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

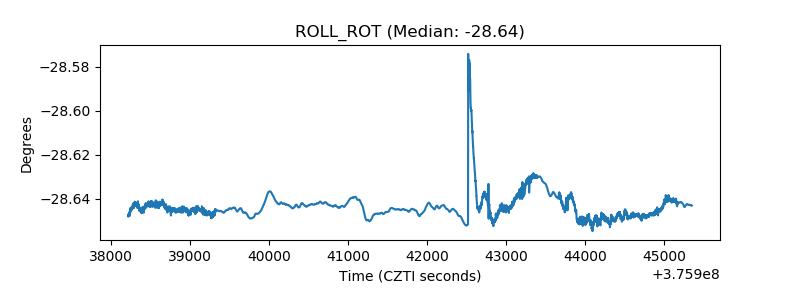

| _ROLL_ROT |  |

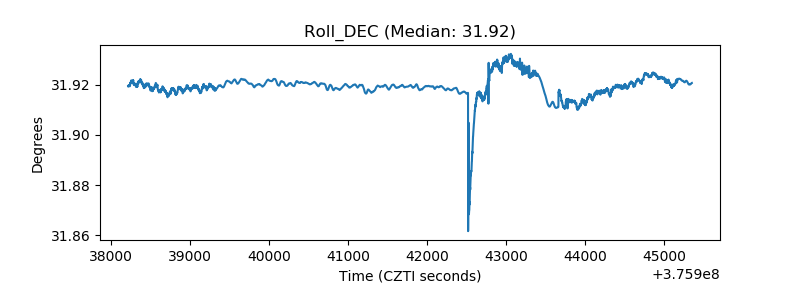

| _Roll_DEC |  |

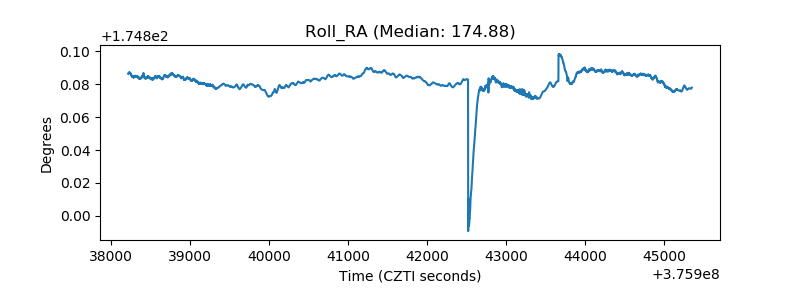

| _Roll_RA |  |

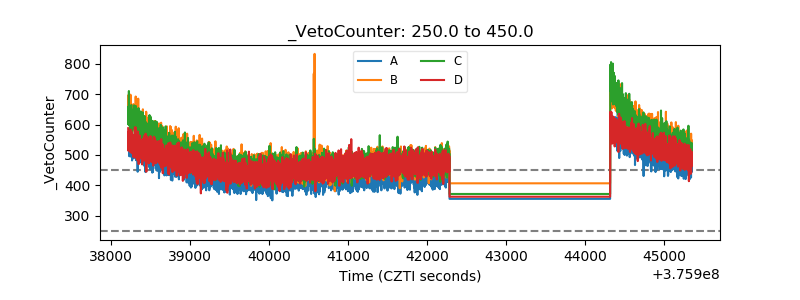

| Veto Counter |  |
