| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T02_9000004788_33397cztM0_level2.evt | modeM0/AS1A10_064T02_9000004788_33397cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,568,320 | 61,646,400 |
| Size | 501.2 MB | 58.8 MB |
| Events in quadrant A | 2,420,786 | 390,218 |
| Events in quadrant B | 4,596,852 | 385,457 |
| Events in quadrant C | 2,878,914 | 382,882 |
| Events in quadrant D | 5,669,521 | 344,675 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10397 | 3 |
| B | 0 | 17059 | 2 |
| C | 0 | 11399 | 2 |
| D | 0 | 20554 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5180 | 4 | 0.077220% |
| B | 5180 | 633 | 12.220077% |
| C | 5180 | 62 | 1.196911% |
| D | 5180 | 461 | 8.899614% |

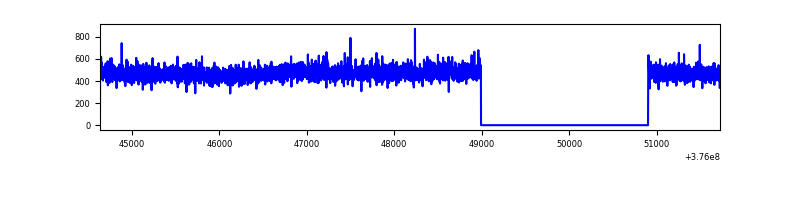

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7092 | 5181 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7091 | 5180 | 465 | 465 | 6.56% | 8.98% |  |
| C | 7092 | 5181 | 51 | 51 | 0.72% | 0.98% |  |
| D | 7092 | 5181 | 382 | 382 | 5.39% | 7.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8939 | 66.56 | 624 | 612 | 125.1 |
| A | 13 | 6 | 7106 | 51.9 | 624 | 612 | 125.1 |
| A | 3 | 137 | 5916 | 42.39 | 624 | 612 | 125.1 |
| B | 5 | 172 | 1315750 | 11543.79 | 589 | 574 | 113.9 |
| B | 12 | 1 | 223803 | 1959.36 | 589 | 574 | 113.9 |
| B | 0 | 219 | 221879 | 1942.48 | 589 | 574 | 113.9 |
| C | 15 | 214 | 227098 | 1630.56 | 601 | 606 | 138.9 |
| C | 0 | 10 | 207996 | 1493.04 | 601 | 606 | 138.9 |
| C | 15 | 159 | 50491 | 359.13 | 601 | 606 | 138.9 |
| D | 8 | 195 | 1747266 | 12071.59 | 588 | 571 | 144.7 |
| D | 2 | 250 | 365907 | 2524.88 | 588 | 571 | 144.7 |
| D | 1 | 52 | 325698 | 2246.99 | 588 | 571 | 144.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

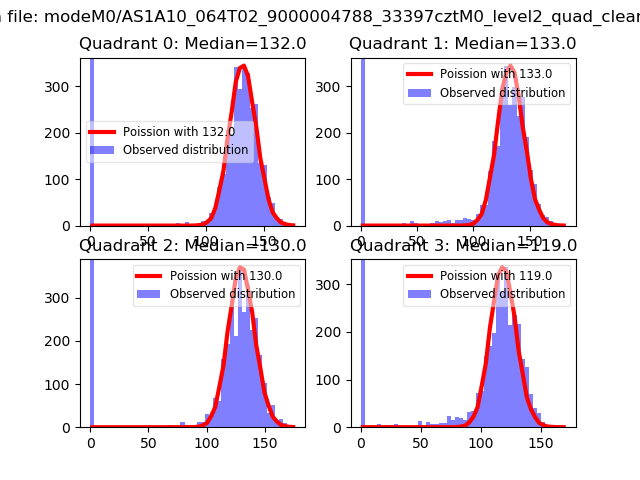

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

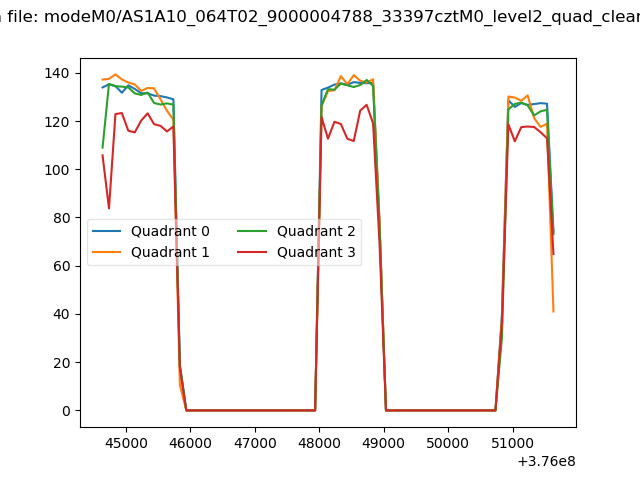

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

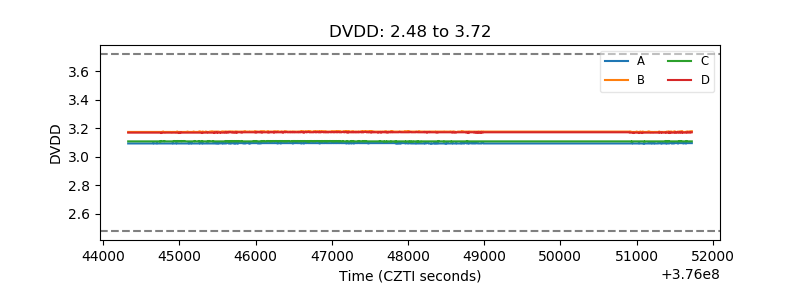

| D_VDD |  |
| Temperature 1 |  |

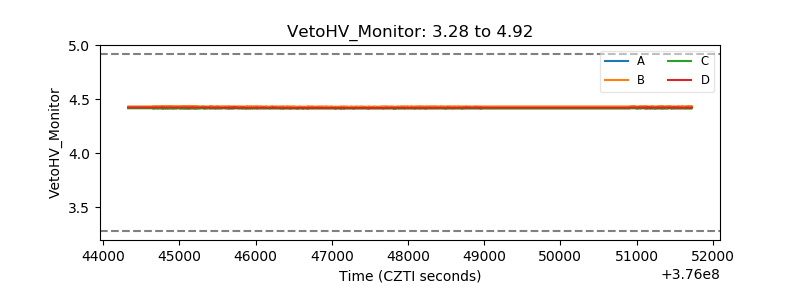

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

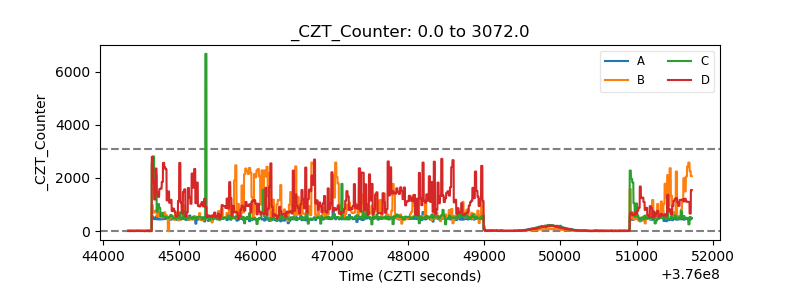

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

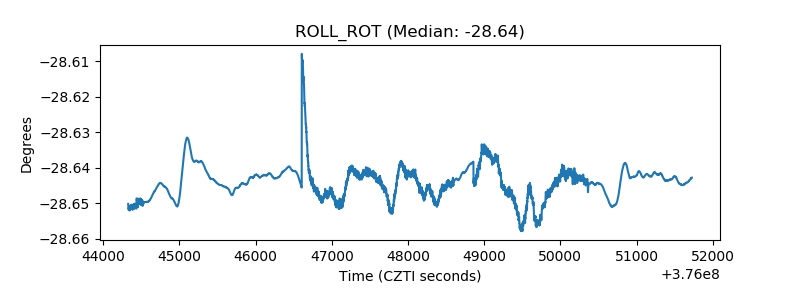

| _ROLL_ROT |  |
| _Roll_DEC |  |

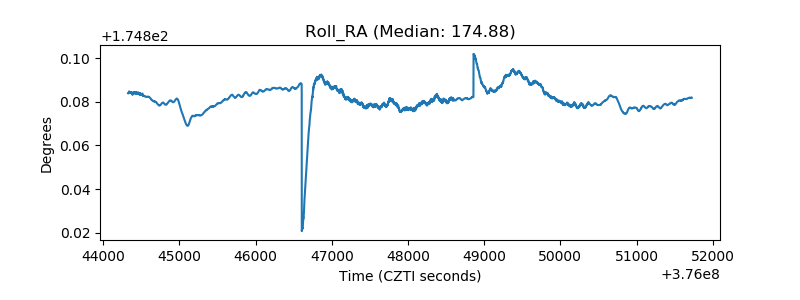

| _Roll_RA |  |
| Veto Counter |  |
