| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000004790_33402cztM0_level2.evt | modeM0/AS1C07_001T03_9000004790_33402cztM0_level2_quad_clean.evt |
| Size (bytes) | 770,100,480 | 126,063,360 |
| Size | 734.4 MB | 120.2 MB |
| Events in quadrant A | 4,048,520 | 831,086 |
| Events in quadrant B | 6,516,727 | 783,175 |
| Events in quadrant C | 4,489,714 | 813,850 |
| Events in quadrant D | 7,649,003 | 754,823 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 186 | 0 |
| B | 0 | 186 | 0 |
| C | 0 | 186 | 0 |
| D | 0 | 186 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18364 | 2 |
| B | 0 | 25311 | 1 |
| C | 0 | 18819 | 1 |
| D | 0 | 29166 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9143 | 7 | 0.076561% |
| B | 9143 | 851 | 9.307667% |
| C | 9143 | 24 | 0.262496% |
| D | 9143 | 425 | 4.648365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10486 | 9144 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10486 | 9144 | 685 | 685 | 6.53% | 7.49% |  |
| C | 10486 | 9144 | 15 | 15 | 0.14% | 0.16% |  |
| D | 10486 | 9144 | 403 | 403 | 3.84% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14366 | 64.08 | 1045 | 1025 | 208.2 |
| A | 13 | 6 | 12135 | 53.36 | 1045 | 1025 | 208.2 |
| A | 3 | 137 | 10578 | 45.88 | 1045 | 1025 | 208.2 |
| B | 5 | 172 | 2283108 | 12100.82 | 996 | 969 | 188.6 |
| B | 0 | 190 | 68139 | 356.16 | 996 | 969 | 188.6 |
| B | 0 | 219 | 60524 | 315.78 | 996 | 969 | 188.6 |
| C | 15 | 214 | 387647 | 1649.57 | 1013 | 1019 | 234.4 |
| C | 0 | 10 | 95710 | 404.0 | 1013 | 1019 | 234.4 |
| C | 15 | 159 | 18356 | 73.97 | 1013 | 1019 | 234.4 |
| D | 8 | 195 | 1850655 | 7582.89 | 994 | 964 | 243.9 |
| D | 12 | 218 | 391428 | 1600.72 | 994 | 964 | 243.9 |
| D | 2 | 250 | 378311 | 1546.95 | 994 | 964 | 243.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

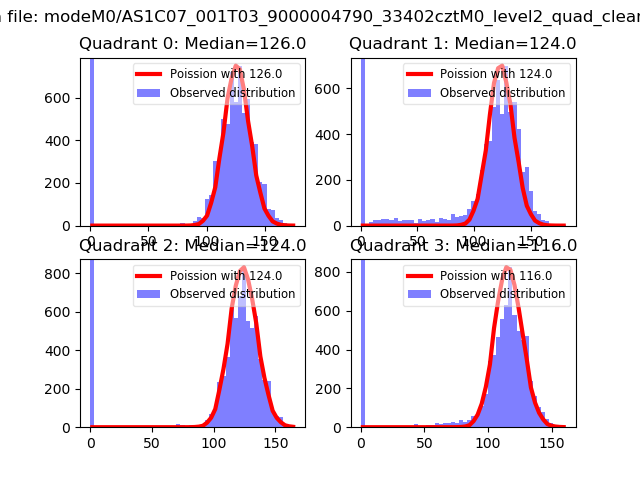

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

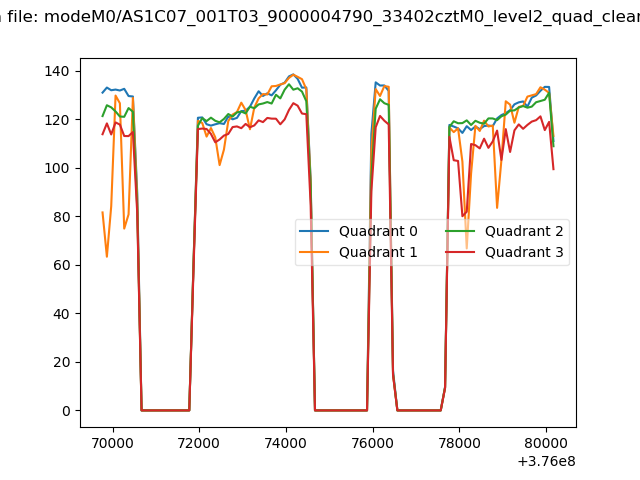

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
