| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000004790_33406cztM0_level2.evt | modeM0/AS1C07_001T03_9000004790_33406cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,802,560 | 94,993,920 |
| Size | 461.4 MB | 90.6 MB |
| Events in quadrant A | 2,488,250 | 646,973 |
| Events in quadrant B | 3,594,195 | 635,104 |
| Events in quadrant C | 2,864,026 | 638,047 |
| Events in quadrant D | 5,333,254 | 572,814 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11022 | 3 |
| B | 0 | 14310 | 2 |
| C | 0 | 11811 | 2 |
| D | 0 | 19645 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5481 | 6 | 0.109469% |
| B | 5481 | 295 | 5.382230% |
| C | 5481 | 38 | 0.693304% |
| D | 5481 | 806 | 14.705346% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7304 | 5482 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7304 | 5482 | 220 | 220 | 3.01% | 4.01% |  |
| C | 7304 | 5482 | 24 | 24 | 0.33% | 0.44% |  |
| D | 7304 | 5482 | 750 | 750 | 10.27% | 13.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9004 | 65.84 | 641 | 630 | 127.2 |
| A | 13 | 6 | 7689 | 55.5 | 641 | 630 | 127.2 |
| A | 3 | 137 | 6003 | 42.24 | 641 | 630 | 127.2 |
| B | 5 | 172 | 938863 | 7847.13 | 628 | 612 | 119.6 |
| B | 0 | 189 | 58023 | 480.16 | 628 | 612 | 119.6 |
| B | 5 | 255 | 29328 | 240.17 | 628 | 612 | 119.6 |
| C | 15 | 214 | 237504 | 1665.82 | 620 | 626 | 142.2 |
| C | 0 | 10 | 117394 | 821.16 | 620 | 626 | 142.2 |
| C | 10 | 187 | 41748 | 289.19 | 620 | 626 | 142.2 |
| D | 2 | 250 | 1958271 | 14002.38 | 569 | 553 | 139.8 |
| D | 8 | 195 | 697737 | 4986.54 | 569 | 553 | 139.8 |
| D | 12 | 218 | 171783 | 1224.71 | 569 | 553 | 139.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

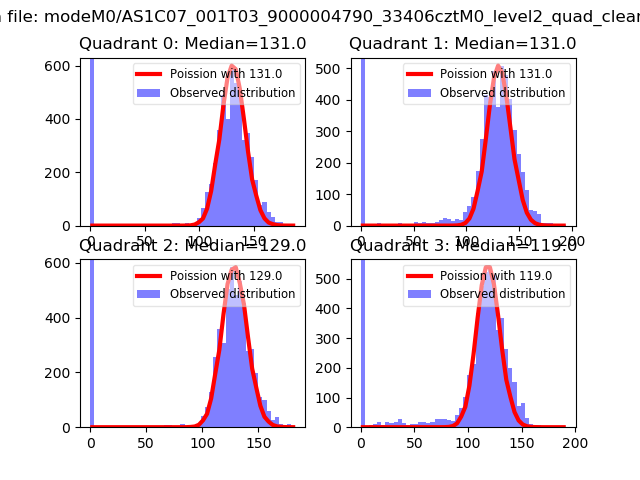

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

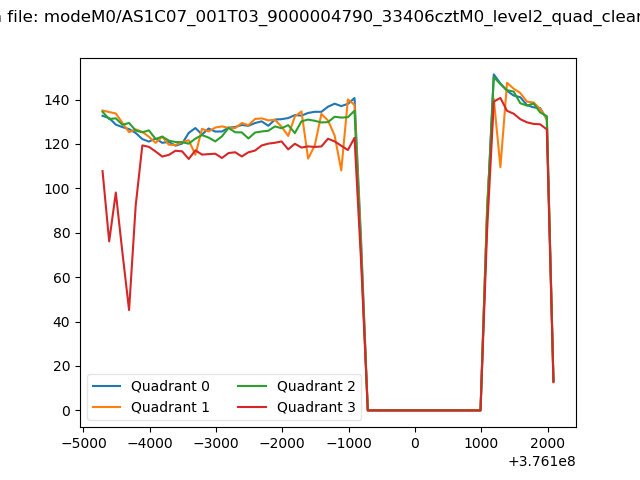

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

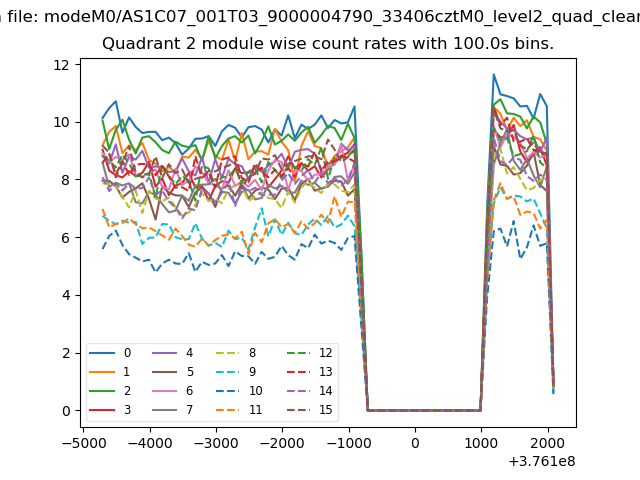

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

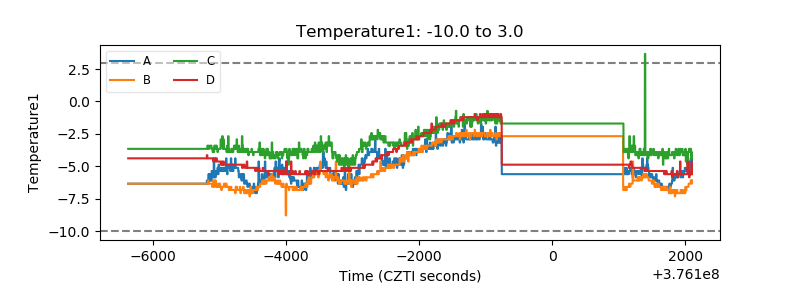

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

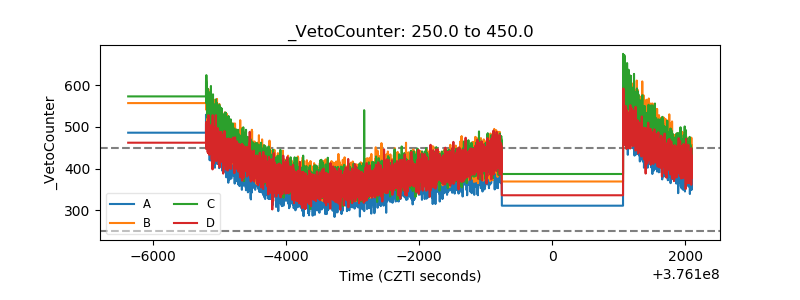

| Veto Counter |  |
