| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000004790_33408cztM0_level2.evt | modeM0/AS1C07_001T03_9000004790_33408cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,238,080 | 104,152,320 |
| Size | 383.6 MB | 99.3 MB |
| Events in quadrant A | 2,396,346 | 724,754 |
| Events in quadrant B | 2,780,574 | 733,804 |
| Events in quadrant C | 2,844,117 | 692,891 |
| Events in quadrant D | 3,817,406 | 648,808 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10165 | 3 |
| B | 0 | 11331 | 2 |
| C | 0 | 11390 | 2 |
| D | 0 | 14800 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5047 | 4 | 0.079255% |
| B | 5047 | 98 | 1.941748% |
| C | 5047 | 64 | 1.268080% |
| D | 5047 | 172 | 3.407965% |

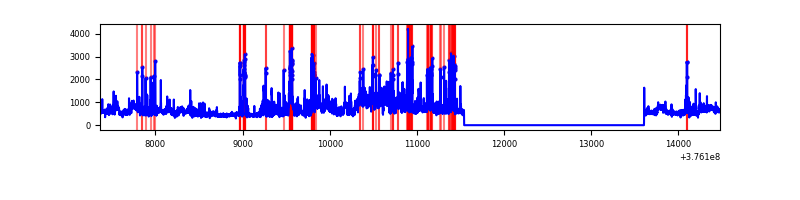

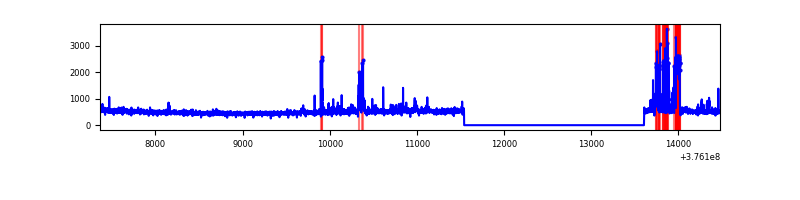

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7111 | 5048 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7111 | 5048 | 73 | 73 | 1.03% | 1.45% |  |
| C | 7111 | 5048 | 55 | 55 | 0.77% | 1.09% |  |
| D | 7111 | 5048 | 147 | 147 | 2.07% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8808 | 67.12 | 618 | 609 | 122.2 |
| A | 3 | 137 | 5584 | 40.72 | 618 | 609 | 122.2 |
| A | 0 | 226 | 5298 | 38.38 | 618 | 609 | 122.2 |
| B | 5 | 172 | 278164 | 2427.46 | 610 | 595 | 114.3 |
| B | 0 | 213 | 35152 | 302.21 | 610 | 595 | 114.3 |
| B | 5 | 255 | 27419 | 234.58 | 610 | 595 | 114.3 |
| C | 15 | 214 | 219740 | 1655.79 | 581 | 586 | 132.4 |
| C | 0 | 10 | 191519 | 1442.57 | 581 | 586 | 132.4 |
| C | 14 | 254 | 136223 | 1024.79 | 581 | 586 | 132.4 |
| D | 8 | 195 | 579419 | 4131.06 | 576 | 560 | 140.1 |
| D | 12 | 218 | 275859 | 1964.69 | 576 | 560 | 140.1 |
| D | 2 | 120 | 221187 | 1574.52 | 576 | 560 | 140.1 |

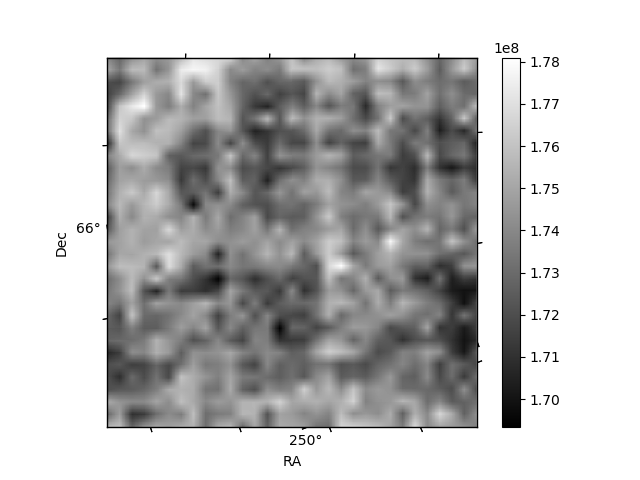

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

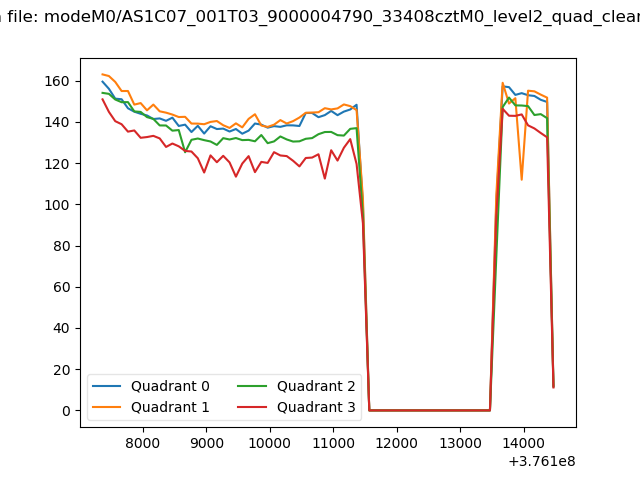

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

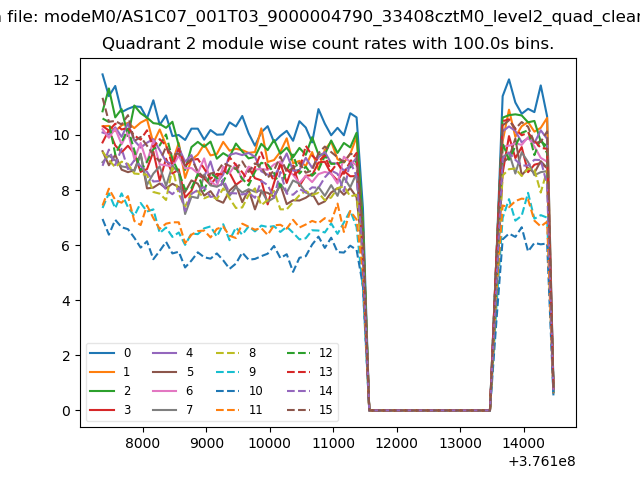

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

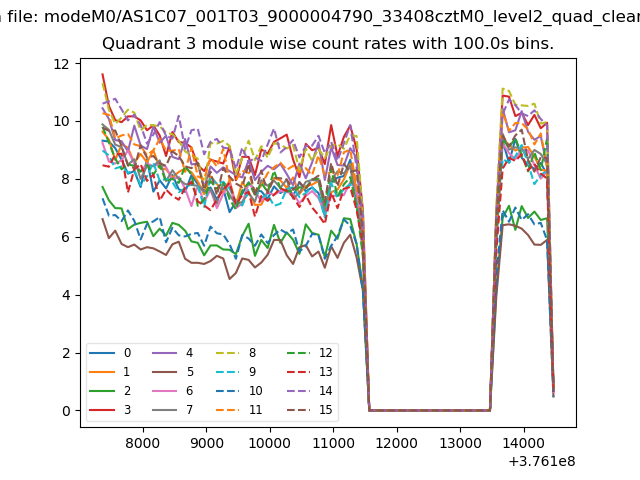

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

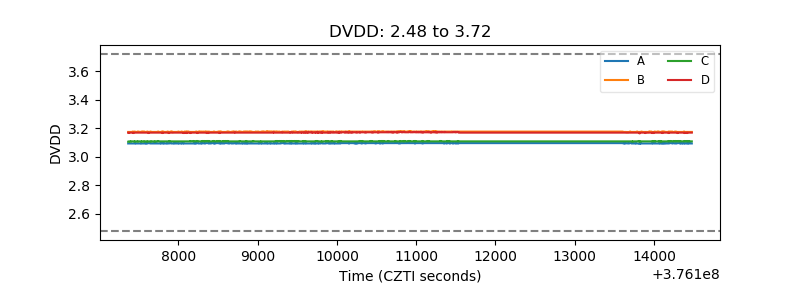

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

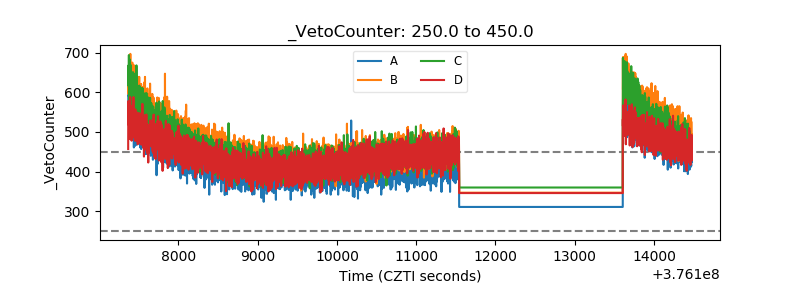

| Veto Counter |  |
