| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000004790_33413cztM0_level2.evt | modeM0/AS1C07_001T03_9000004790_33413cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,607,360 | 82,137,600 |
| Size | 537.5 MB | 78.3 MB |
| Events in quadrant A | 2,524,827 | 560,989 |
| Events in quadrant B | 4,691,379 | 525,728 |
| Events in quadrant C | 2,892,123 | 536,972 |
| Events in quadrant D | 6,577,037 | 467,076 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11366 | 3 |
| B | 0 | 17573 | 2 |
| C | 0 | 11917 | 2 |
| D | 0 | 23557 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5670 | 6 | 0.105820% |
| B | 5670 | 595 | 10.493827% |
| C | 5670 | 33 | 0.582011% |
| D | 5670 | 840 | 14.814815% |

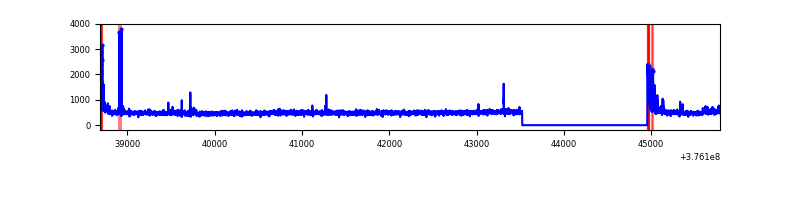

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 5671 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7103 | 5671 | 469 | 469 | 6.60% | 8.27% |  |
| C | 7103 | 5671 | 23 | 23 | 0.32% | 0.41% |  |
| D | 7103 | 5671 | 745 | 745 | 10.49% | 13.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9979 | 71.3 | 651 | 639 | 131.0 |
| A | 13 | 6 | 8666 | 61.27 | 651 | 639 | 131.0 |
| A | 3 | 137 | 6303 | 43.24 | 651 | 639 | 131.0 |
| B | 5 | 172 | 1609935 | 13578.21 | 619 | 603 | 118.5 |
| B | 0 | 213 | 198968 | 1673.64 | 619 | 603 | 118.5 |
| B | 15 | 85 | 145456 | 1222.15 | 619 | 603 | 118.5 |
| C | 15 | 214 | 248404 | 1718.23 | 624 | 628 | 144.2 |
| C | 0 | 10 | 154108 | 1064.32 | 624 | 628 | 144.2 |
| C | 10 | 49 | 18539 | 124.21 | 624 | 628 | 144.2 |
| D | 8 | 195 | 1909385 | 13435.4 | 583 | 567 | 142.1 |
| D | 1 | 52 | 1424753 | 10024.27 | 583 | 567 | 142.1 |
| D | 14 | 173 | 410200 | 2883.24 | 583 | 567 | 142.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

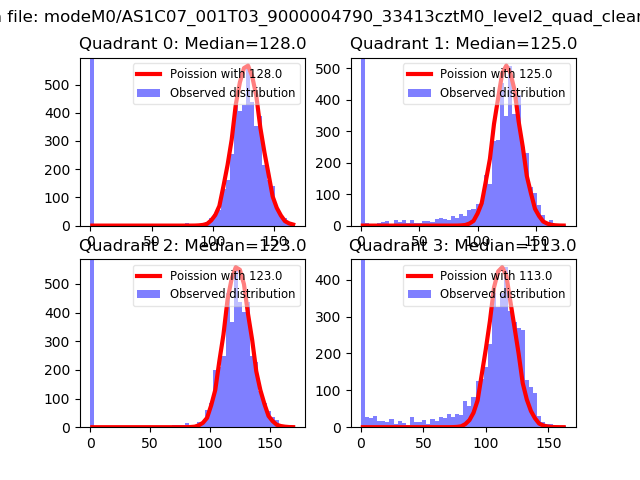

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

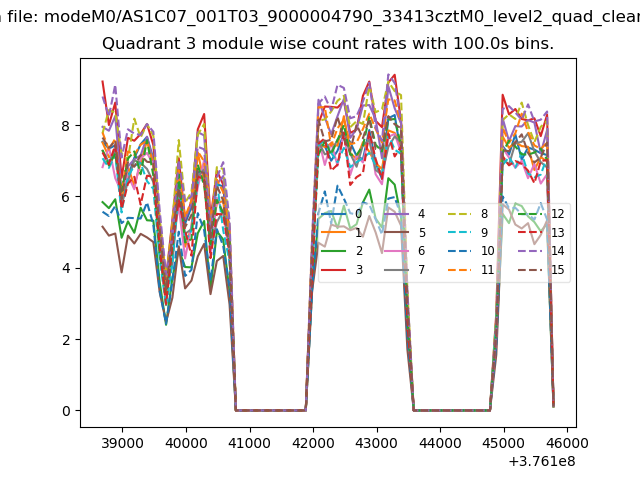

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

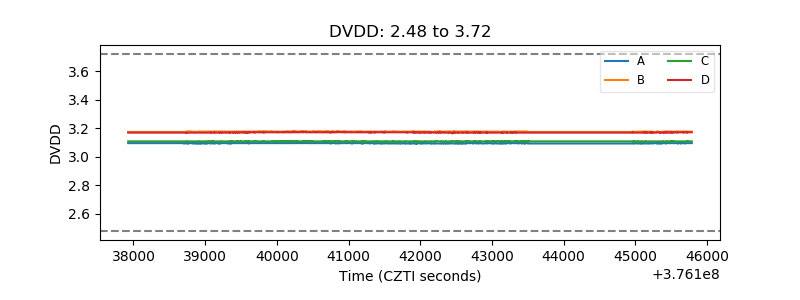

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

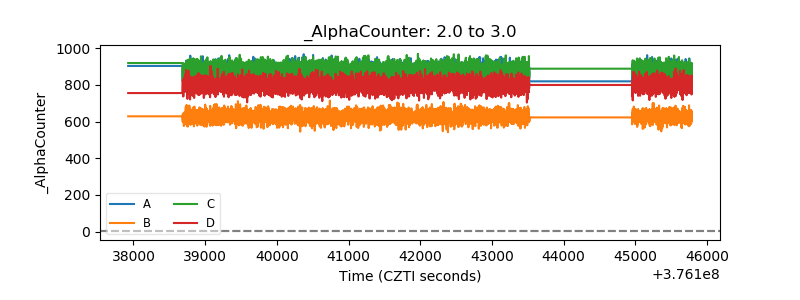

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

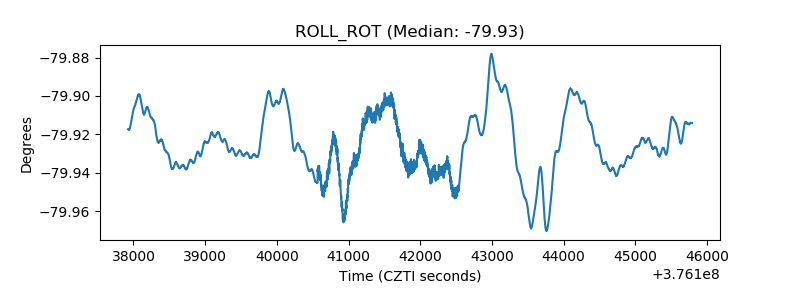

| _ROLL_ROT |  |
| _Roll_DEC |  |

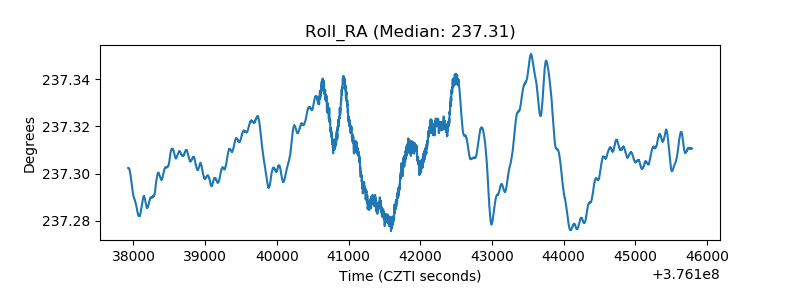

| _Roll_RA |  |
| Veto Counter |  |
