| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000004790_33414cztM0_level2.evt | modeM0/AS1C07_001T03_9000004790_33414cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,815,040 | 86,650,560 |
| Size | 532.9 MB | 82.6 MB |
| Events in quadrant A | 2,651,081 | 589,613 |
| Events in quadrant B | 4,805,938 | 545,989 |
| Events in quadrant C | 3,082,160 | 563,559 |
| Events in quadrant D | 5,984,951 | 512,376 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11859 | 2 |
| B | 0 | 18060 | 1 |
| C | 0 | 12557 | 1 |
| D | 0 | 21860 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5905 | 4 | 0.067739% |
| B | 5905 | 731 | 12.379340% |
| C | 5905 | 28 | 0.474174% |
| D | 5905 | 580 | 9.822185% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7218 | 5906 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7218 | 5906 | 605 | 605 | 8.38% | 10.24% |  |
| C | 7218 | 5906 | 19 | 19 | 0.26% | 0.32% |  |
| D | 7218 | 5906 | 526 | 526 | 7.29% | 8.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 11700 | 80.91 | 681 | 668 | 136.3 |
| A | 13 | 254 | 9532 | 65.01 | 681 | 668 | 136.3 |
| A | 3 | 137 | 6759 | 44.67 | 681 | 668 | 136.3 |
| B | 5 | 172 | 2018781 | 16655.08 | 637 | 620 | 121.2 |
| B | 0 | 213 | 61050 | 498.7 | 637 | 620 | 121.2 |
| B | 5 | 255 | 48778 | 397.43 | 637 | 620 | 121.2 |
| C | 15 | 214 | 255734 | 1682.91 | 653 | 658 | 151.6 |
| C | 0 | 10 | 202199 | 1329.7 | 653 | 658 | 151.6 |
| C | 1 | 23 | 29338 | 189.22 | 653 | 658 | 151.6 |
| D | 8 | 195 | 1572869 | 10228.67 | 630 | 611 | 153.7 |
| D | 1 | 52 | 851077 | 5532.89 | 630 | 611 | 153.7 |
| D | 14 | 173 | 490880 | 3189.55 | 630 | 611 | 153.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

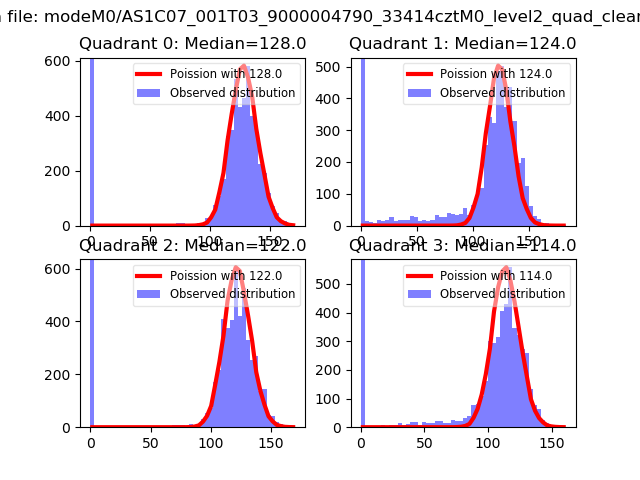

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

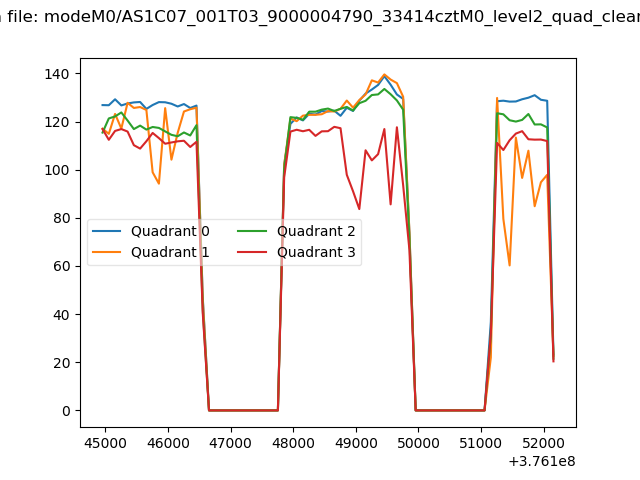

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
