| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T04_9000004792_33418cztM0_level2.evt | modeM0/AS1A11_046T04_9000004792_33418cztM0_level2_quad_clean.evt |
| Size (bytes) | 235,396,800 | 46,232,640 |
| Size | 224.5 MB | 44.1 MB |
| Events in quadrant A | 1,342,558 | 316,759 |
| Events in quadrant B | 2,147,471 | 300,089 |
| Events in quadrant C | 1,285,682 | 315,242 |
| Events in quadrant D | 2,184,920 | 291,133 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5412 | 2 |
| B | 0 | 8049 | 1 |
| C | 0 | 5200 | 1 |
| D | 0 | 8230 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2450 | 4 | 0.163265% |
| B | 2450 | 382 | 15.591837% |
| C | 2450 | 19 | 0.775510% |
| D | 2450 | 152 | 6.204082% |

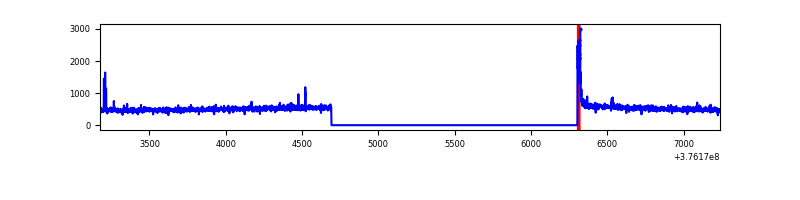

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4062 | 2451 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4062 | 2451 | 266 | 266 | 6.55% | 10.85% |  |
| C | 4062 | 2451 | 11 | 11 | 0.27% | 0.45% |  |
| D | 4062 | 2451 | 114 | 114 | 2.81% | 4.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 180185 | 2923.17 | 299 | 292 | 61.5 |
| A | 13 | 254 | 4338 | 65.75 | 299 | 292 | 61.5 |
| A | 13 | 6 | 3544 | 52.84 | 299 | 292 | 61.5 |
| B | 5 | 172 | 885447 | 16164.97 | 277 | 269 | 54.8 |
| B | 5 | 255 | 83306 | 1516.41 | 277 | 269 | 54.8 |
| B | 0 | 155 | 27118 | 490.31 | 277 | 269 | 54.8 |
| C | 15 | 214 | 106185 | 1572.82 | 287 | 289 | 67.3 |
| C | 0 | 10 | 32339 | 476.02 | 287 | 289 | 67.3 |
| C | 14 | 254 | 10400 | 150.17 | 287 | 289 | 67.3 |
| D | 8 | 195 | 534464 | 7550.61 | 282 | 273 | 70.7 |
| D | 13 | 249 | 119109 | 1679.71 | 282 | 273 | 70.7 |
| D | 10 | 118 | 112896 | 1591.89 | 282 | 273 | 70.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

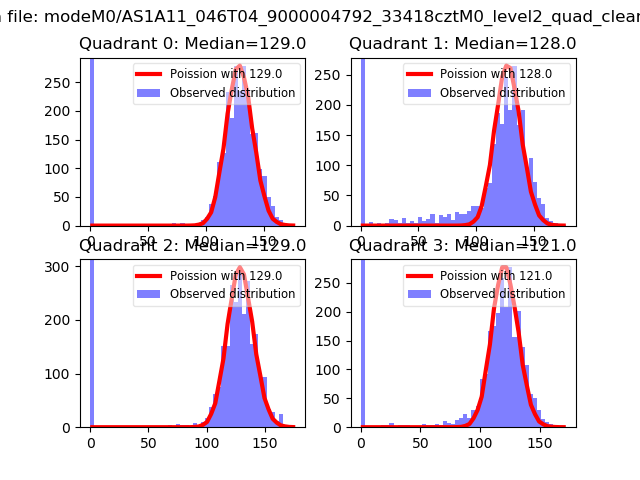

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

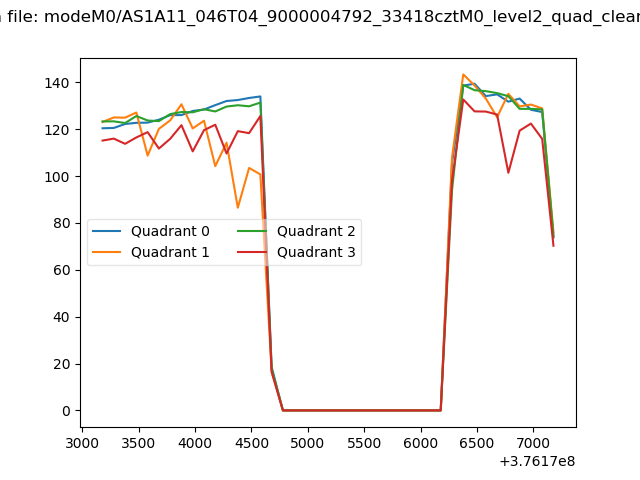

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

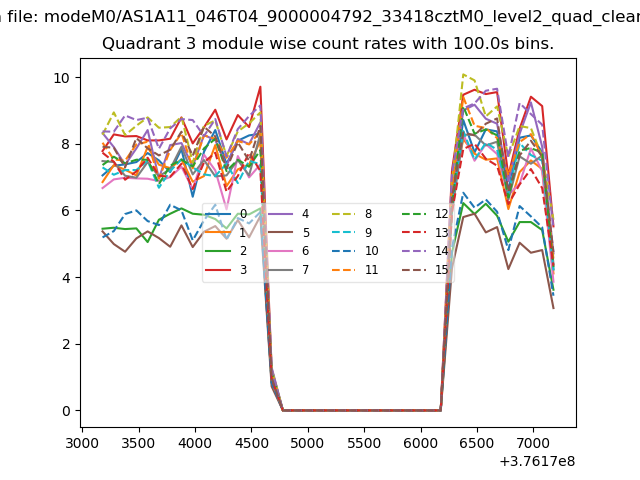

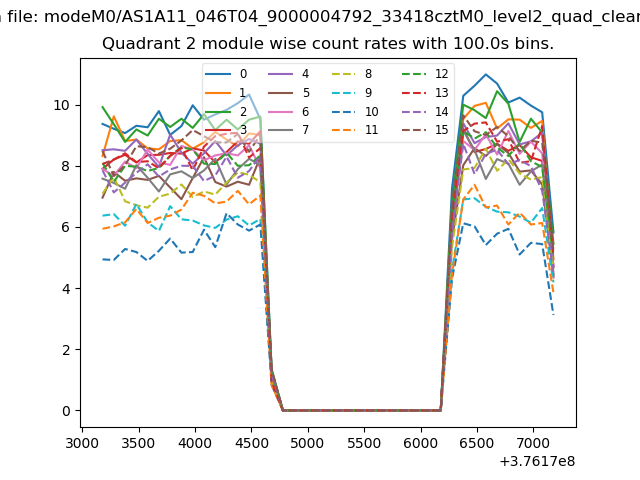

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

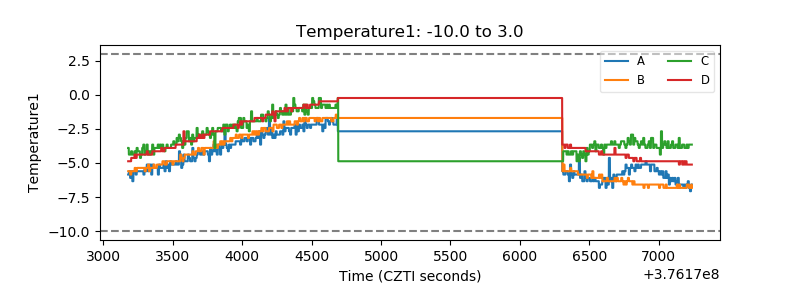

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

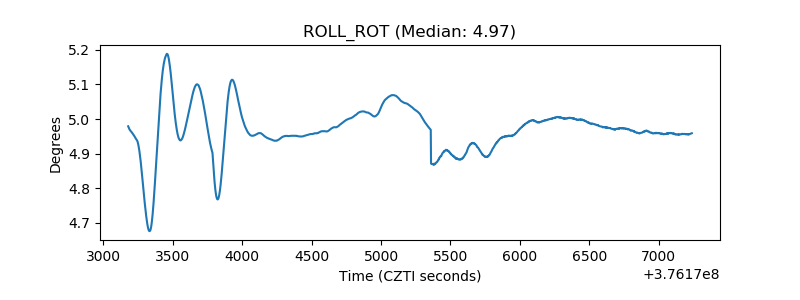

| _ROLL_ROT |  |
| _Roll_DEC |  |

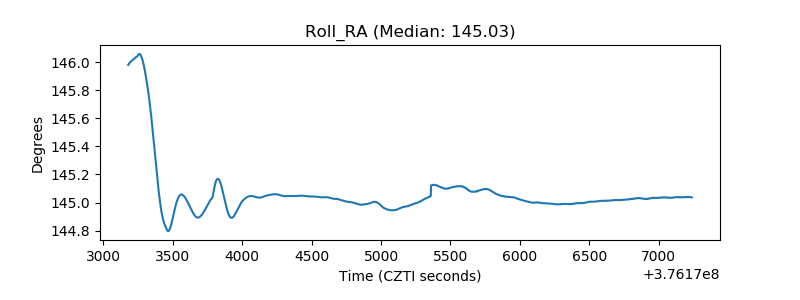

| _Roll_RA |  |
| Veto Counter |  |
