| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T04_9000004792_33420cztM0_level2.evt | modeM0/AS1A11_046T04_9000004792_33420cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,104,960 | 104,218,560 |
| Size | 435.9 MB | 99.4 MB |
| Events in quadrant A | 2,829,235 | 707,268 |
| Events in quadrant B | 3,779,387 | 693,759 |
| Events in quadrant C | 2,811,247 | 704,477 |
| Events in quadrant D | 4,048,326 | 663,971 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11581 | 3 |
| B | 0 | 15011 | 2 |
| C | 0 | 11794 | 2 |
| D | 0 | 15962 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5527 | 7 | 0.126651% |
| B | 5527 | 376 | 6.802967% |
| C | 5527 | 47 | 0.850371% |
| D | 5527 | 174 | 3.148182% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7290 | 5528 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7290 | 5527 | 288 | 288 | 3.95% | 5.21% |  |
| C | 7290 | 5528 | 35 | 35 | 0.48% | 0.63% |  |
| D | 7290 | 5528 | 151 | 151 | 2.07% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 388613 | 3087.99 | 628 | 615 | 125.6 |
| A | 13 | 6 | 10120 | 75.65 | 628 | 615 | 125.6 |
| A | 13 | 254 | 9495 | 70.67 | 628 | 615 | 125.6 |
| B | 5 | 172 | 1074595 | 9302.77 | 610 | 594 | 115.4 |
| B | 5 | 255 | 118765 | 1023.57 | 610 | 594 | 115.4 |
| B | 0 | 155 | 35050 | 298.45 | 610 | 594 | 115.4 |
| C | 15 | 214 | 237671 | 1684.6 | 611 | 616 | 140.7 |
| C | 0 | 10 | 99771 | 704.63 | 611 | 616 | 140.7 |
| C | 14 | 254 | 39811 | 278.53 | 611 | 616 | 140.7 |
| D | 8 | 195 | 880862 | 5950.06 | 599 | 583 | 147.9 |
| D | 13 | 249 | 348006 | 2348.33 | 599 | 583 | 147.9 |
| D | 10 | 118 | 118274 | 795.51 | 599 | 583 | 147.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

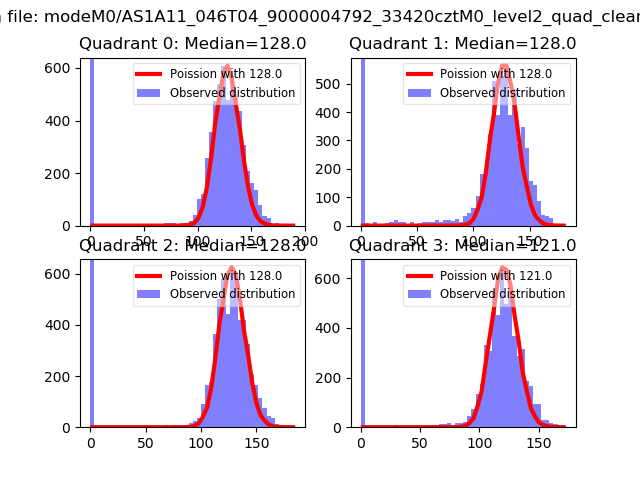

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

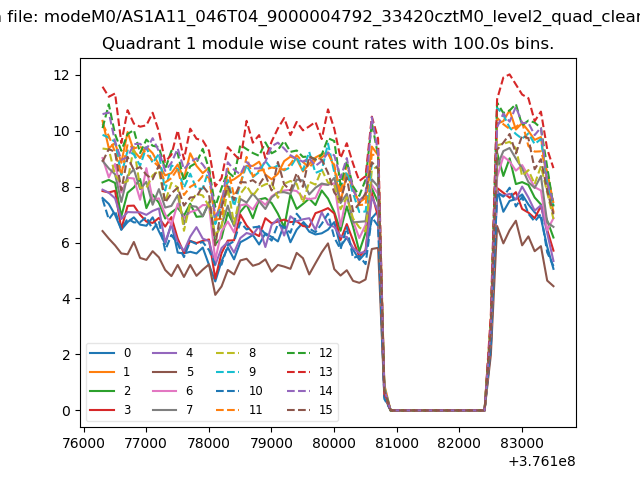

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

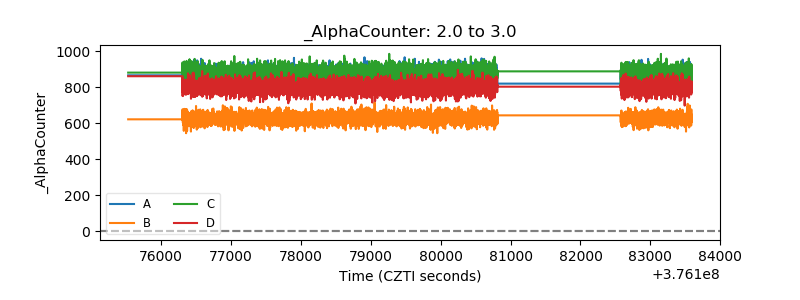

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

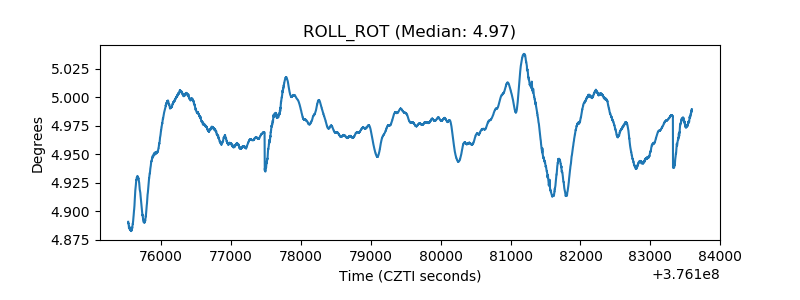

| _ROLL_ROT |  |

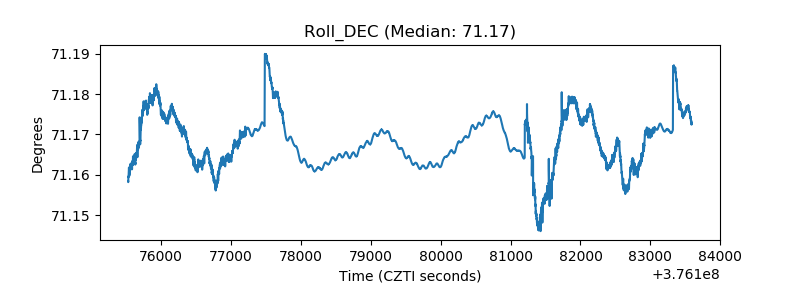

| _Roll_DEC |  |

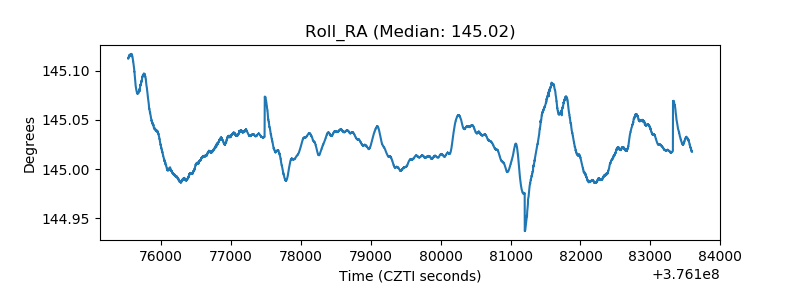

| _Roll_RA |  |
| Veto Counter |  |
