| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T04_9000004792_33422cztM0_level2.evt | modeM0/AS1A11_046T04_9000004792_33422cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,346,880 | 97,836,480 |
| Size | 427.6 MB | 93.3 MB |
| Events in quadrant A | 2,807,006 | 662,401 |
| Events in quadrant B | 3,871,240 | 659,289 |
| Events in quadrant C | 2,900,601 | 652,574 |
| Events in quadrant D | 3,637,813 | 615,721 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11266 | 3 |
| B | 0 | 14976 | 2 |
| C | 0 | 11740 | 2 |
| D | 0 | 14524 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5328 | 10 | 0.187688% |
| B | 5328 | 375 | 7.038288% |
| C | 5328 | 62 | 1.163664% |
| D | 5328 | 90 | 1.689189% |

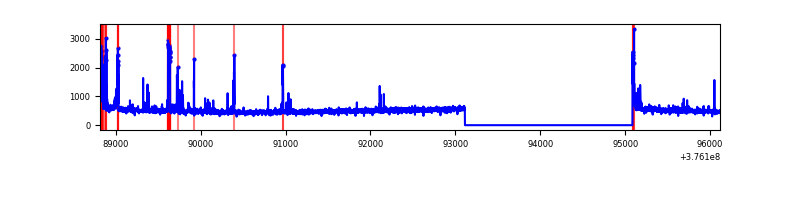

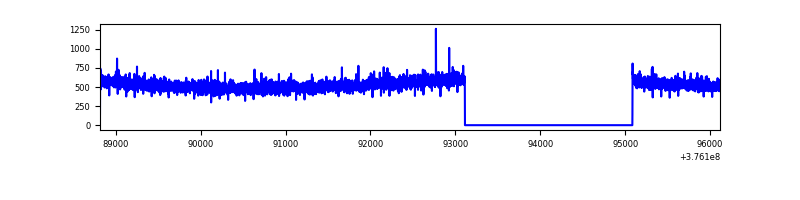

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7301 | 5329 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7301 | 5328 | 284 | 284 | 3.89% | 5.33% |  |
| C | 7301 | 5329 | 59 | 59 | 0.81% | 1.11% |  |
| D | 7301 | 5329 | 67 | 67 | 0.92% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 351986 | 2806.37 | 634 | 623 | 125.2 |
| A | 13 | 254 | 8927 | 66.32 | 634 | 623 | 125.2 |
| A | 13 | 6 | 7226 | 52.74 | 634 | 623 | 125.2 |
| B | 5 | 172 | 1203627 | 10312.45 | 618 | 603 | 116.7 |
| B | 5 | 255 | 88050 | 749.6 | 618 | 603 | 116.7 |
| B | 15 | 85 | 44191 | 373.64 | 618 | 603 | 116.7 |
| C | 15 | 214 | 232562 | 1673.63 | 607 | 611 | 138.6 |
| C | 14 | 254 | 122135 | 876.85 | 607 | 611 | 138.6 |
| C | 0 | 10 | 111483 | 799.99 | 607 | 611 | 138.6 |
| D | 8 | 195 | 785986 | 5361.8 | 600 | 582 | 146.5 |
| D | 2 | 250 | 253653 | 1727.67 | 600 | 582 | 146.5 |
| D | 13 | 249 | 98290 | 667.03 | 600 | 582 | 146.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

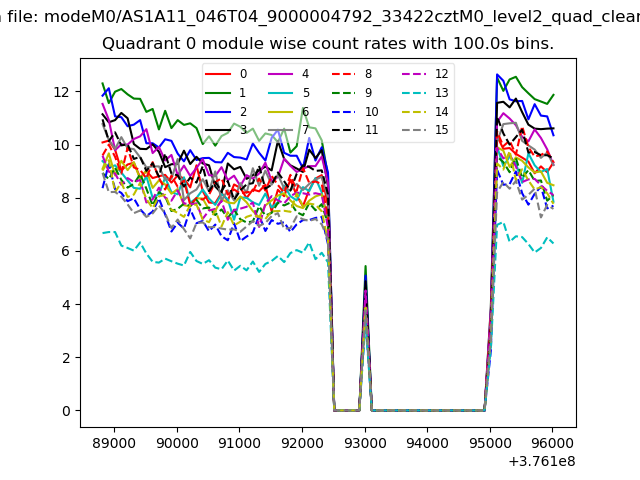

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

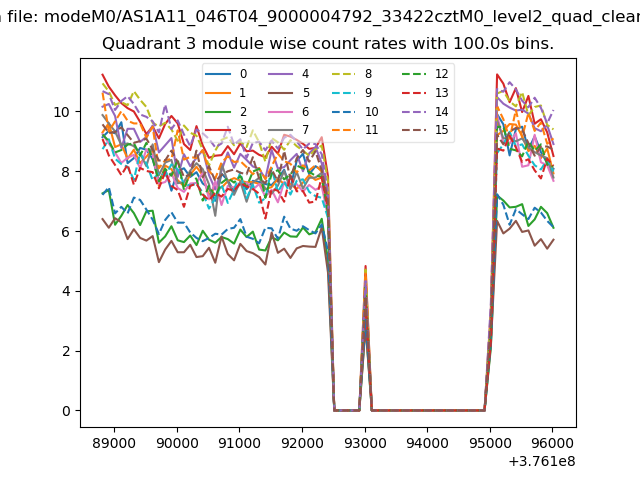

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

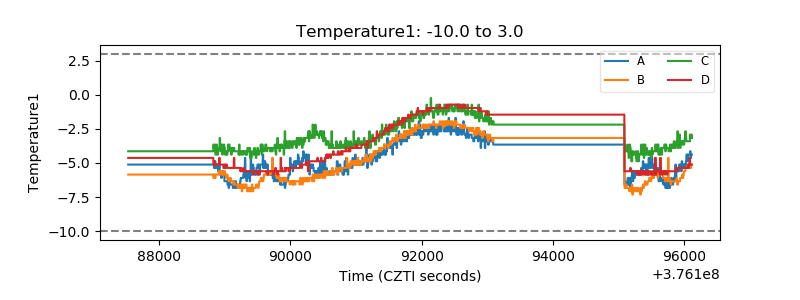

| Temperature 1 |  |

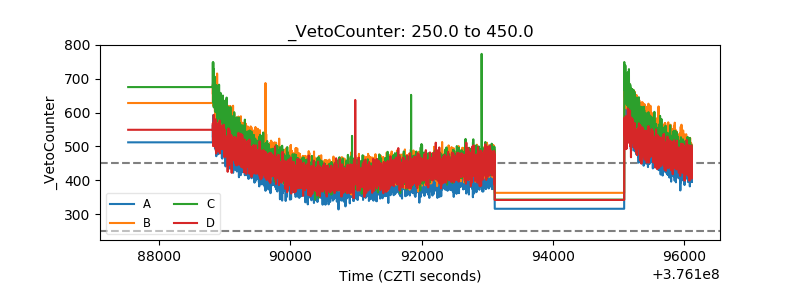

| Veto HV Monitor |  |
| Veto LLD |  |

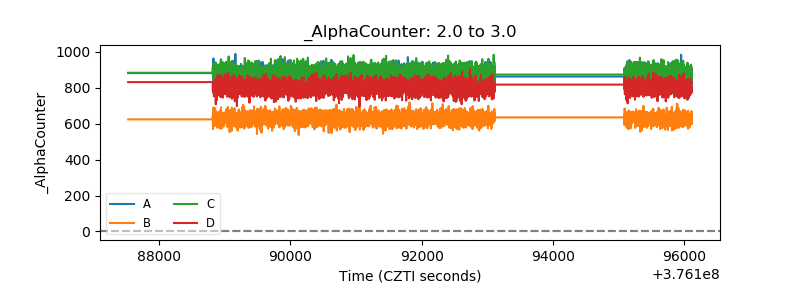

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

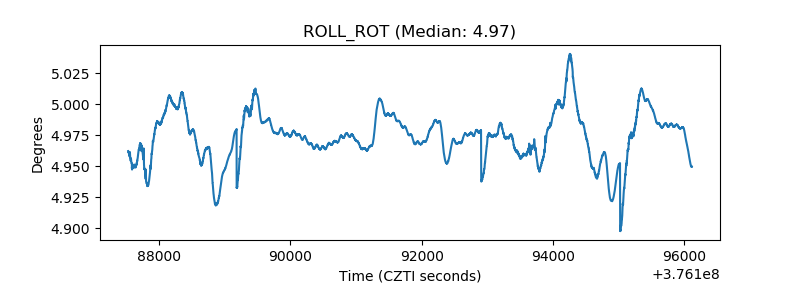

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
