| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T04_9000004792_33428cztM0_level2.evt | modeM0/AS1A11_046T04_9000004792_33428cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,169,280 | 93,188,160 |
| Size | 507.5 MB | 88.9 MB |
| Events in quadrant A | 3,034,987 | 622,543 |
| Events in quadrant B | 3,978,453 | 611,427 |
| Events in quadrant C | 3,233,074 | 603,084 |
| Events in quadrant D | 5,465,870 | 567,664 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12202 | 3 |
| B | 0 | 15655 | 2 |
| C | 0 | 13058 | 2 |
| D | 0 | 20377 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5971 | 6 | 0.100486% |
| B | 5971 | 245 | 4.103165% |
| C | 5971 | 58 | 0.971362% |
| D | 5971 | 222 | 3.717970% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 5972 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7315 | 5972 | 180 | 180 | 2.46% | 3.01% |  |
| C | 7315 | 5972 | 51 | 51 | 0.70% | 0.85% |  |
| D | 7315 | 5972 | 199 | 199 | 2.72% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 379588 | 2754.47 | 684 | 670 | 137.6 |
| A | 13 | 254 | 11241 | 76.84 | 684 | 670 | 137.6 |
| A | 13 | 6 | 6769 | 44.34 | 684 | 670 | 137.6 |
| B | 5 | 172 | 831538 | 6517.17 | 669 | 651 | 127.5 |
| B | 5 | 255 | 153284 | 1197.2 | 669 | 651 | 127.5 |
| B | 0 | 213 | 143538 | 1120.75 | 669 | 651 | 127.5 |
| C | 15 | 214 | 260814 | 1709.53 | 657 | 660 | 152.2 |
| C | 0 | 10 | 205732 | 1347.57 | 657 | 660 | 152.2 |
| C | 1 | 23 | 82015 | 534.6 | 657 | 660 | 152.2 |
| D | 8 | 195 | 1788618 | 11012.57 | 655 | 637 | 162.4 |
| D | 1 | 52 | 245680 | 1509.27 | 655 | 637 | 162.4 |
| D | 15 | 0 | 186183 | 1142.82 | 655 | 637 | 162.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

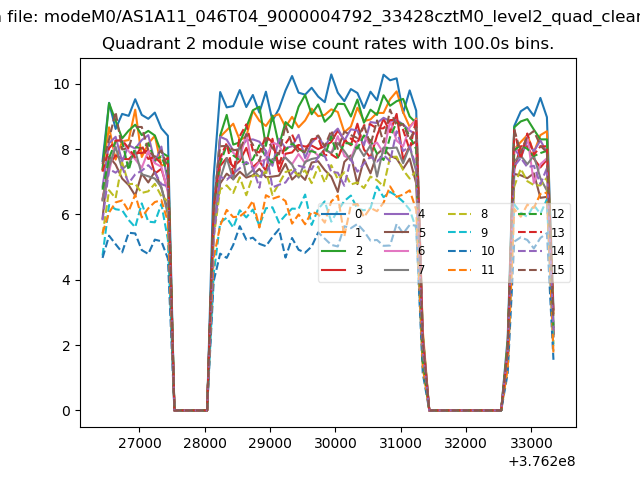

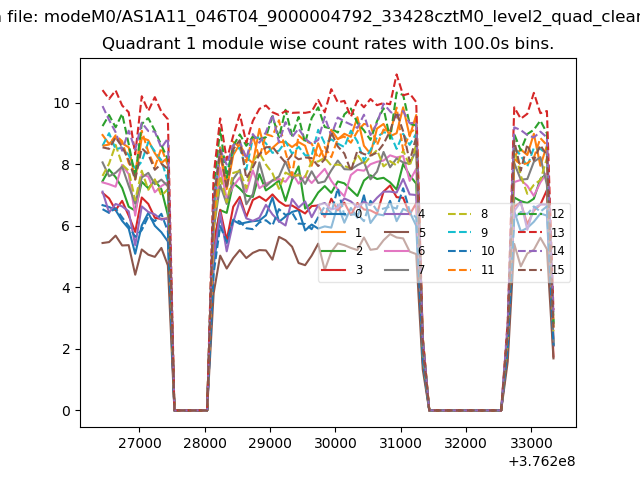

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

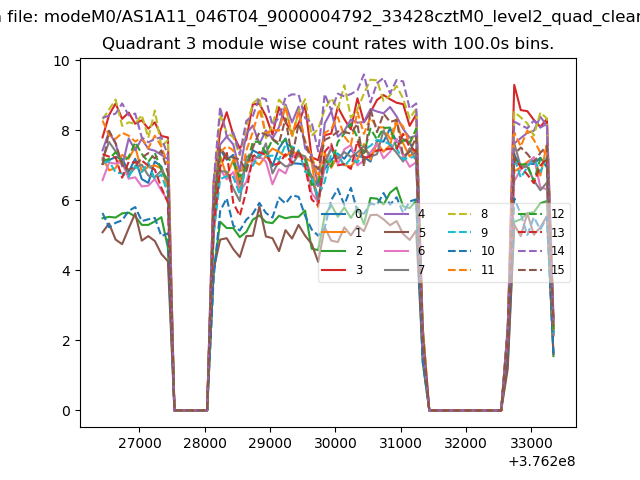

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

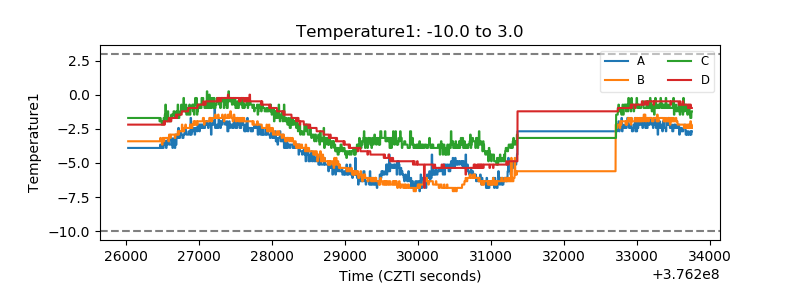

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

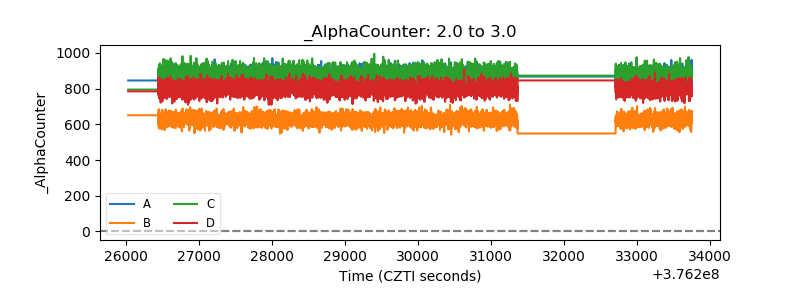

| Alpha Counter |  |
| _CPM_Rate |  |

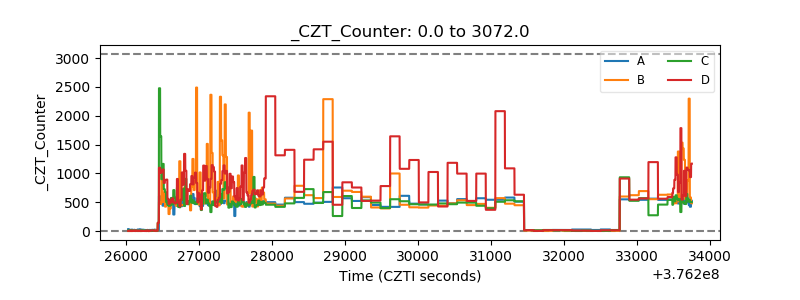

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
