| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T07_9000004798_33447cztM0_level2.evt | modeM0/AS1A11_065T07_9000004798_33447cztM0_level2_quad_clean.evt |
| Size (bytes) | 320,400,000 | 55,658,880 |
| Size | 305.6 MB | 53.1 MB |
| Events in quadrant A | 1,618,101 | 370,048 |
| Events in quadrant B | 2,173,459 | 367,513 |
| Events in quadrant C | 2,509,806 | 360,493 |
| Events in quadrant D | 3,164,591 | 340,242 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7057 | 2 |
| B | 0 | 8744 | 1 |
| C | 0 | 9863 | 1 |
| D | 0 | 11775 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3484 | 3 | 0.086108% |
| B | 3484 | 143 | 4.104478% |
| C | 3484 | 42 | 1.205511% |
| D | 3484 | 206 | 5.912744% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5097 | 3485 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5097 | 3485 | 97 | 97 | 1.90% | 2.78% |  |
| C | 5097 | 3485 | 36 | 36 | 0.71% | 1.03% |  |
| D | 5097 | 3485 | 193 | 193 | 3.79% | 5.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6238 | 68.16 | 416 | 408 | 85.5 |
| A | 13 | 6 | 4898 | 52.5 | 416 | 408 | 85.5 |
| A | 3 | 137 | 3972 | 41.67 | 416 | 408 | 85.5 |
| B | 5 | 172 | 321650 | 4007.7 | 409 | 398 | 80.2 |
| B | 5 | 255 | 90018 | 1118.03 | 409 | 398 | 80.2 |
| B | 0 | 190 | 85816 | 1065.61 | 409 | 398 | 80.2 |
| C | 10 | 49 | 609902 | 6516.46 | 401 | 404 | 93.5 |
| C | 15 | 214 | 149304 | 1591.97 | 401 | 404 | 93.5 |
| C | 1 | 23 | 109567 | 1167.12 | 401 | 404 | 93.5 |
| D | 8 | 195 | 1025843 | 10436.97 | 394 | 383 | 98.3 |
| D | 2 | 250 | 386213 | 3926.92 | 394 | 383 | 98.3 |
| D | 13 | 249 | 132606 | 1345.75 | 394 | 383 | 98.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

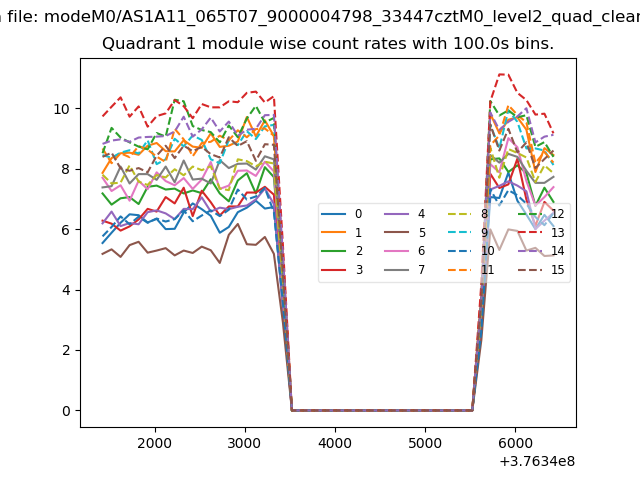

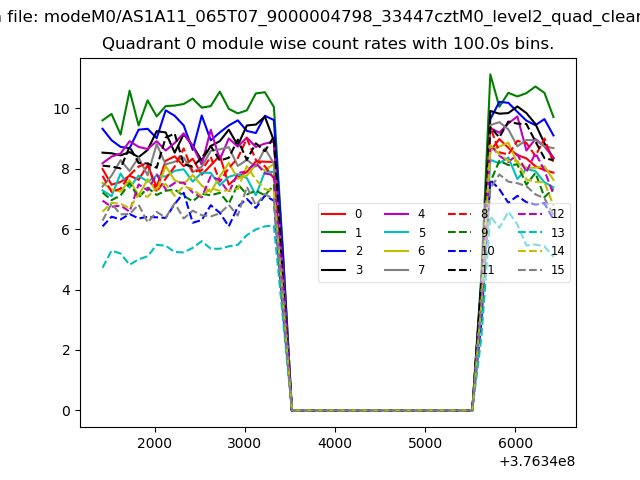

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
