| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T07_9000004798_33453cztM0_level2.evt | modeM0/AS1A11_065T07_9000004798_33453cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,561,920 | 66,608,640 |
| Size | 450.7 MB | 63.5 MB |
| Events in quadrant A | 2,466,350 | 429,572 |
| Events in quadrant B | 3,428,605 | 429,539 |
| Events in quadrant C | 3,418,089 | 409,668 |
| Events in quadrant D | 4,652,361 | 390,051 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10313 | 3 |
| B | 0 | 13394 | 2 |
| C | 0 | 13189 | 2 |
| D | 0 | 17382 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5106 | 5 | 0.097924% |
| B | 5106 | 263 | 5.150803% |
| C | 5106 | 173 | 3.388171% |
| D | 5106 | 202 | 3.956130% |

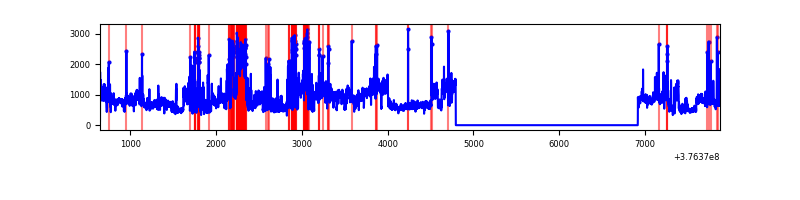

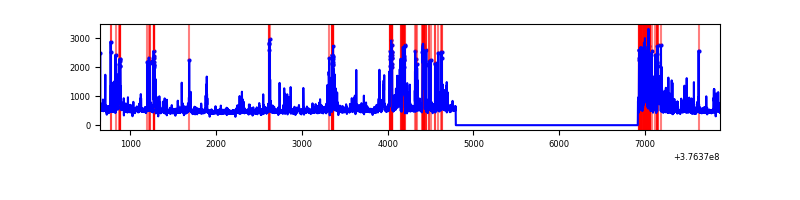

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 5107 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7229 | 5107 | 190 | 190 | 2.63% | 3.72% |  |
| C | 7229 | 5107 | 179 | 179 | 2.48% | 3.50% |  |
| D | 7229 | 5107 | 206 | 206 | 2.85% | 4.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9376 | 68.98 | 634 | 624 | 126.9 |
| A | 13 | 6 | 8732 | 63.91 | 634 | 624 | 126.9 |
| A | 3 | 137 | 5832 | 41.05 | 634 | 624 | 126.9 |
| B | 5 | 172 | 488230 | 4159.0 | 617 | 604 | 117.2 |
| B | 5 | 255 | 362517 | 3086.78 | 617 | 604 | 117.2 |
| B | 5 | 200 | 41501 | 348.81 | 617 | 604 | 117.2 |
| C | 9 | 187 | 624638 | 4513.21 | 601 | 606 | 138.3 |
| C | 15 | 214 | 221124 | 1594.86 | 601 | 606 | 138.3 |
| C | 0 | 10 | 162101 | 1167.99 | 601 | 606 | 138.3 |
| D | 8 | 195 | 1413978 | 9616.13 | 603 | 589 | 147.0 |
| D | 12 | 218 | 391997 | 2662.98 | 603 | 589 | 147.0 |
| D | 2 | 250 | 195422 | 1325.57 | 603 | 589 | 147.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

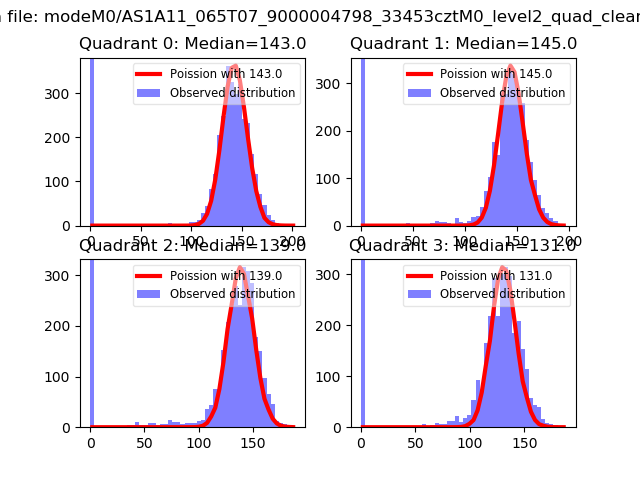

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

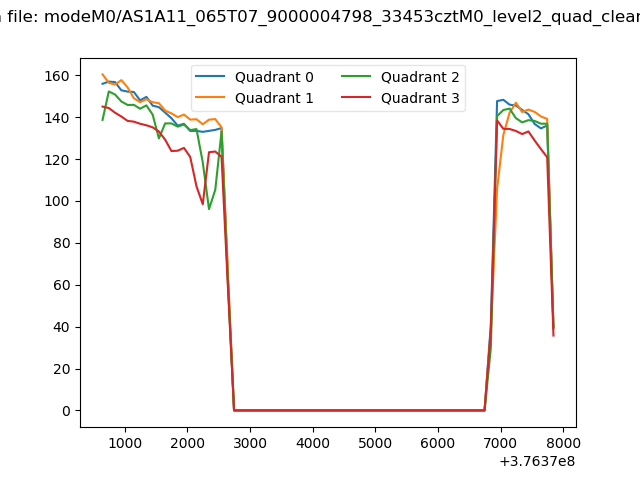

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

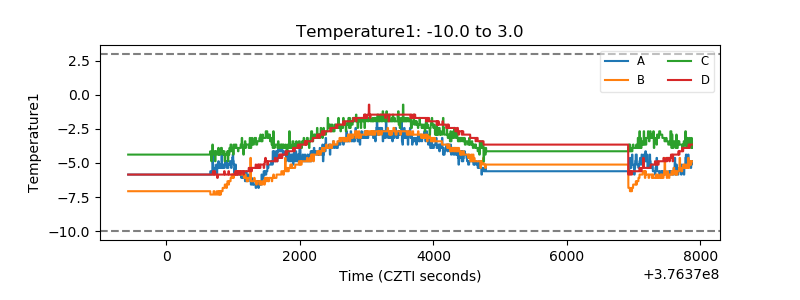

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

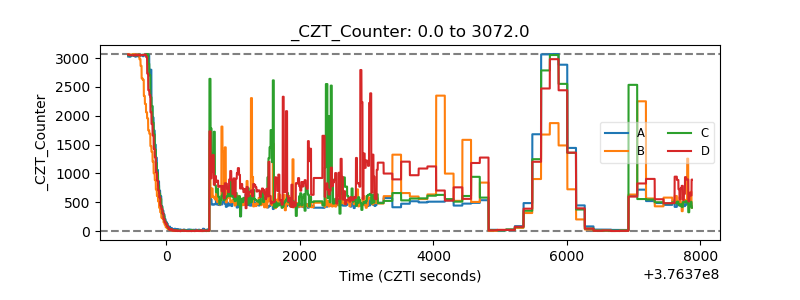

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
