| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T07_9000004798_33456cztM0_level2.evt | modeM0/AS1A11_065T07_9000004798_33456cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,912,960 | 59,832,000 |
| Size | 464.4 MB | 57.1 MB |
| Events in quadrant A | 2,600,649 | 366,959 |
| Events in quadrant B | 4,098,497 | 354,634 |
| Events in quadrant C | 2,968,375 | 358,267 |
| Events in quadrant D | 4,698,999 | 339,679 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11285 | 2 |
| B | 0 | 15718 | 1 |
| C | 0 | 11960 | 1 |
| D | 0 | 17744 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5607 | 4 | 0.071339% |
| B | 5607 | 428 | 7.633315% |
| C | 5607 | 59 | 1.052256% |
| D | 5607 | 82 | 1.462458% |

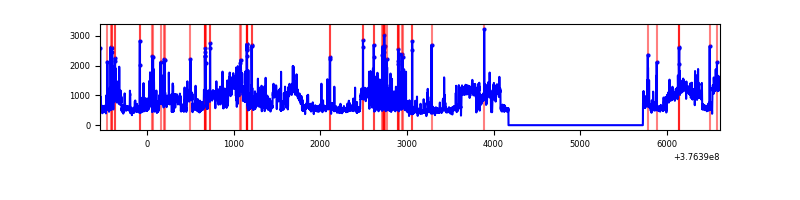

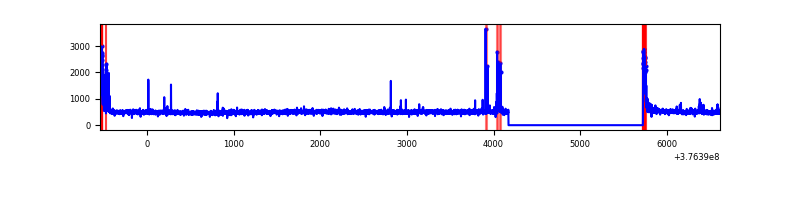

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7160 | 5608 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7160 | 5608 | 337 | 337 | 4.71% | 6.01% |  |
| C | 7160 | 5608 | 56 | 56 | 0.78% | 1.00% |  |
| D | 7160 | 5608 | 63 | 63 | 0.88% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 47 | 12623 | 90.51 | 662 | 650 | 132.3 |
| A | 13 | 6 | 12470 | 89.35 | 662 | 650 | 132.3 |
| A | 13 | 254 | 10241 | 72.5 | 662 | 650 | 132.3 |
| B | 5 | 172 | 761155 | 6166.62 | 638 | 622 | 123.3 |
| B | 5 | 255 | 606968 | 4916.43 | 638 | 622 | 123.3 |
| B | 4 | 251 | 80740 | 649.62 | 638 | 622 | 123.3 |
| C | 15 | 214 | 244006 | 1646.14 | 636 | 640 | 147.8 |
| C | 0 | 10 | 162369 | 1093.94 | 636 | 640 | 147.8 |
| C | 14 | 254 | 45049 | 300.38 | 636 | 640 | 147.8 |
| D | 8 | 195 | 1585030 | 10086.6 | 637 | 619 | 157.1 |
| D | 2 | 250 | 167514 | 1062.48 | 637 | 619 | 157.1 |
| D | 12 | 6 | 113357 | 717.71 | 637 | 619 | 157.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

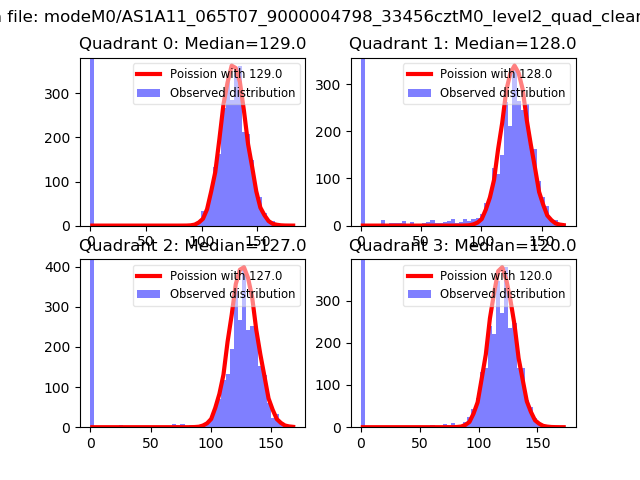

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

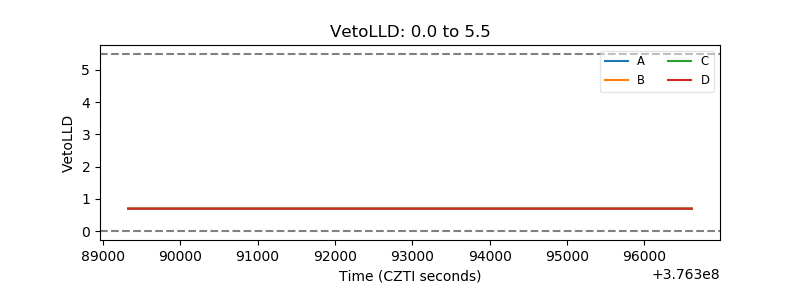

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

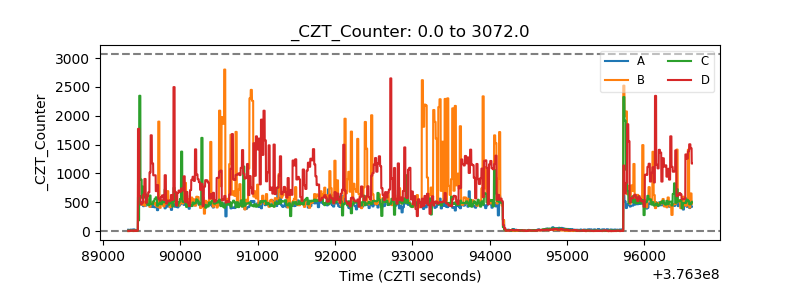

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

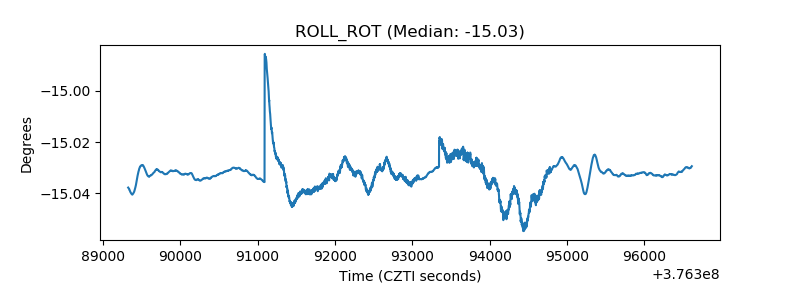

| _ROLL_ROT |  |

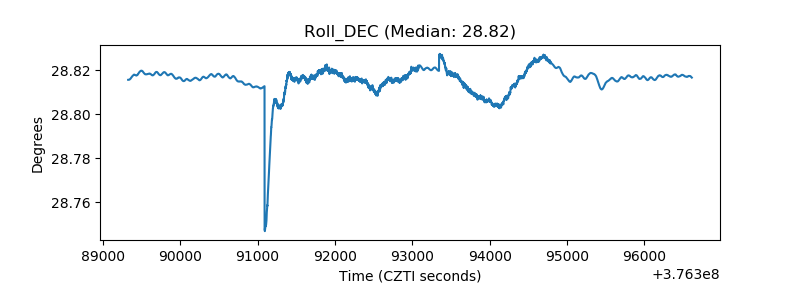

| _Roll_DEC |  |
| _Roll_RA |  |

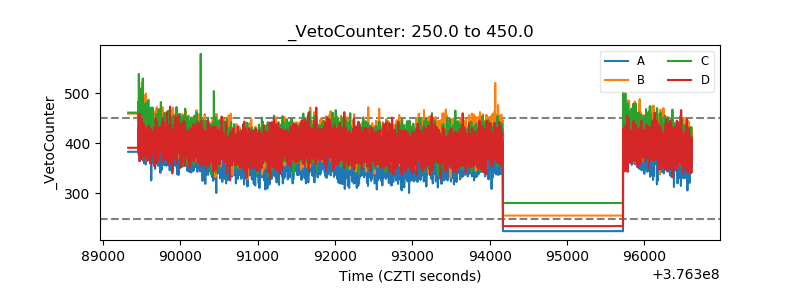

| Veto Counter |  |
