| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T10_9000004802_33469cztM0_level2.evt | modeM0/AS1A11_047T10_9000004802_33469cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,295,360 | 62,640,000 |
| Size | 448.5 MB | 59.7 MB |
| Events in quadrant A | 2,341,386 | 399,364 |
| Events in quadrant B | 3,951,513 | 385,541 |
| Events in quadrant C | 2,657,875 | 389,978 |
| Events in quadrant D | 4,949,381 | 367,182 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10137 | 3 |
| B | 0 | 14964 | 2 |
| C | 0 | 10769 | 2 |
| D | 0 | 18310 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5052 | 8 | 0.158353% |
| B | 5052 | 394 | 7.798892% |
| C | 5052 | 32 | 0.633413% |
| D | 5052 | 369 | 7.304038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7054 | 5053 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7054 | 5052 | 343 | 343 | 4.86% | 6.79% |  |
| C | 7054 | 5053 | 23 | 23 | 0.33% | 0.46% |  |
| D | 7054 | 5053 | 331 | 331 | 4.69% | 6.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8852 | 69.11 | 603 | 592 | 119.5 |
| A | 13 | 6 | 7130 | 54.7 | 603 | 592 | 119.5 |
| A | 3 | 137 | 5678 | 42.55 | 603 | 592 | 119.5 |
| B | 5 | 255 | 804149 | 7240.68 | 580 | 565 | 111.0 |
| B | 5 | 172 | 558444 | 5026.76 | 580 | 565 | 111.0 |
| B | 0 | 213 | 132561 | 1189.34 | 580 | 565 | 111.0 |
| C | 15 | 214 | 224147 | 1692.81 | 574 | 579 | 132.1 |
| C | 0 | 10 | 100175 | 754.12 | 574 | 579 | 132.1 |
| C | 9 | 54 | 49109 | 367.46 | 574 | 579 | 132.1 |
| D | 8 | 195 | 1576730 | 10430.79 | 560 | 547 | 151.1 |
| D | 2 | 249 | 741871 | 4905.9 | 560 | 547 | 151.1 |
| D | 2 | 250 | 199596 | 1317.26 | 560 | 547 | 151.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

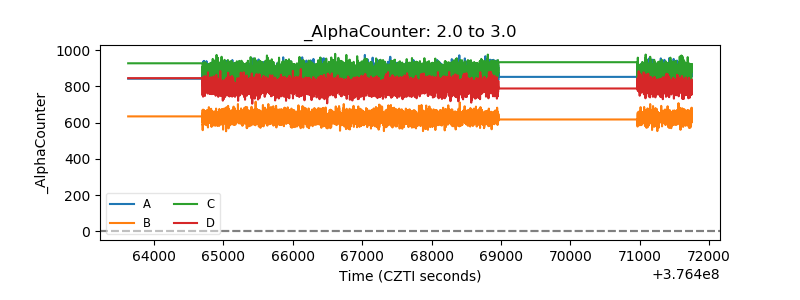

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

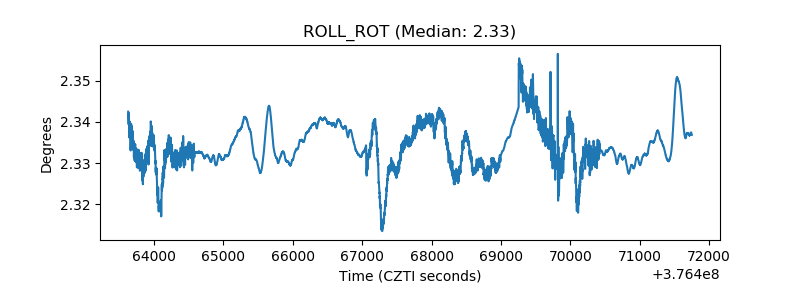

| _ROLL_ROT |  |
| _Roll_DEC |  |

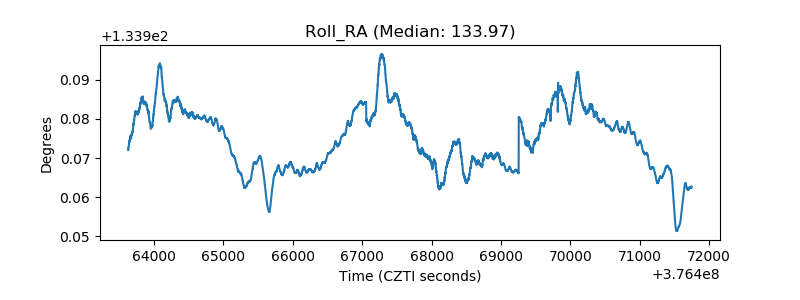

| _Roll_RA |  |
| Veto Counter |  |
