| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33481cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33481cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,767,040 | 62,438,400 |
| Size | 441.3 MB | 59.5 MB |
| Events in quadrant A | 2,499,946 | 391,887 |
| Events in quadrant B | 3,521,985 | 393,248 |
| Events in quadrant C | 3,007,217 | 392,225 |
| Events in quadrant D | 4,646,623 | 362,148 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10193 | 3 |
| B | 0 | 13507 | 2 |
| C | 0 | 11825 | 2 |
| D | 0 | 17237 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5004 | 11 | 0.219824% |
| B | 5004 | 224 | 4.476419% |
| C | 5004 | 43 | 0.859313% |
| D | 5004 | 209 | 4.176659% |

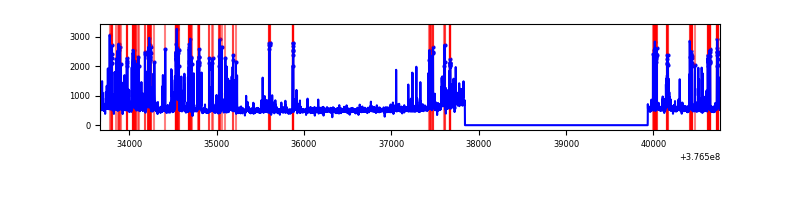

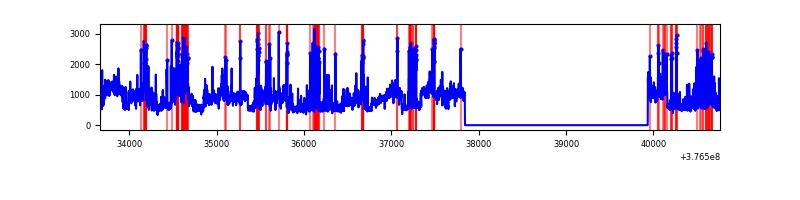

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7097 | 5005 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7097 | 5005 | 191 | 191 | 2.69% | 3.82% |  |
| C | 7097 | 5005 | 34 | 34 | 0.48% | 0.68% |  |
| D | 7097 | 5005 | 195 | 195 | 2.75% | 3.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 227 | 11554 | 85.06 | 643 | 633 | 128.4 |
| A | 13 | 254 | 7887 | 56.5 | 643 | 633 | 128.4 |
| A | 3 | 137 | 6004 | 41.83 | 643 | 633 | 128.4 |
| B | 5 | 172 | 470244 | 3901.1 | 640 | 624 | 120.4 |
| B | 5 | 255 | 452021 | 3749.72 | 640 | 624 | 120.4 |
| B | 4 | 251 | 26411 | 214.21 | 640 | 624 | 120.4 |
| C | 15 | 214 | 219530 | 1487.22 | 643 | 650 | 147.2 |
| C | 0 | 10 | 129027 | 872.28 | 643 | 650 | 147.2 |
| C | 10 | 49 | 52470 | 352.1 | 643 | 650 | 147.2 |
| D | 8 | 195 | 1376290 | 9086.57 | 624 | 611 | 151.4 |
| D | 2 | 250 | 533817 | 3521.91 | 624 | 611 | 151.4 |
| D | 13 | 249 | 204778 | 1348.55 | 624 | 611 | 151.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

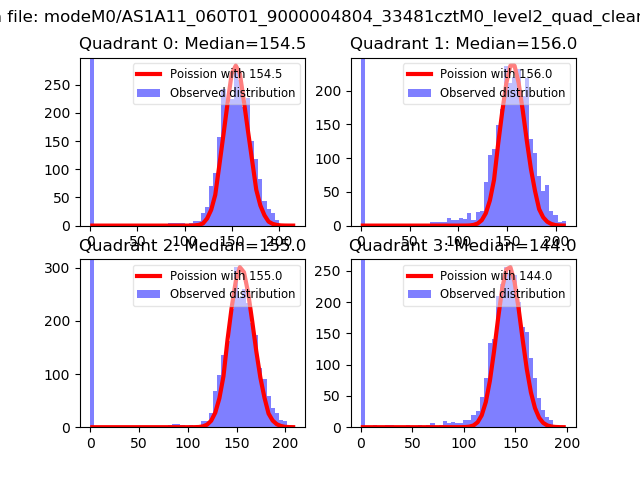

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

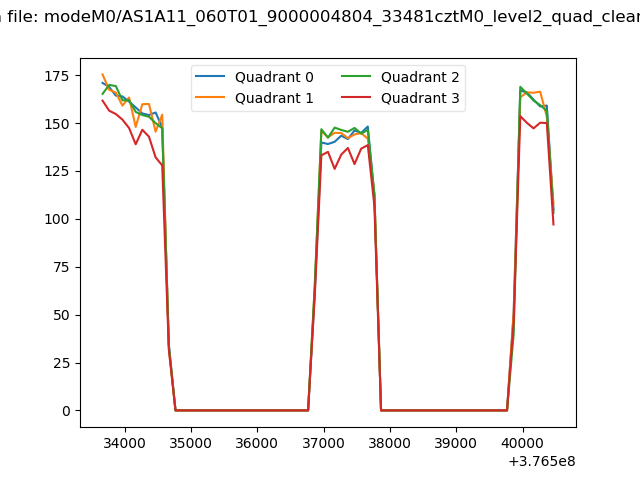

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

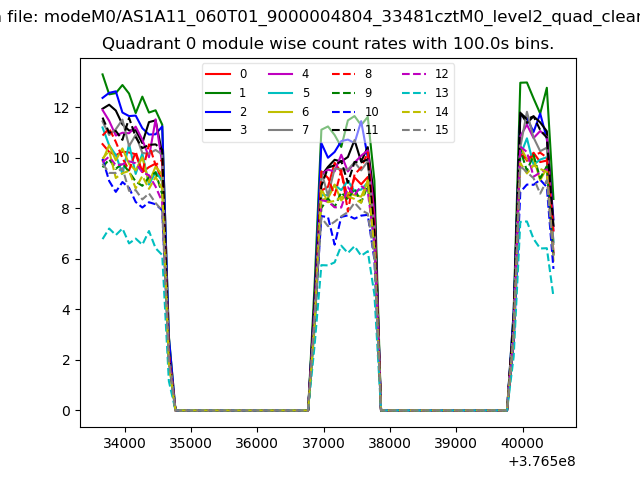

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

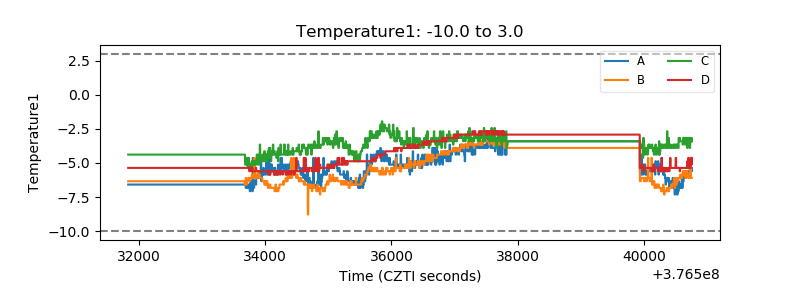

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

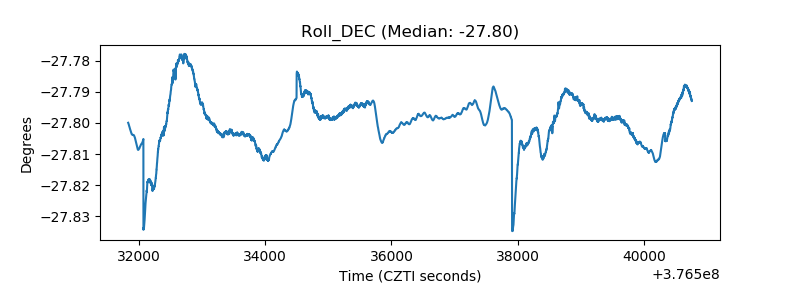

| _Roll_DEC |  |

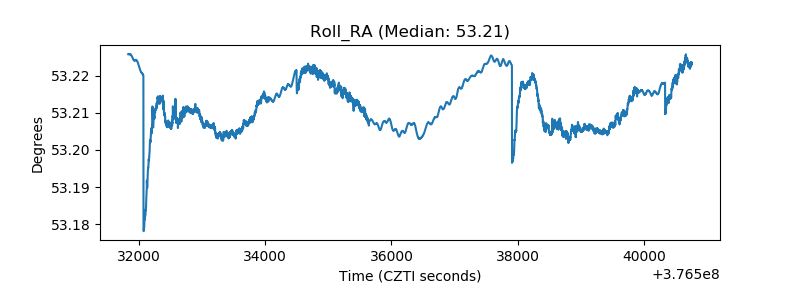

| _Roll_RA |  |
| Veto Counter |  |
