| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33483cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33483cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,659,200 | 46,604,160 |
| Size | 451.7 MB | 44.4 MB |
| Events in quadrant A | 2,332,177 | 272,055 |
| Events in quadrant B | 3,352,603 | 272,437 |
| Events in quadrant C | 3,254,129 | 269,301 |
| Events in quadrant D | 5,076,452 | 255,937 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9765 | 3 |
| B | 0 | 12925 | 2 |
| C | 0 | 12461 | 2 |
| D | 0 | 18502 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4856 | 6 | 0.123558% |
| B | 4856 | 198 | 4.077430% |
| C | 4856 | 136 | 2.800659% |
| D | 4856 | 627 | 12.911862% |

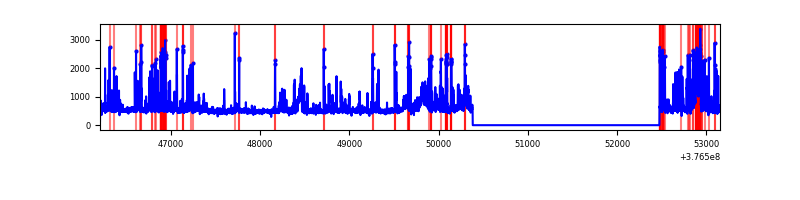

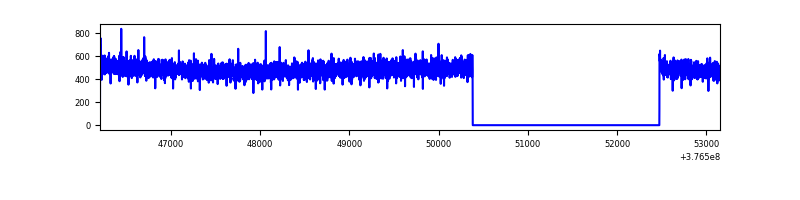

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6949 | 4857 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6949 | 4857 | 143 | 143 | 2.06% | 2.94% |  |
| C | 6949 | 4857 | 128 | 128 | 1.84% | 2.64% |  |
| D | 6949 | 4857 | 565 | 565 | 8.13% | 11.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7336 | 56.22 | 602 | 589 | 120.0 |
| A | 3 | 137 | 5719 | 42.75 | 602 | 589 | 120.0 |
| A | 10 | 83 | 5683 | 42.45 | 602 | 589 | 120.0 |
| B | 5 | 172 | 515748 | 4500.69 | 595 | 580 | 114.5 |
| B | 5 | 255 | 335691 | 2927.65 | 595 | 580 | 114.5 |
| B | 0 | 213 | 126023 | 1095.91 | 595 | 580 | 114.5 |
| C | 1 | 23 | 389077 | 2855.42 | 591 | 597 | 136.0 |
| C | 15 | 214 | 211434 | 1549.7 | 591 | 597 | 136.0 |
| C | 0 | 10 | 152788 | 1118.64 | 591 | 597 | 136.0 |
| D | 2 | 250 | 1395711 | 10174.96 | 563 | 548 | 137.1 |
| D | 8 | 195 | 831160 | 6057.67 | 563 | 548 | 137.1 |
| D | 13 | 249 | 439663 | 3202.48 | 563 | 548 | 137.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

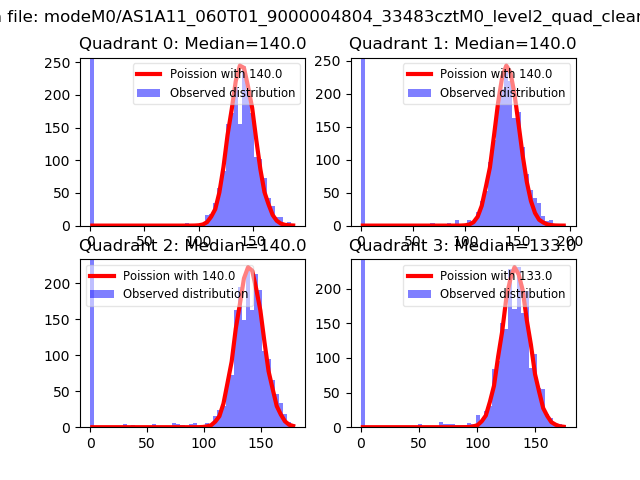

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

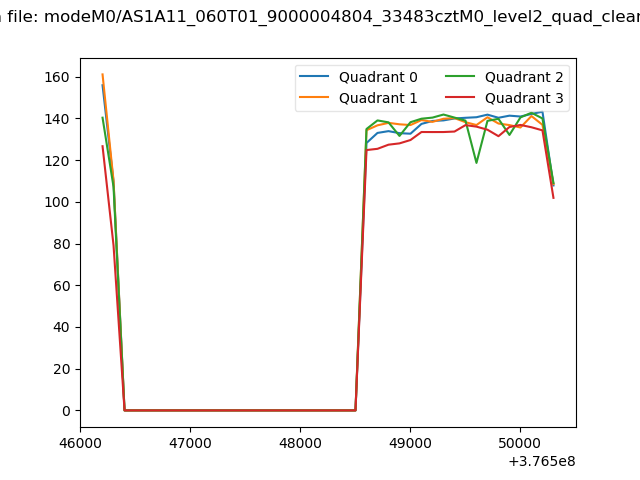

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

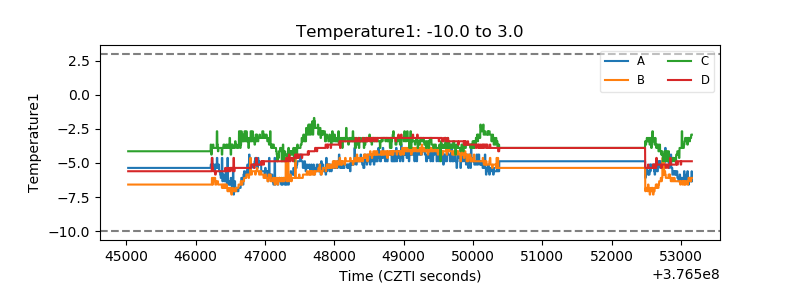

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

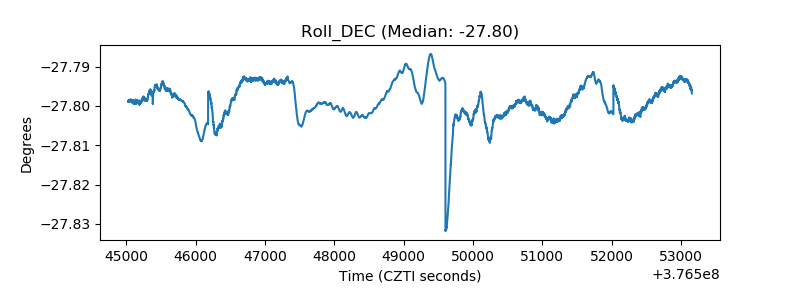

| _Roll_DEC |  |
| _Roll_RA |  |

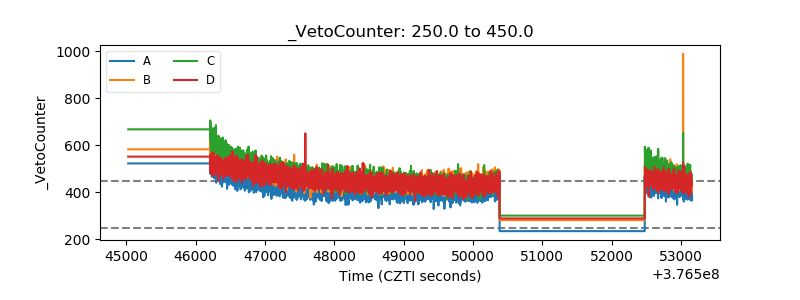

| Veto Counter |  |
