| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33485cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33485cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,074,880 | 65,537,280 |
| Size | 446.4 MB | 62.5 MB |
| Events in quadrant A | 2,546,734 | 408,228 |
| Events in quadrant B | 3,827,411 | 394,382 |
| Events in quadrant C | 3,106,614 | 404,232 |
| Events in quadrant D | 4,315,787 | 386,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11209 | 3 |
| B | 0 | 14883 | 2 |
| C | 0 | 12384 | 2 |
| D | 0 | 16569 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5585 | 9 | 0.161146% |
| B | 5585 | 327 | 5.854969% |
| C | 5585 | 57 | 1.020591% |
| D | 5585 | 142 | 2.542525% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7108 | 5586 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7108 | 5586 | 240 | 240 | 3.38% | 4.30% |  |
| C | 7108 | 5586 | 34 | 34 | 0.48% | 0.61% |  |
| D | 7108 | 5586 | 121 | 121 | 1.70% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9294 | 65.78 | 656 | 642 | 131.5 |
| A | 13 | 6 | 7042 | 48.66 | 656 | 642 | 131.5 |
| A | 3 | 137 | 6459 | 44.23 | 656 | 642 | 131.5 |
| B | 5 | 172 | 1006762 | 8163.01 | 641 | 624 | 123.3 |
| B | 0 | 213 | 172883 | 1397.57 | 641 | 624 | 123.3 |
| B | 5 | 255 | 78528 | 632.05 | 641 | 624 | 123.3 |
| C | 15 | 214 | 241476 | 1615.56 | 639 | 645 | 149.1 |
| C | 0 | 10 | 138793 | 926.74 | 639 | 645 | 149.1 |
| C | 10 | 49 | 54071 | 358.4 | 639 | 645 | 149.1 |
| D | 8 | 195 | 1249972 | 8012.82 | 634 | 616 | 155.9 |
| D | 2 | 250 | 299513 | 1916.99 | 634 | 616 | 155.9 |
| D | 13 | 249 | 127828 | 815.88 | 634 | 616 | 155.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

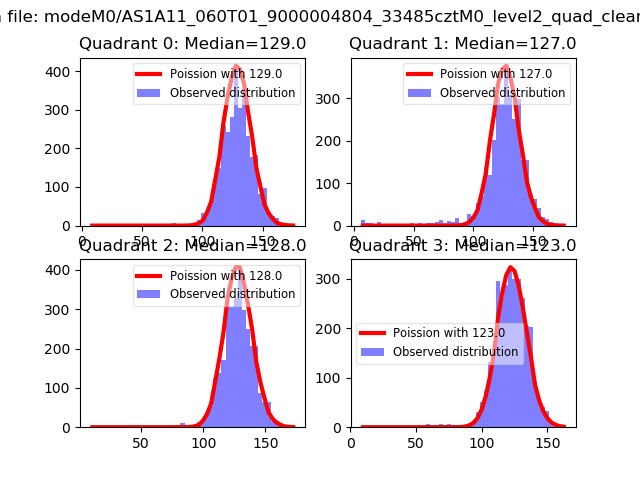

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

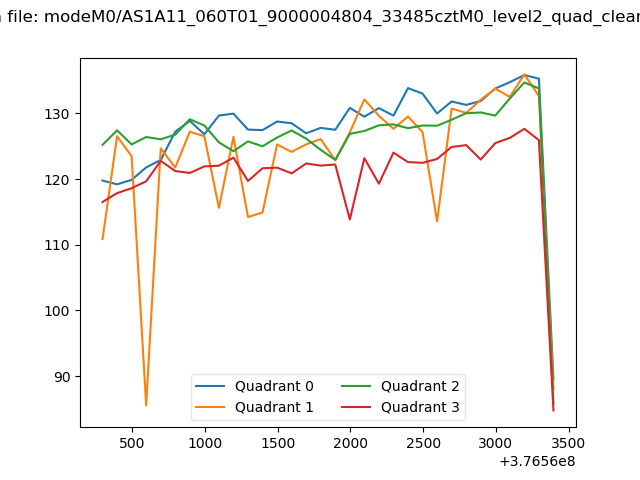

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

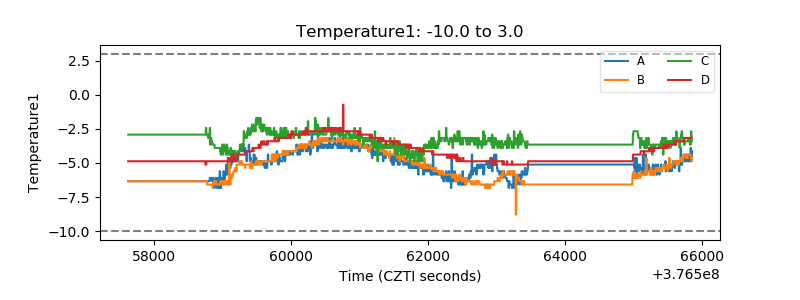

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

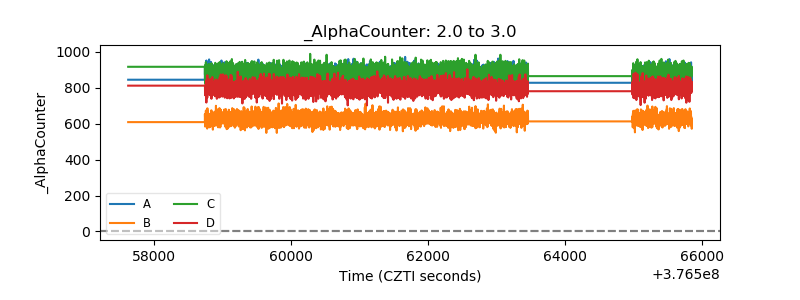

| Alpha Counter |  |

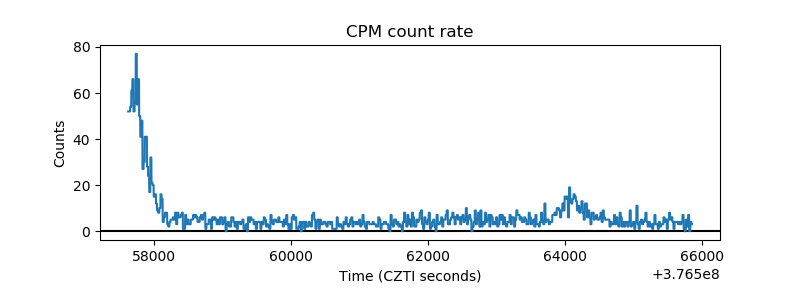

| _CPM_Rate |  |

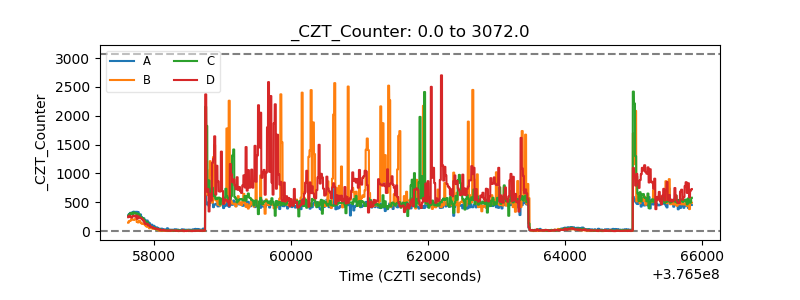

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

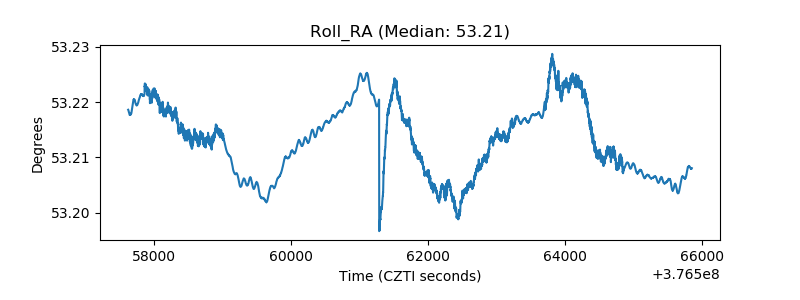

| _Roll_RA |  |

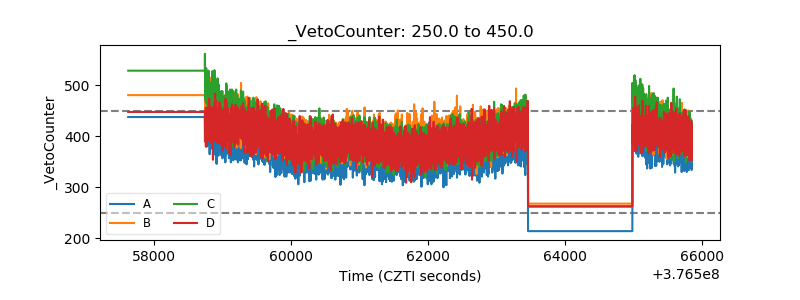

| Veto Counter |  |
