| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33489cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33489cztM0_level2_quad_clean.evt |
| Size (bytes) | 928,848,960 | 152,893,440 |
| Size | 885.8 MB | 145.8 MB |
| Events in quadrant A | 4,818,983 | 1,009,265 |
| Events in quadrant B | 6,926,183 | 975,836 |
| Events in quadrant C | 6,385,929 | 973,491 |
| Events in quadrant D | 9,281,773 | 935,845 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21395 | 2 |
| B | 0 | 27378 | 1 |
| C | 0 | 25664 | 1 |
| D | 0 | 34937 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10622 | 12 | 0.112973% |
| B | 10622 | 560 | 5.272077% |
| C | 10622 | 168 | 1.581623% |
| D | 10622 | 496 | 4.669554% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13458 | 10624 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13458 | 10624 | 440 | 440 | 3.27% | 4.14% |  |
| C | 13458 | 10624 | 172 | 172 | 1.28% | 1.62% |  |
| D | 13458 | 10624 | 417 | 417 | 3.10% | 3.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16248 | 60.21 | 1243 | 1217 | 249.6 |
| A | 13 | 6 | 15058 | 55.44 | 1243 | 1217 | 249.6 |
| A | 3 | 137 | 12594 | 45.57 | 1243 | 1217 | 249.6 |
| B | 5 | 172 | 1581788 | 6762.75 | 1210 | 1177 | 233.7 |
| B | 5 | 255 | 359586 | 1533.48 | 1210 | 1177 | 233.7 |
| B | 4 | 251 | 74255 | 312.67 | 1210 | 1177 | 233.7 |
| C | 9 | 236 | 817042 | 2975.24 | 1193 | 1203 | 274.2 |
| C | 15 | 214 | 448367 | 1630.74 | 1193 | 1203 | 274.2 |
| C | 14 | 67 | 256529 | 931.14 | 1193 | 1203 | 274.2 |
| D | 8 | 195 | 2756934 | 9642.28 | 1177 | 1146 | 285.8 |
| D | 13 | 249 | 1209108 | 4226.56 | 1177 | 1146 | 285.8 |
| D | 2 | 250 | 295321 | 1029.3 | 1177 | 1146 | 285.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

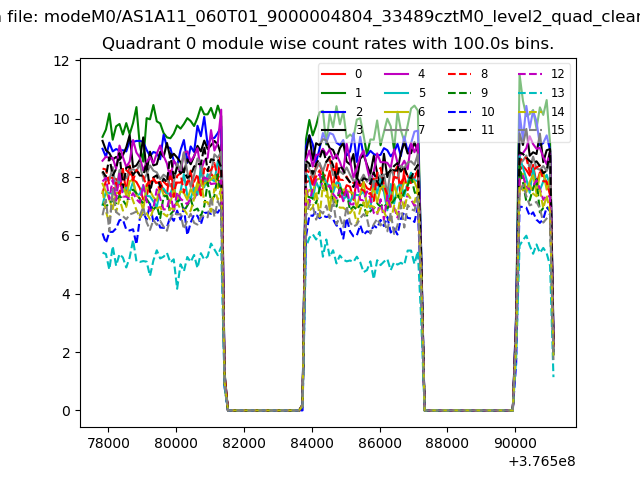

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

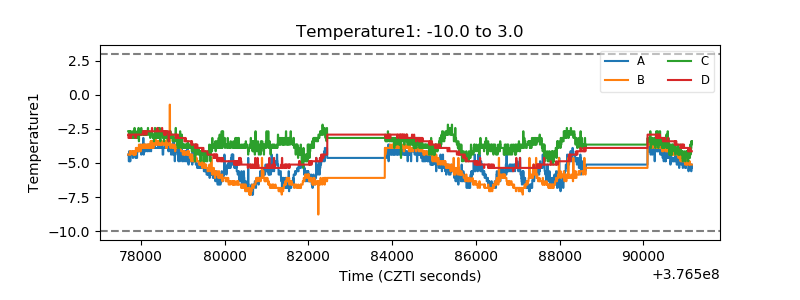

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

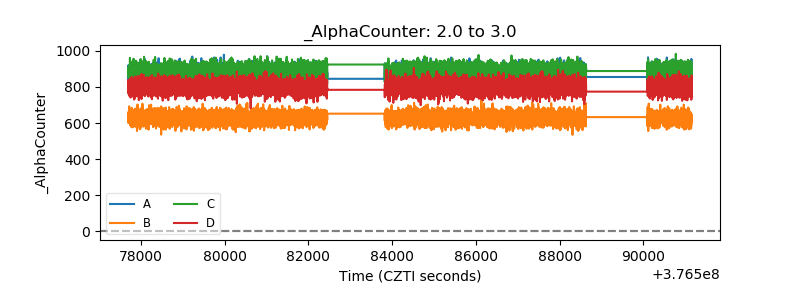

| Alpha Counter |  |
| _CPM_Rate |  |

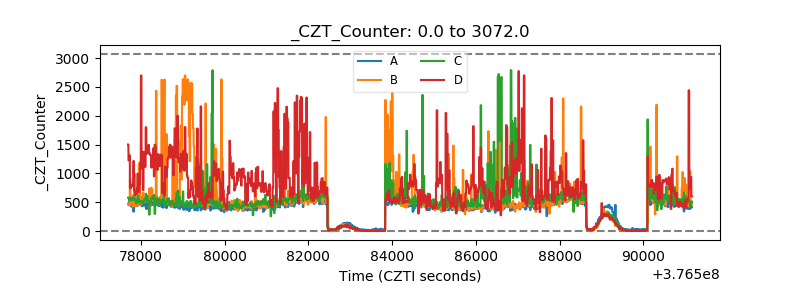

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

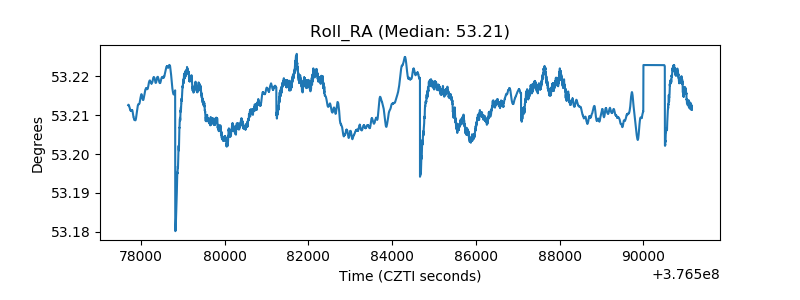

| _Roll_RA |  |

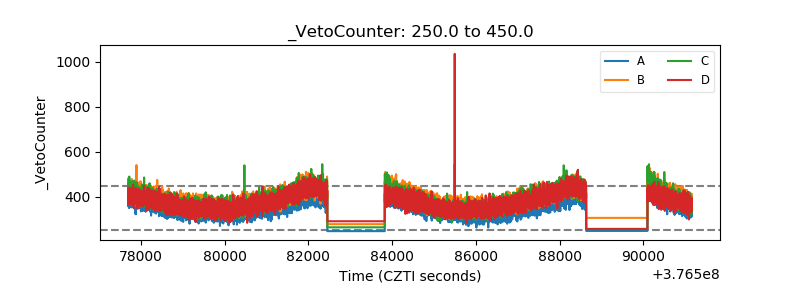

| Veto Counter |  |
