| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33494cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33494cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,556,800 | 68,624,640 |
| Size | 501.2 MB | 65.4 MB |
| Events in quadrant A | 2,526,644 | 446,939 |
| Events in quadrant B | 4,196,983 | 426,761 |
| Events in quadrant C | 3,470,459 | 432,270 |
| Events in quadrant D | 5,367,467 | 404,591 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10611 | 3 |
| B | 0 | 15741 | 2 |
| C | 0 | 13737 | 2 |
| D | 0 | 19593 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5245 | 9 | 0.171592% |
| B | 5245 | 452 | 8.617731% |
| C | 5245 | 92 | 1.754051% |
| D | 5245 | 609 | 11.611058% |

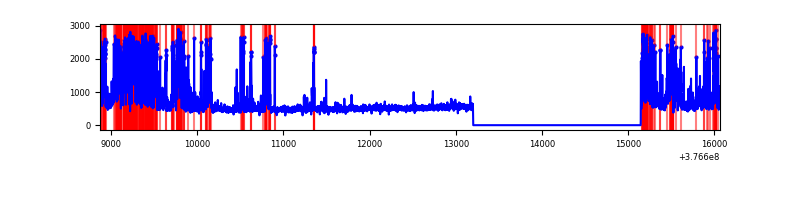

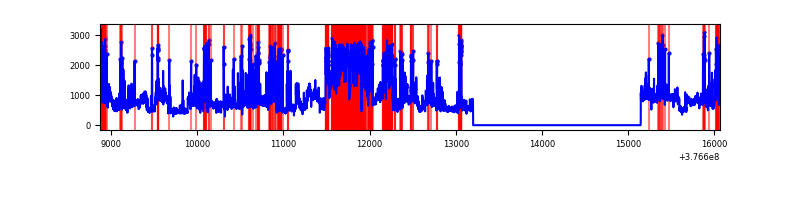

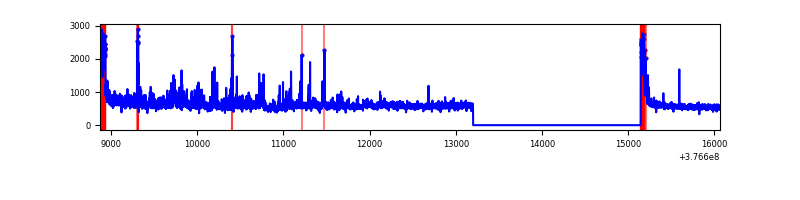

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7189 | 5246 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7189 | 5246 | 395 | 395 | 5.49% | 7.53% |  |
| C | 7189 | 5246 | 90 | 90 | 1.25% | 1.72% |  |
| D | 7189 | 5246 | 587 | 587 | 8.17% | 11.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8588 | 61.23 | 652 | 641 | 129.8 |
| A | 13 | 6 | 7990 | 56.62 | 652 | 641 | 129.8 |
| A | 3 | 137 | 6183 | 42.7 | 652 | 641 | 129.8 |
| B | 5 | 255 | 1294537 | 10696.15 | 638 | 622 | 121.0 |
| B | 5 | 172 | 358660 | 2959.72 | 638 | 622 | 121.0 |
| B | 4 | 251 | 15171 | 120.27 | 638 | 622 | 121.0 |
| C | 7 | 221 | 343545 | 2336.61 | 640 | 647 | 146.7 |
| C | 15 | 214 | 223442 | 1518.19 | 640 | 647 | 146.7 |
| C | 0 | 10 | 183982 | 1249.3 | 640 | 647 | 146.7 |
| D | 8 | 195 | 1078280 | 7264.36 | 611 | 595 | 148.4 |
| D | 13 | 249 | 708733 | 4773.35 | 611 | 595 | 148.4 |
| D | 1 | 52 | 652330 | 4393.15 | 611 | 595 | 148.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

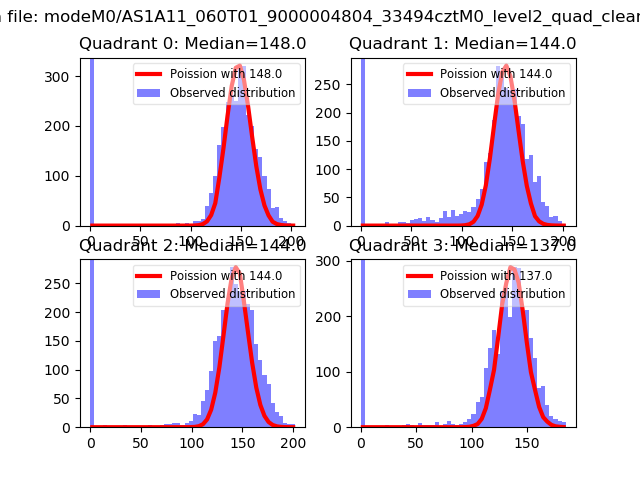

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

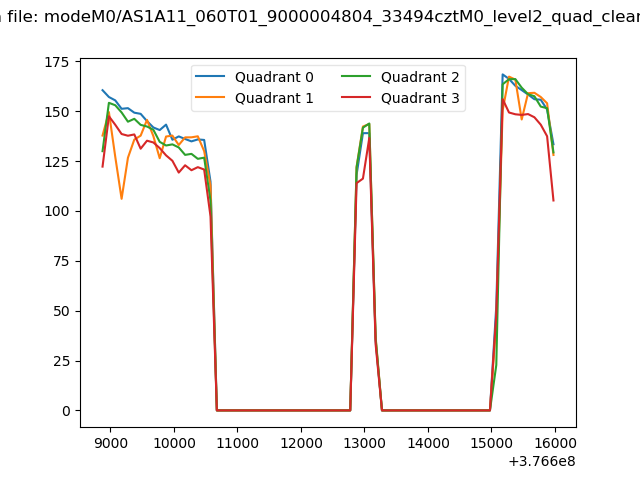

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

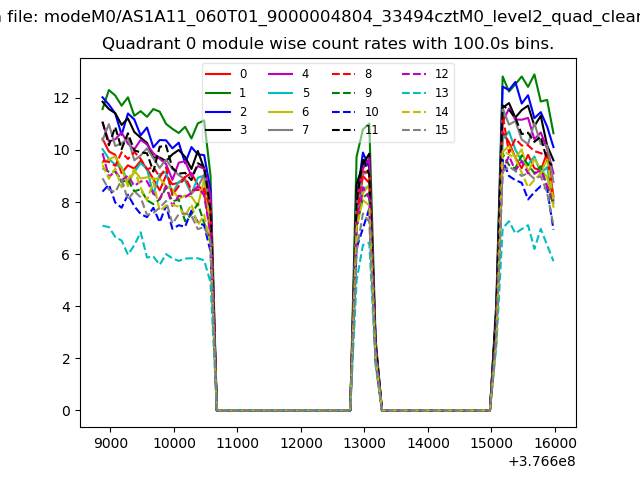

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

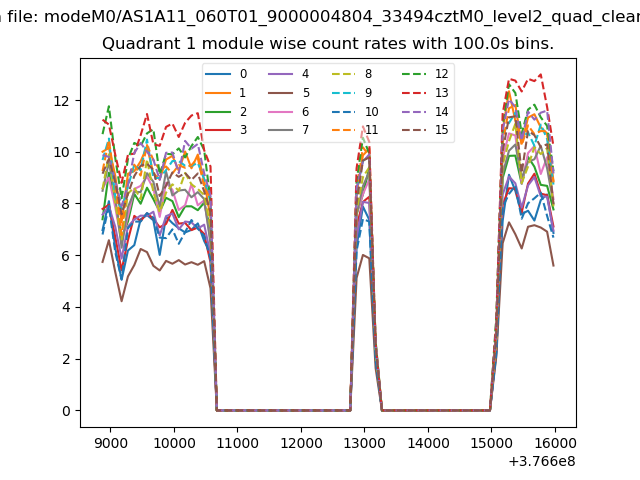

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

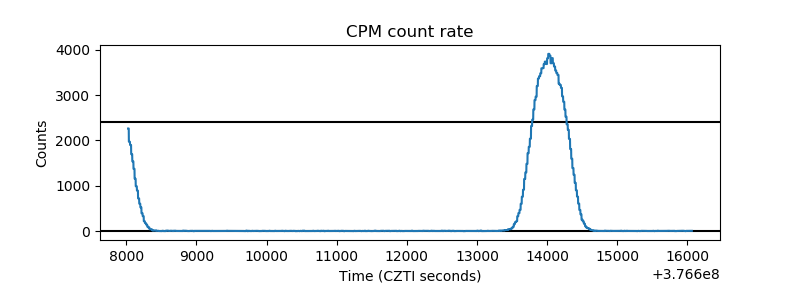

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
