| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004804_33509cztM0_level2.evt | modeM0/AS1A11_060T01_9000004804_33509cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,184,000 | 71,455,680 |
| Size | 459.8 MB | 68.1 MB |
| Events in quadrant A | 2,576,634 | 462,042 |
| Events in quadrant B | 4,236,873 | 450,959 |
| Events in quadrant C | 3,350,872 | 454,698 |
| Events in quadrant D | 4,080,843 | 425,964 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10710 | 3 |
| B | 0 | 15895 | 2 |
| C | 0 | 13329 | 2 |
| D | 0 | 15838 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5279 | 7 | 0.132601% |
| B | 5279 | 450 | 8.524342% |
| C | 5279 | 90 | 1.704868% |
| D | 5279 | 125 | 2.367873% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7281 | 5280 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7281 | 5280 | 354 | 354 | 4.86% | 6.70% |  |
| C | 7281 | 5280 | 85 | 85 | 1.17% | 1.61% |  |
| D | 7281 | 5280 | 111 | 111 | 1.52% | 2.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8712 | 60.87 | 665 | 652 | 132.4 |
| A | 3 | 137 | 6217 | 42.02 | 665 | 652 | 132.4 |
| A | 13 | 6 | 5912 | 39.72 | 665 | 652 | 132.4 |
| B | 5 | 255 | 1144942 | 9258.95 | 654 | 638 | 123.6 |
| B | 5 | 172 | 508071 | 4105.81 | 654 | 638 | 123.6 |
| B | 12 | 111 | 14761 | 114.27 | 654 | 638 | 123.6 |
| C | 15 | 214 | 228901 | 1522.7 | 656 | 665 | 149.9 |
| C | 0 | 10 | 221798 | 1475.31 | 656 | 665 | 149.9 |
| C | 9 | 236 | 112882 | 748.67 | 656 | 665 | 149.9 |
| D | 8 | 195 | 751692 | 4788.37 | 644 | 628 | 156.9 |
| D | 2 | 250 | 281178 | 1788.63 | 644 | 628 | 156.9 |
| D | 13 | 249 | 218045 | 1386.13 | 644 | 628 | 156.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

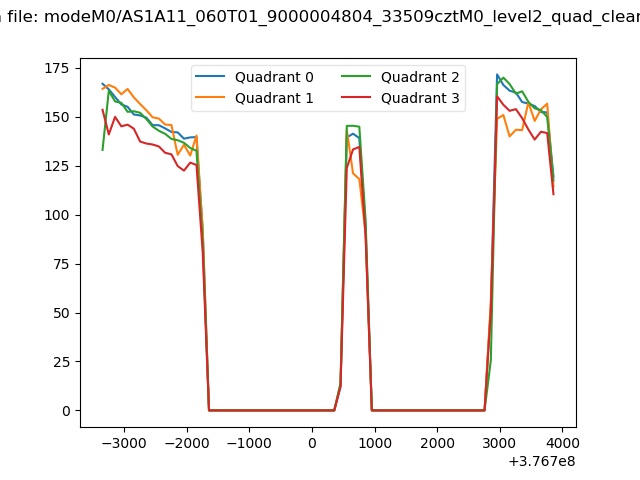

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

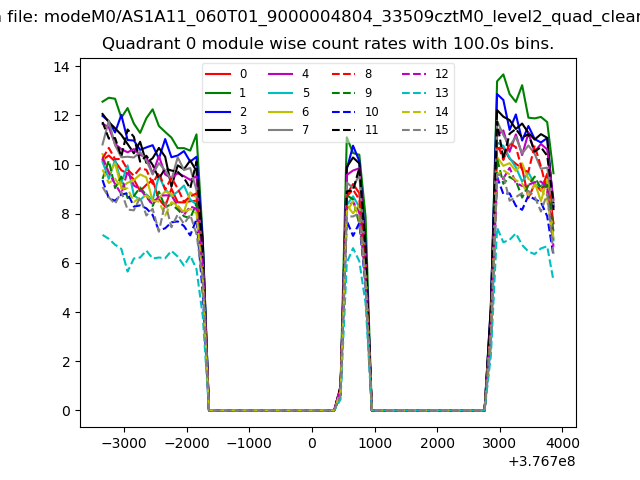

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

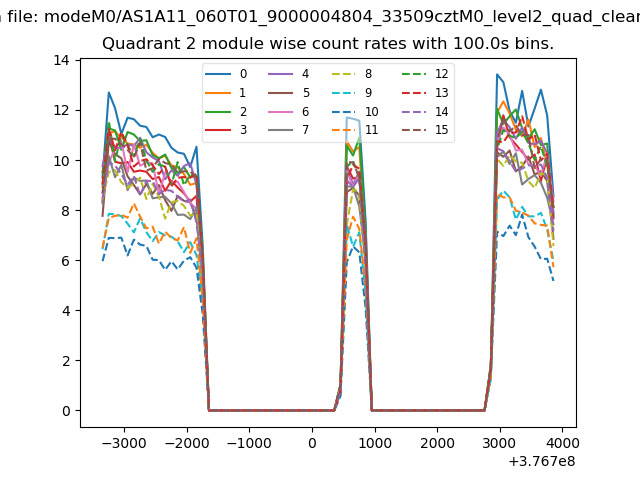

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

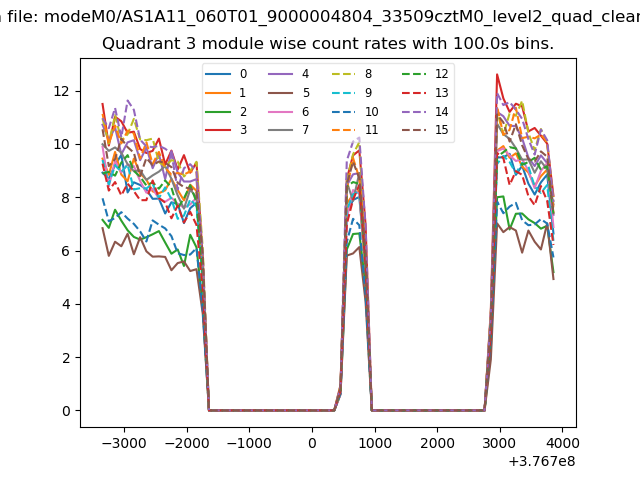

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

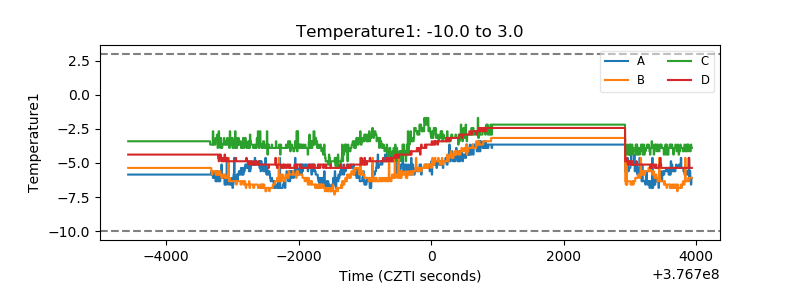

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

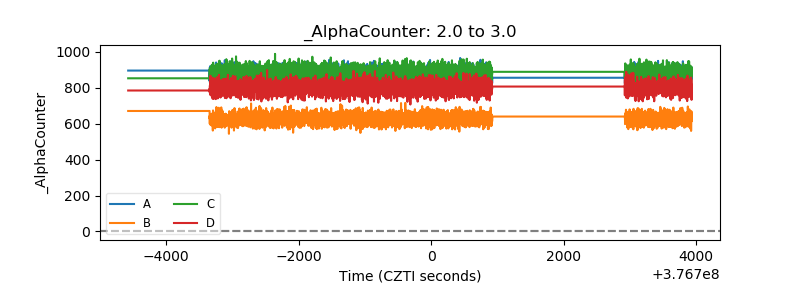

| Alpha Counter |  |
| _CPM_Rate |  |

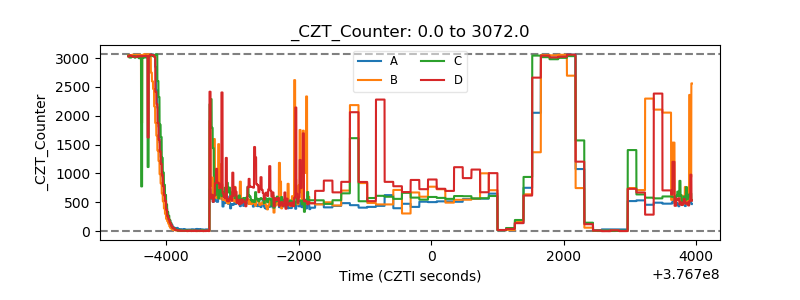

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
