| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33540cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33540cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,406,080 | 59,618,880 |
| Size | 455.3 MB | 56.9 MB |
| Events in quadrant A | 3,201,094 | 365,366 |
| Events in quadrant B | 2,829,202 | 379,274 |
| Events in quadrant C | 3,296,098 | 366,633 |
| Events in quadrant D | 4,793,158 | 342,813 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12496 | 3 |
| B | 0 | 11205 | 2 |
| C | 0 | 12935 | 2 |
| D | 0 | 17813 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5004 | 18 | 0.359712% |
| B | 5004 | 63 | 1.258993% |
| C | 5004 | 87 | 1.738609% |
| D | 5004 | 204 | 4.076739% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7157 | 5005 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7157 | 5005 | 43 | 43 | 0.60% | 0.86% |  |
| C | 7157 | 5005 | 80 | 80 | 1.12% | 1.60% |  |
| D | 7157 | 5005 | 189 | 189 | 2.64% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 758485 | 6029.77 | 631 | 619 | 125.7 |
| A | 13 | 254 | 8389 | 61.82 | 631 | 619 | 125.7 |
| A | 10 | 83 | 6122 | 43.78 | 631 | 619 | 125.7 |
| B | 5 | 255 | 105658 | 868.56 | 636 | 621 | 120.9 |
| B | 5 | 172 | 99177 | 814.96 | 636 | 621 | 120.9 |
| B | 4 | 251 | 57649 | 471.57 | 636 | 621 | 120.9 |
| C | 0 | 10 | 525349 | 3639.25 | 627 | 634 | 144.2 |
| C | 15 | 214 | 216806 | 1499.3 | 627 | 634 | 144.2 |
| C | 14 | 254 | 50755 | 347.62 | 627 | 634 | 144.2 |
| D | 8 | 195 | 1527278 | 10276.79 | 615 | 601 | 148.6 |
| D | 2 | 31 | 333236 | 2239.12 | 615 | 601 | 148.6 |
| D | 2 | 250 | 263041 | 1766.61 | 615 | 601 | 148.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

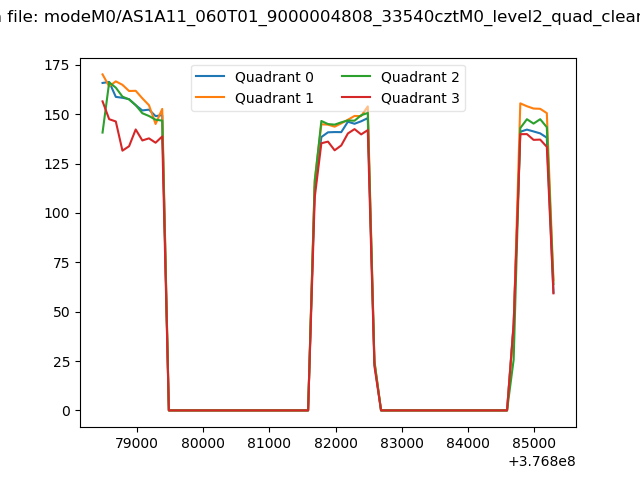

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

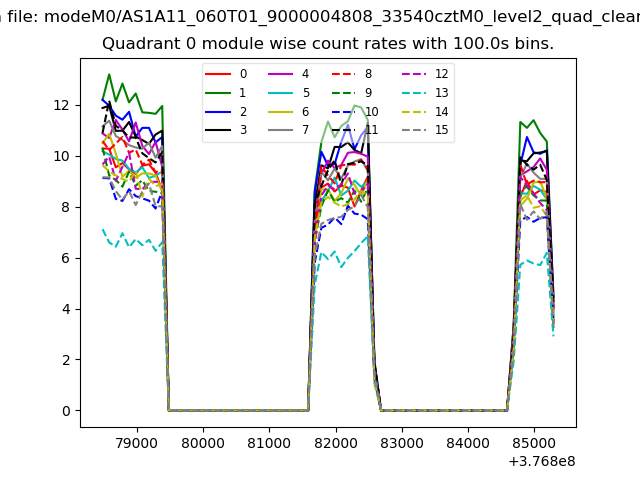

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

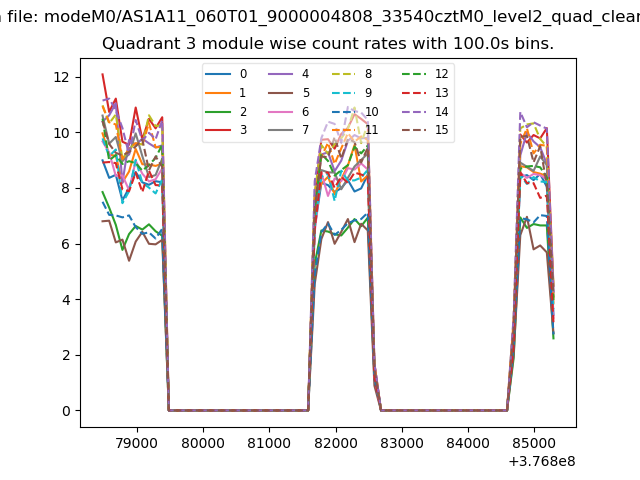

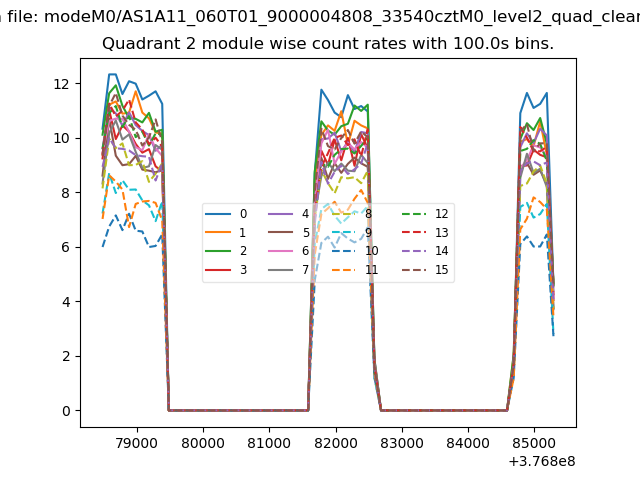

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

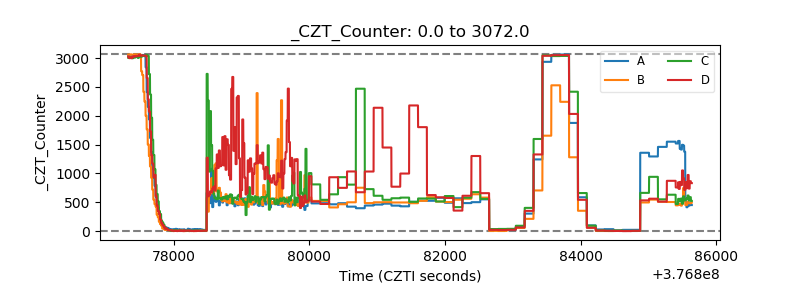

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

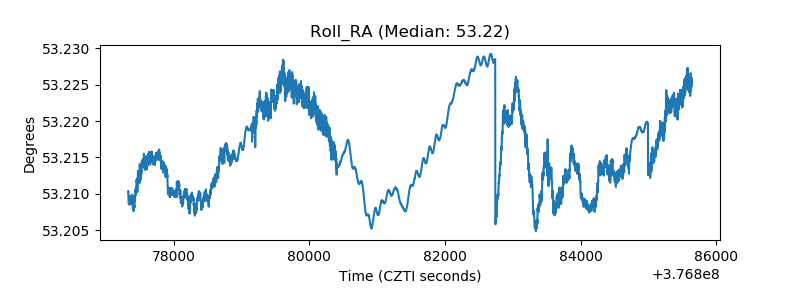

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
