| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33541cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33541cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,787,520 | 49,800,960 |
| Size | 410.8 MB | 47.5 MB |
| Events in quadrant A | 3,078,200 | 292,747 |
| Events in quadrant B | 2,876,962 | 298,628 |
| Events in quadrant C | 2,956,295 | 294,449 |
| Events in quadrant D | 3,805,031 | 280,520 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12150 | 2 |
| B | 0 | 11437 | 1 |
| C | 0 | 11459 | 1 |
| D | 0 | 14551 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4866 | 24 | 0.493218% |
| B | 4866 | 115 | 2.363337% |
| C | 4866 | 83 | 1.705713% |
| D | 4866 | 121 | 2.486642% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6960 | 4867 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6960 | 4867 | 65 | 65 | 0.93% | 1.34% |  |
| C | 6960 | 4867 | 77 | 77 | 1.11% | 1.58% |  |
| D | 6960 | 4867 | 96 | 96 | 1.38% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 758440 | 6326.13 | 598 | 586 | 119.8 |
| A | 13 | 254 | 8219 | 63.72 | 598 | 586 | 119.8 |
| A | 10 | 83 | 5957 | 44.83 | 598 | 586 | 119.8 |
| B | 5 | 172 | 248235 | 2163.61 | 598 | 583 | 114.5 |
| B | 5 | 255 | 216995 | 1890.68 | 598 | 583 | 114.5 |
| B | 12 | 111 | 13944 | 116.73 | 598 | 583 | 114.5 |
| C | 0 | 10 | 262248 | 1905.8 | 591 | 597 | 137.3 |
| C | 15 | 214 | 211689 | 1537.54 | 591 | 597 | 137.3 |
| C | 14 | 254 | 76624 | 553.76 | 591 | 597 | 137.3 |
| D | 8 | 195 | 953280 | 6715.34 | 582 | 568 | 141.9 |
| D | 13 | 249 | 159017 | 1116.85 | 582 | 568 | 141.9 |
| D | 2 | 249 | 153758 | 1079.78 | 582 | 568 | 141.9 |

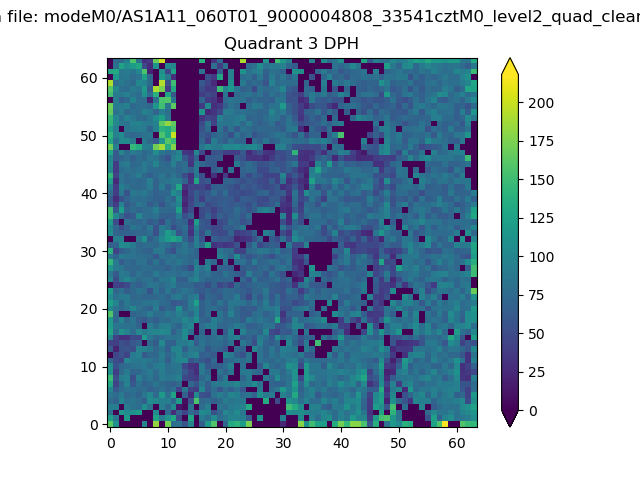

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

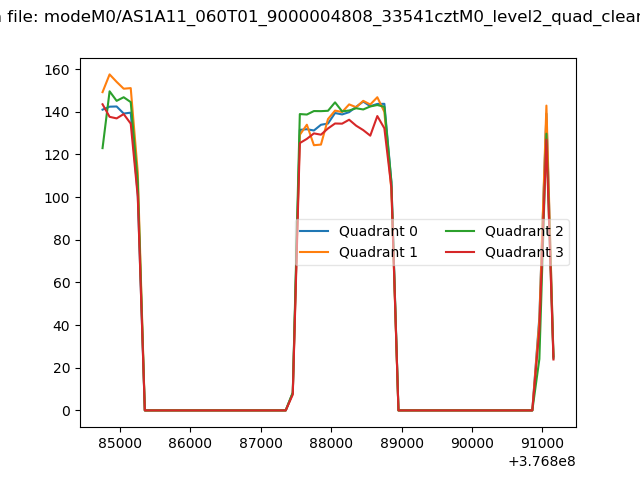

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

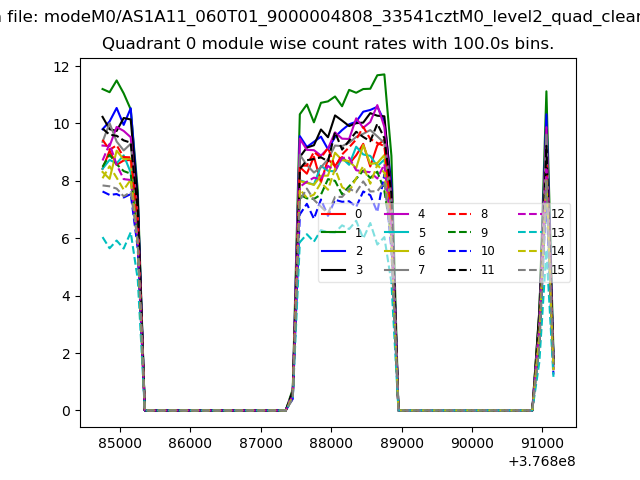

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

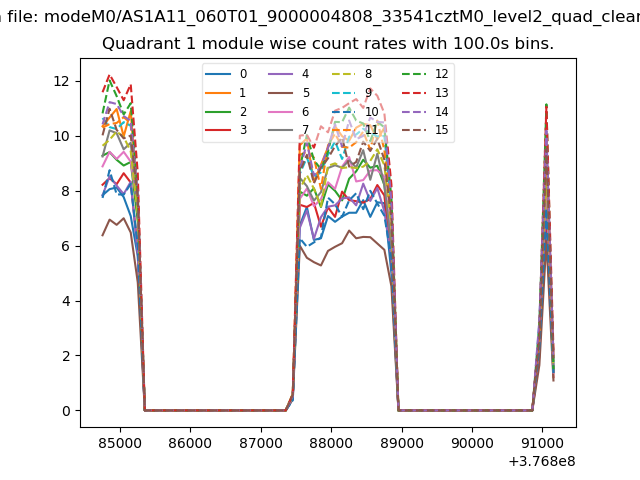

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

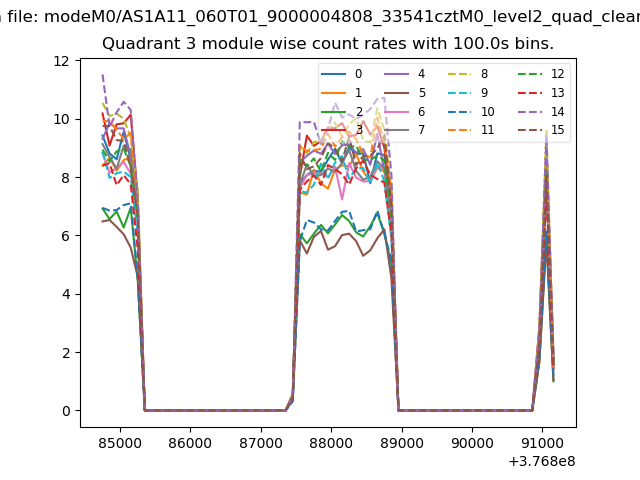

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

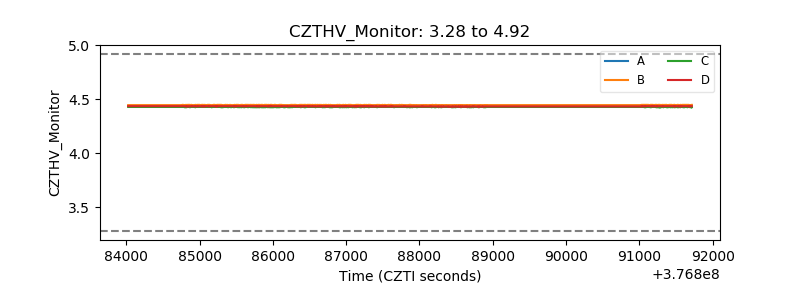

| CZT HV Monitor |  |

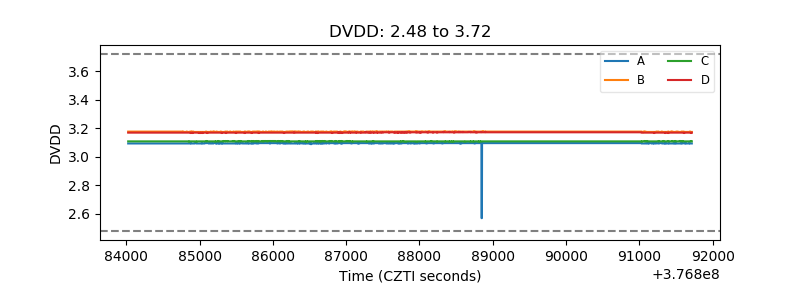

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

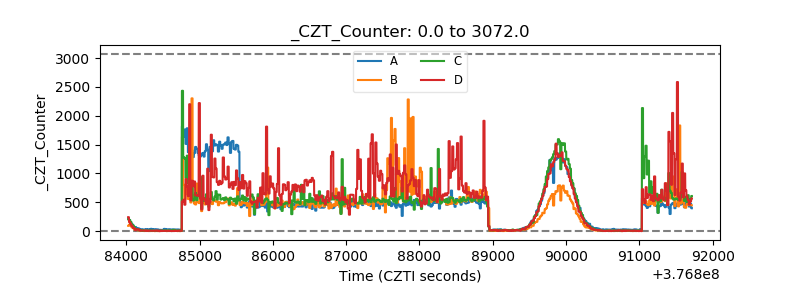

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
