| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33544cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33544cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,028,800 | 89,956,800 |
| Size | 549.3 MB | 85.8 MB |
| Events in quadrant A | 3,604,866 | 569,367 |
| Events in quadrant B | 3,959,423 | 565,667 |
| Events in quadrant C | 3,808,222 | 565,011 |
| Events in quadrant D | 5,599,532 | 537,504 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15445 | 3 |
| B | 0 | 16125 | 2 |
| C | 0 | 15259 | 2 |
| D | 0 | 21171 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6985 | 8 | 0.114531% |
| B | 6985 | 179 | 2.562634% |
| C | 6985 | 78 | 1.116679% |
| D | 6985 | 178 | 2.548318% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

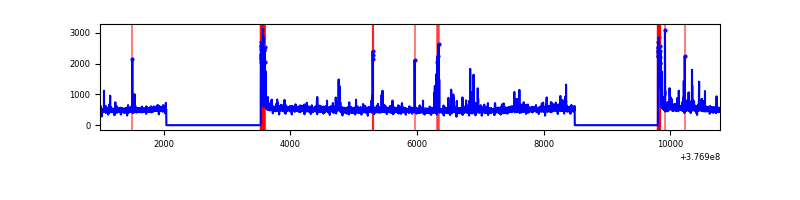

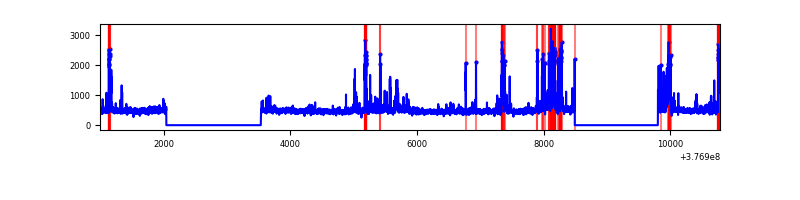

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9791 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9791 | 6986 | 139 | 139 | 1.42% | 1.99% |  |
| C | 9791 | 6987 | 60 | 60 | 0.61% | 0.86% |  |
| D | 9791 | 6987 | 156 | 156 | 1.59% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 442268 | 2692.44 | 816 | 800 | 164.0 |
| A | 13 | 254 | 12143 | 69.18 | 816 | 800 | 164.0 |
| A | 3 | 137 | 8306 | 45.78 | 816 | 800 | 164.0 |
| B | 5 | 172 | 434048 | 2757.92 | 809 | 787 | 157.1 |
| B | 4 | 170 | 124118 | 785.06 | 809 | 787 | 157.1 |
| B | 4 | 251 | 120889 | 764.51 | 809 | 787 | 157.1 |
| C | 15 | 214 | 300307 | 1634.96 | 794 | 800 | 183.2 |
| C | 0 | 10 | 226303 | 1230.99 | 794 | 800 | 183.2 |
| C | 14 | 254 | 105893 | 573.68 | 794 | 800 | 183.2 |
| D | 8 | 195 | 1849186 | 9536.41 | 788 | 764 | 193.8 |
| D | 2 | 250 | 264449 | 1360.41 | 788 | 764 | 193.8 |
| D | 13 | 249 | 103939 | 532.3 | 788 | 764 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

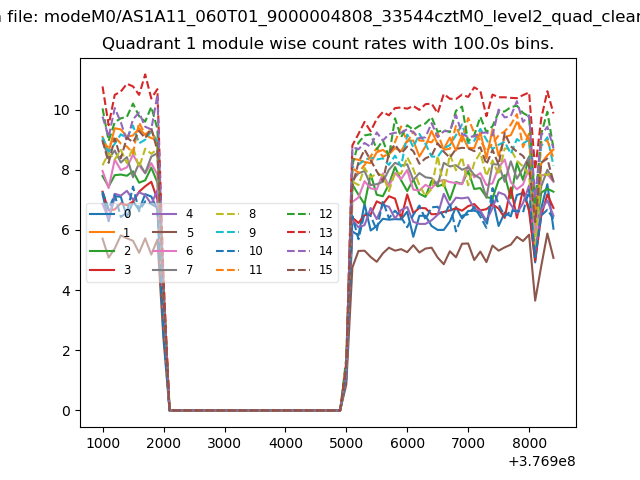

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

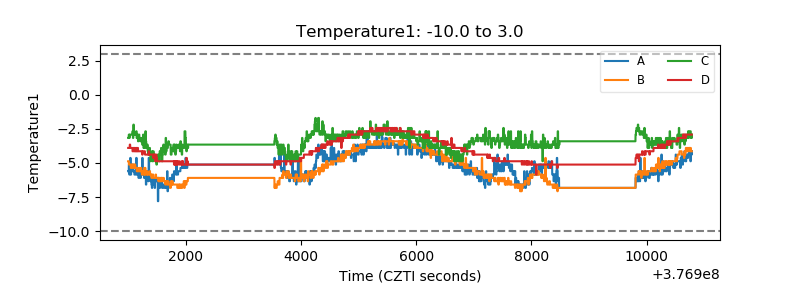

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

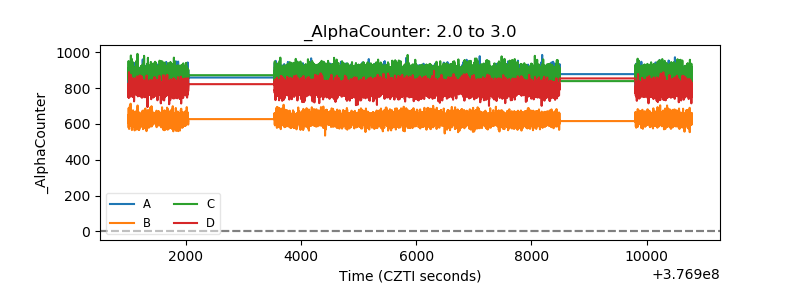

| Alpha Counter |  |

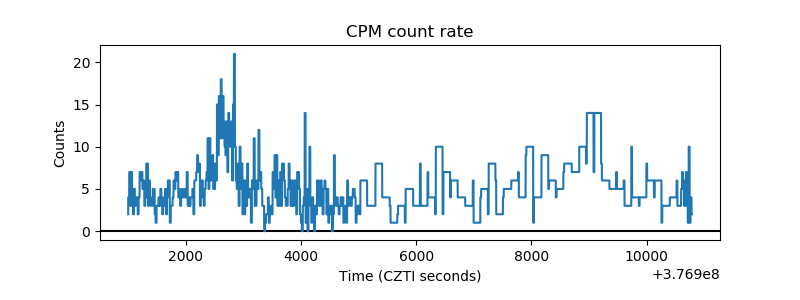

| _CPM_Rate |  |

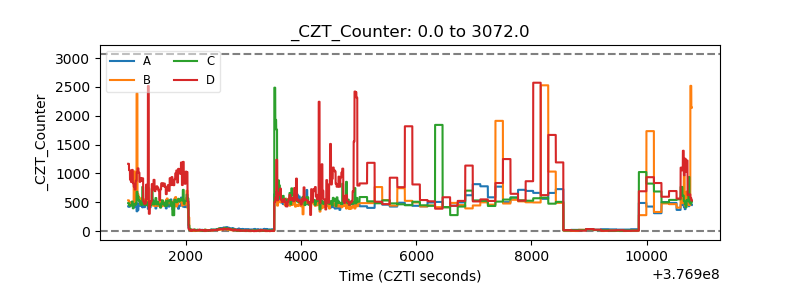

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

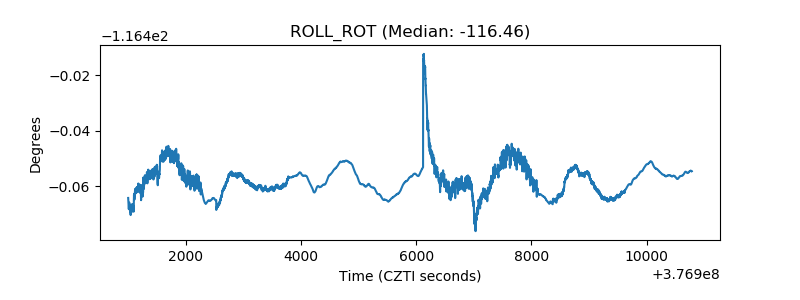

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
