| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33565cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33565cztM0_level2_quad_clean.evt |
| Size (bytes) | 788,676,480 | 77,898,240 |
| Size | 752.1 MB | 74.3 MB |
| Events in quadrant A | 5,313,123 | 477,436 |
| Events in quadrant B | 5,687,305 | 489,049 |
| Events in quadrant C | 7,391,233 | 478,513 |
| Events in quadrant D | 5,082,160 | 486,429 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19874 | 3 |
| B | 0 | 20919 | 2 |
| C | 0 | 26322 | 2 |
| D | 0 | 19329 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6114 | 980 | 16.028786% |
| B | 6114 | 884 | 14.458620% |
| C | 6114 | 967 | 15.816160% |
| D | 6114 | 220 | 3.598299% |

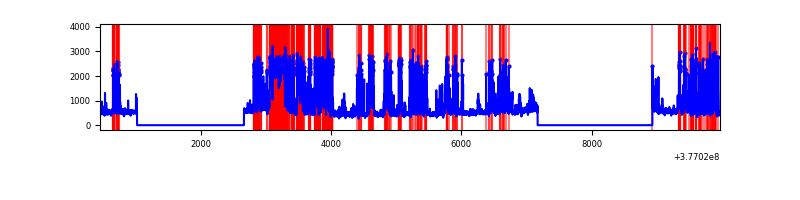

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9518 | 6116 | 848 | 848 | 8.91% | 13.87% |  |
| B | 9518 | 6116 | 745 | 745 | 7.83% | 12.18% |  |
| C | 9518 | 6116 | 822 | 822 | 8.64% | 13.44% |  |
| D | 9518 | 6116 | 233 | 233 | 2.45% | 3.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2664546 | 19307.29 | 683 | 671 | 138.0 |
| A | 13 | 254 | 9768 | 65.93 | 683 | 671 | 138.0 |
| A | 3 | 137 | 6696 | 43.67 | 683 | 671 | 138.0 |
| B | 5 | 172 | 2682666 | 19910.03 | 697 | 680 | 134.7 |
| B | 4 | 251 | 84741 | 624.04 | 697 | 680 | 134.7 |
| B | 5 | 255 | 71777 | 527.8 | 697 | 680 | 134.7 |
| C | 3 | 233 | 4042815 | 25711.73 | 676 | 683 | 157.2 |
| C | 14 | 254 | 288308 | 1829.56 | 676 | 683 | 157.2 |
| C | 15 | 214 | 247447 | 1569.65 | 676 | 683 | 157.2 |
| D | 8 | 195 | 989050 | 5705.77 | 705 | 686 | 173.2 |
| D | 1 | 47 | 446990 | 2576.49 | 705 | 686 | 173.2 |
| D | 2 | 250 | 395929 | 2281.71 | 705 | 686 | 173.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

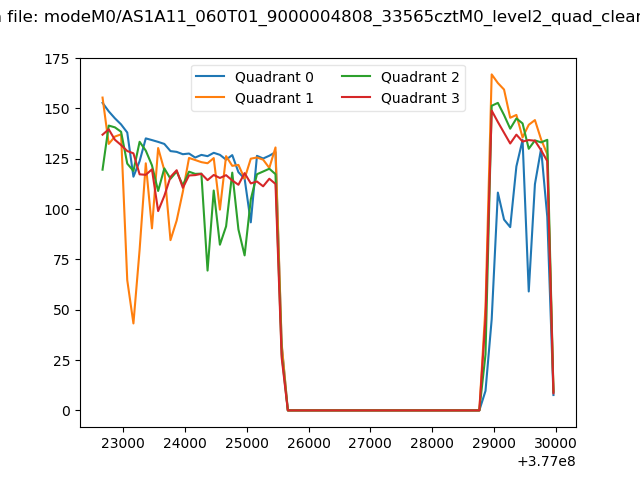

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

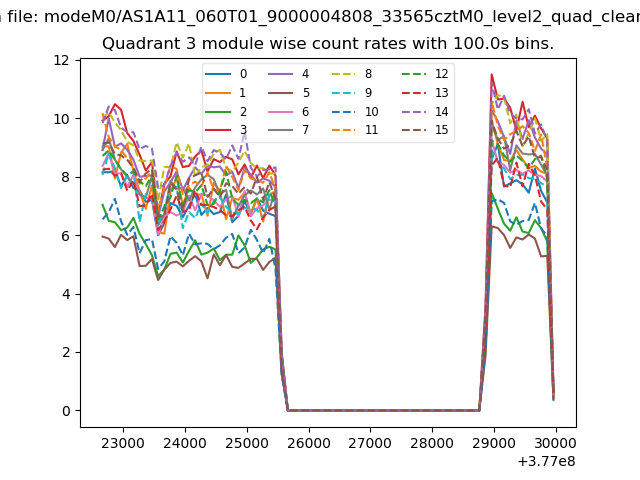

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

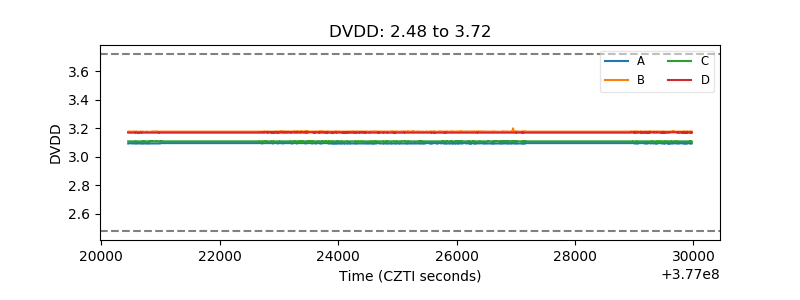

| D_VDD |  |

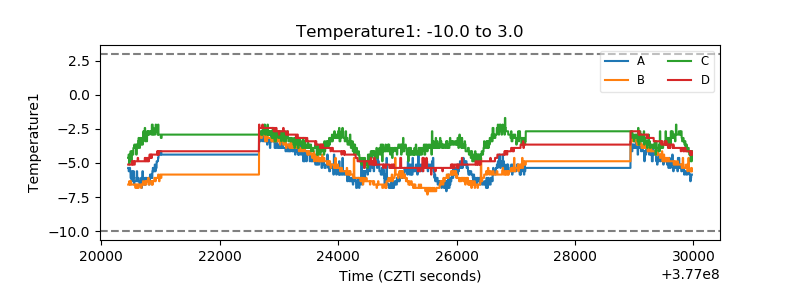

| Temperature 1 |  |

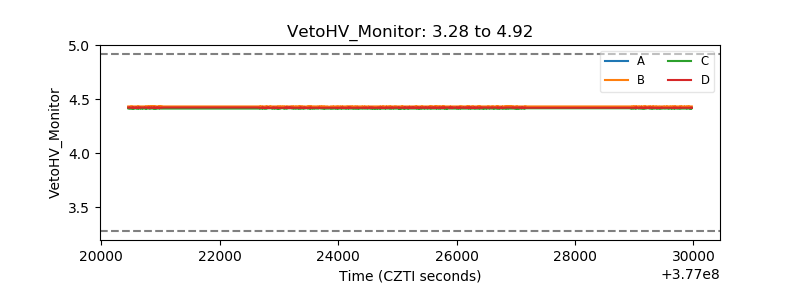

| Veto HV Monitor |  |
| Veto LLD |  |

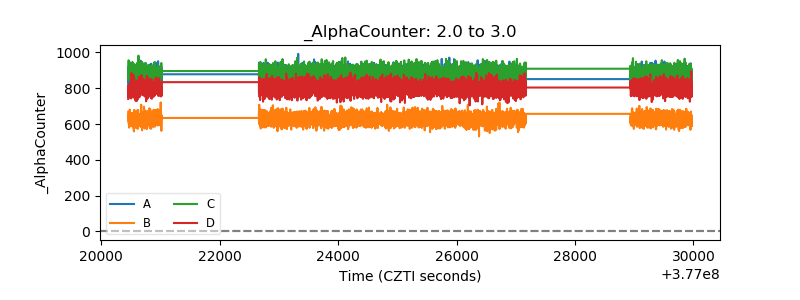

| Alpha Counter |  |
| _CPM_Rate |  |

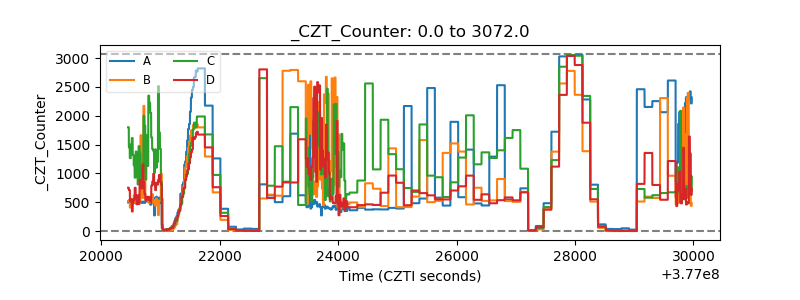

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
