| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33566cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33566cztM0_level2_quad_clean.evt |
| Size (bytes) | 646,750,080 | 72,440,640 |
| Size | 616.8 MB | 69.1 MB |
| Events in quadrant A | 4,754,582 | 434,759 |
| Events in quadrant B | 4,193,617 | 490,030 |
| Events in quadrant C | 6,209,948 | 446,214 |
| Events in quadrant D | 4,072,595 | 452,227 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17480 | 3 |
| B | 0 | 15759 | 2 |
| C | 0 | 22244 | 2 |
| D | 0 | 15715 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5279 | 810 | 15.343815% |
| B | 5279 | 565 | 10.702785% |
| C | 5279 | 654 | 12.388710% |
| D | 5279 | 121 | 2.292101% |

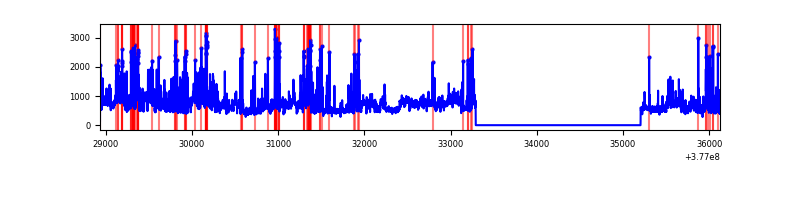

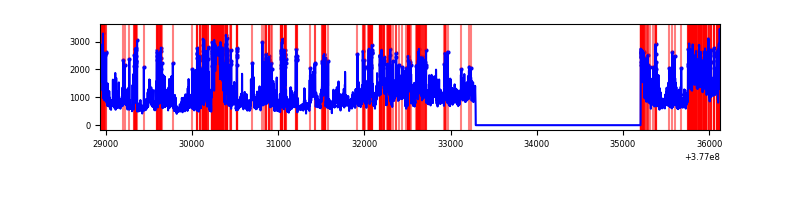

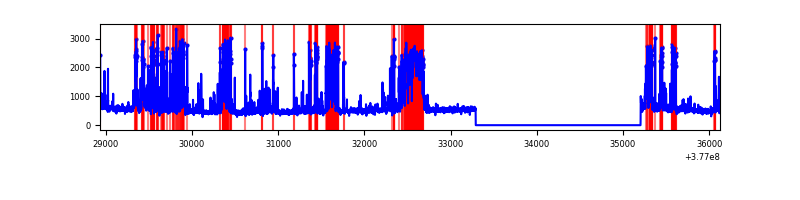

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7192 | 5280 | 711 | 711 | 9.89% | 13.47% |  |
| B | 7192 | 5280 | 477 | 477 | 6.63% | 9.03% |  |
| C | 7192 | 5280 | 606 | 606 | 8.43% | 11.48% |  |
| D | 7192 | 5280 | 107 | 107 | 1.49% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2412308 | 20107.99 | 604 | 594 | 119.9 |
| A | 13 | 254 | 9137 | 71.23 | 604 | 594 | 119.9 |
| A | 3 | 137 | 5739 | 42.9 | 604 | 594 | 119.9 |
| B | 5 | 172 | 1566907 | 13194.71 | 622 | 608 | 118.7 |
| B | 4 | 170 | 60929 | 508.15 | 622 | 608 | 118.7 |
| B | 5 | 255 | 57334 | 477.87 | 622 | 608 | 118.7 |
| C | 3 | 233 | 3198749 | 22939.84 | 602 | 607 | 139.4 |
| C | 14 | 254 | 239987 | 1717.04 | 602 | 607 | 139.4 |
| C | 15 | 214 | 219976 | 1573.5 | 602 | 607 | 139.4 |
| D | 8 | 195 | 777108 | 5123.64 | 618 | 600 | 151.6 |
| D | 2 | 250 | 378410 | 2492.91 | 618 | 600 | 151.6 |
| D | 13 | 249 | 175949 | 1157.01 | 618 | 600 | 151.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

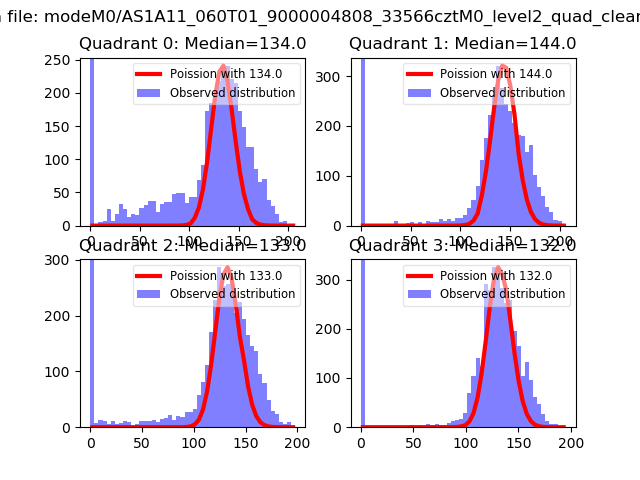

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

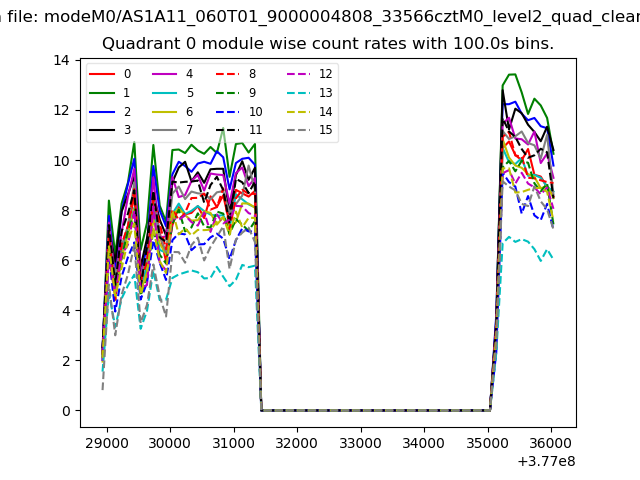

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

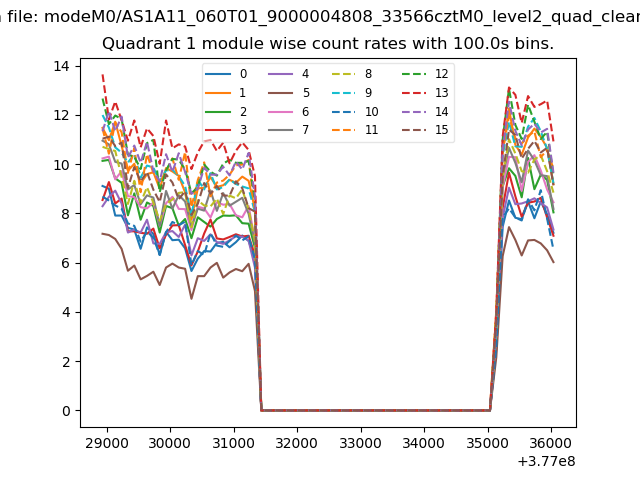

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

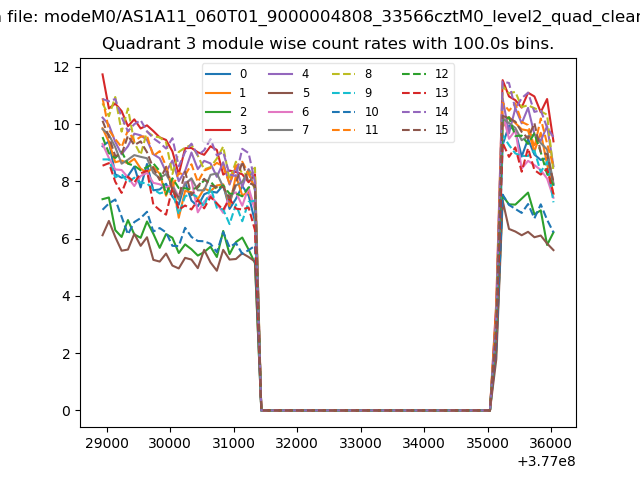

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

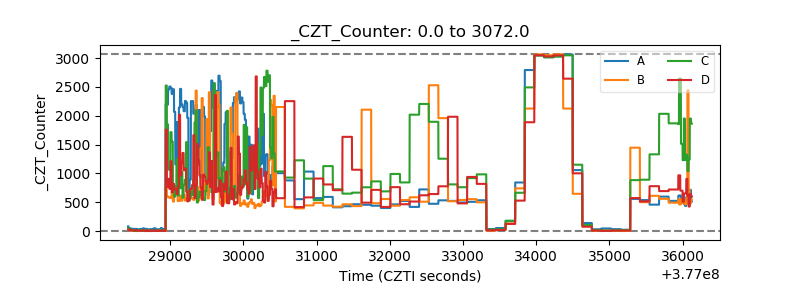

| CZT Counter |  |
