| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33569cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33569cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,127,360 | 63,673,920 |
| Size | 514.2 MB | 60.7 MB |
| Events in quadrant A | 2,703,882 | 403,056 |
| Events in quadrant B | 3,757,383 | 406,020 |
| Events in quadrant C | 4,874,920 | 382,545 |
| Events in quadrant D | 4,641,003 | 373,122 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11108 | 3 |
| B | 0 | 14283 | 2 |
| C | 0 | 18437 | 2 |
| D | 0 | 17265 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5178 | 39 | 0.753187% |
| B | 5178 | 383 | 7.396678% |
| C | 5178 | 423 | 8.169177% |
| D | 5178 | 188 | 3.630745% |

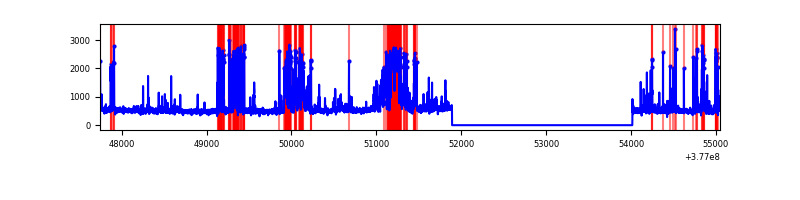

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

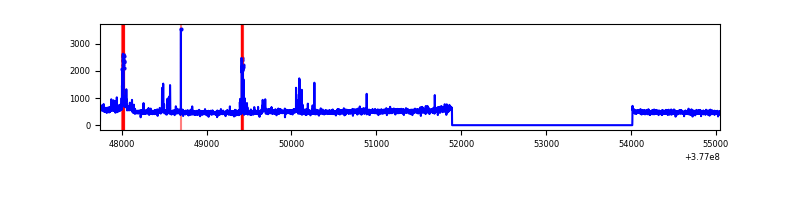

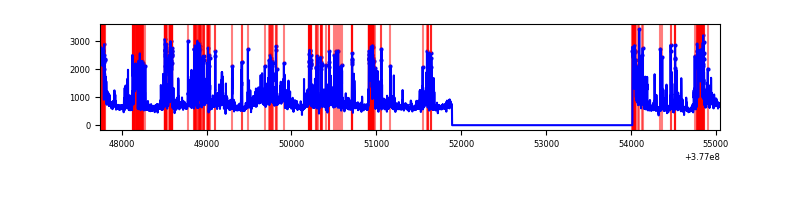

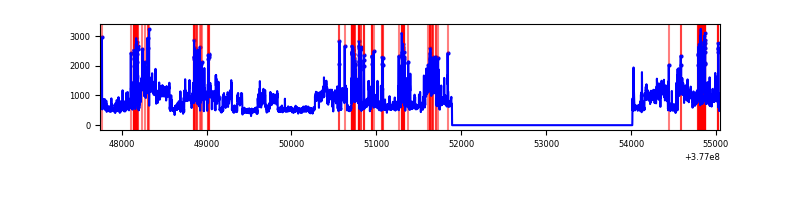

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7302 | 5179 | 26 | 26 | 0.36% | 0.50% |  |
| B | 7302 | 5179 | 287 | 287 | 3.93% | 5.54% |  |
| C | 7302 | 5179 | 377 | 377 | 5.16% | 7.28% |  |
| D | 7302 | 5179 | 164 | 164 | 2.25% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 202570 | 1580.42 | 645 | 634 | 127.8 |
| A | 13 | 254 | 9600 | 70.17 | 645 | 634 | 127.8 |
| A | 3 | 137 | 6074 | 42.58 | 645 | 634 | 127.8 |
| B | 5 | 172 | 1141965 | 9462.67 | 632 | 616 | 120.6 |
| B | 4 | 251 | 45065 | 368.52 | 632 | 616 | 120.6 |
| B | 4 | 171 | 31972 | 259.97 | 632 | 616 | 120.6 |
| C | 3 | 233 | 1077672 | 7556.94 | 622 | 629 | 142.5 |
| C | 14 | 254 | 878413 | 6158.86 | 622 | 629 | 142.5 |
| C | 15 | 214 | 217007 | 1518.19 | 622 | 629 | 142.5 |
| D | 8 | 195 | 1454776 | 9585.44 | 623 | 608 | 151.7 |
| D | 13 | 249 | 405973 | 2672.04 | 623 | 608 | 151.7 |
| D | 2 | 250 | 220234 | 1447.71 | 623 | 608 | 151.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

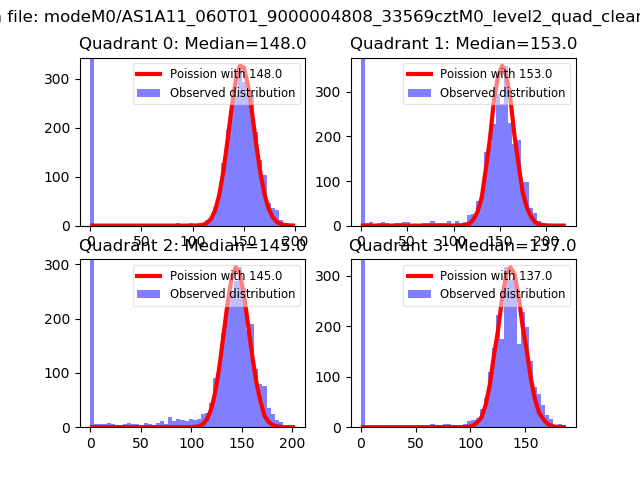

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

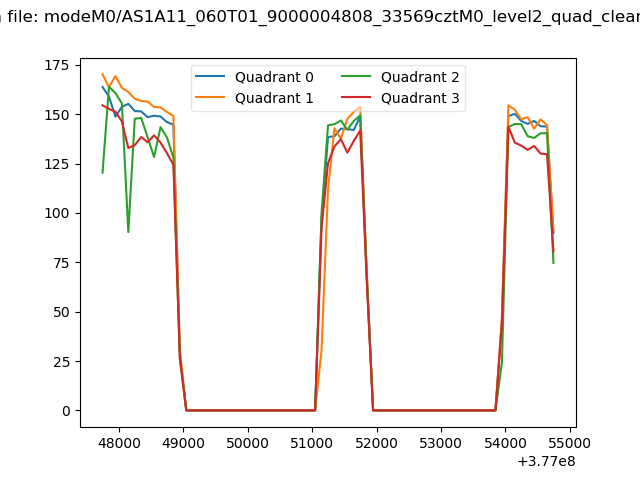

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

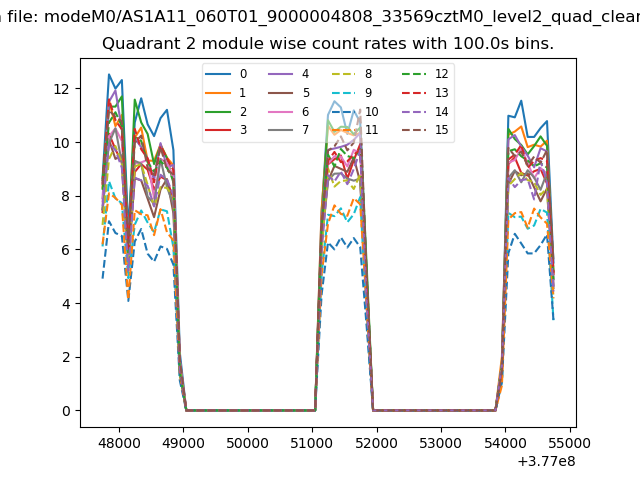

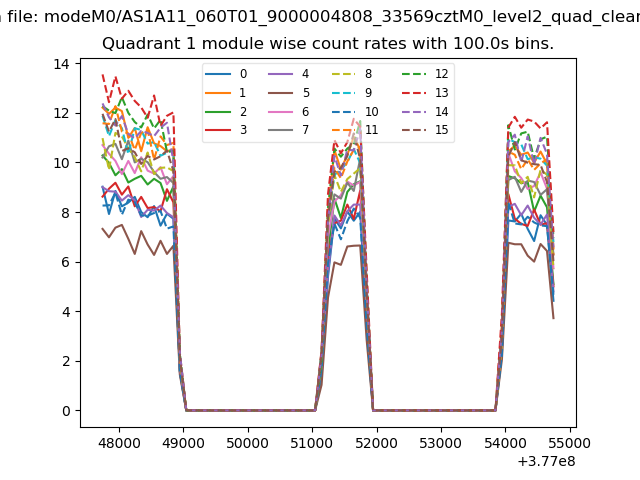

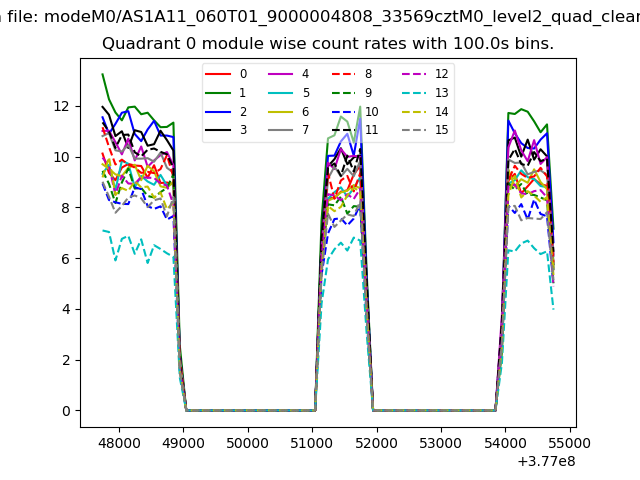

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

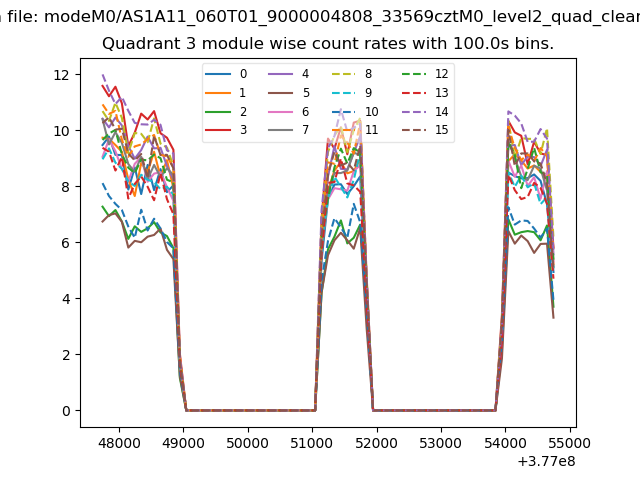

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

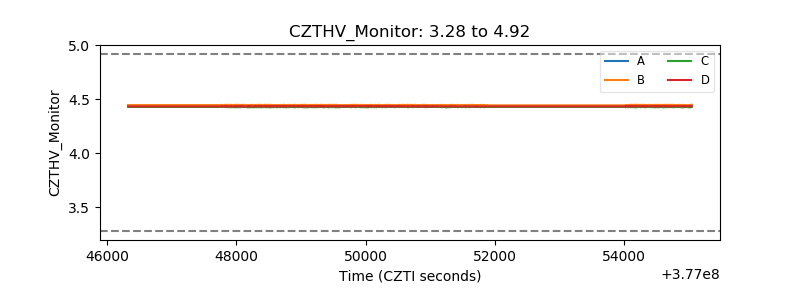

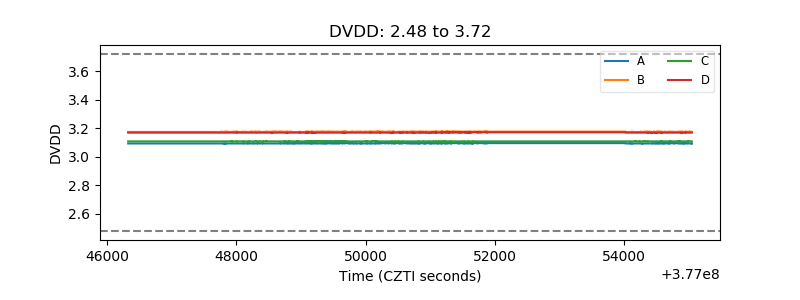

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

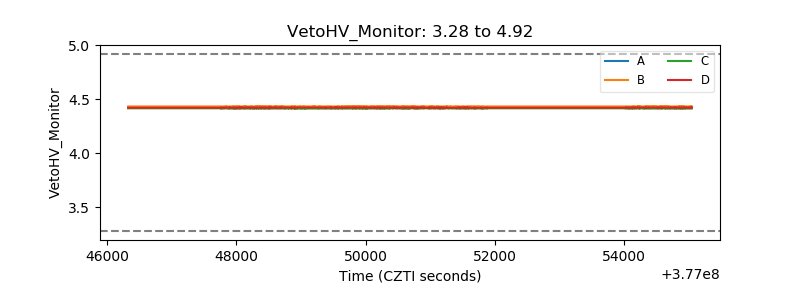

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

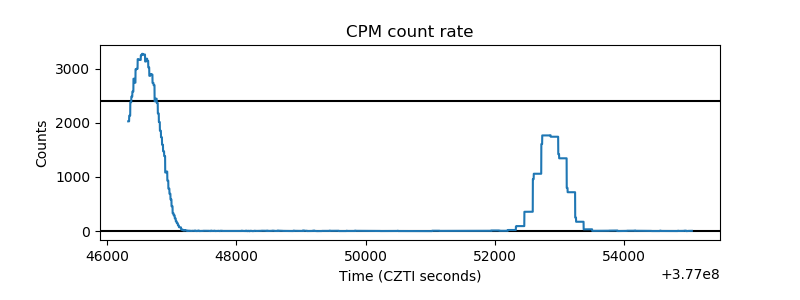

| _CPM_Rate |  |

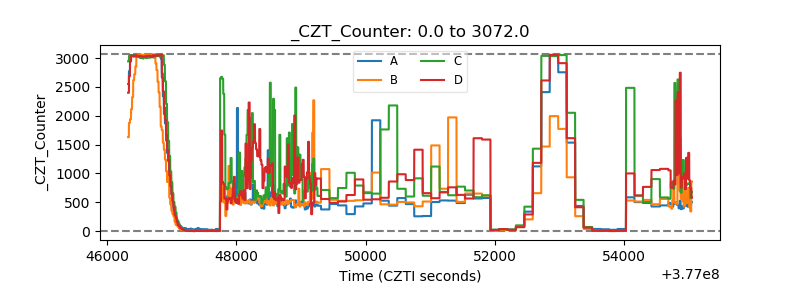

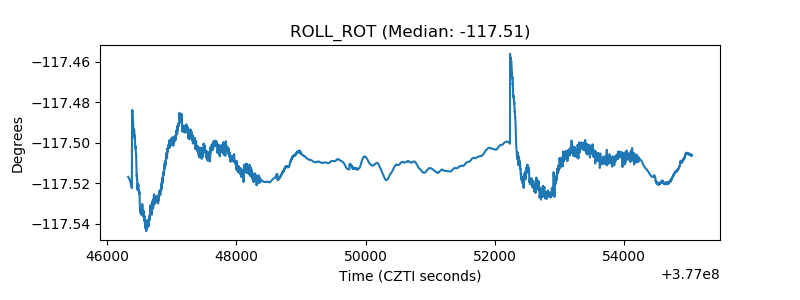

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

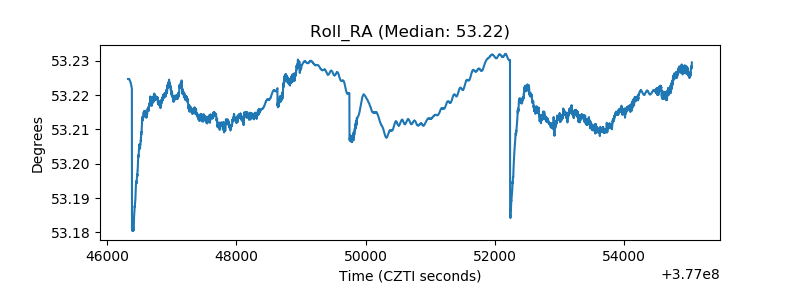

| _Roll_RA |  |
| Veto Counter |  |
