| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33570cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33570cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,589,760 | 53,231,040 |
| Size | 533.7 MB | 50.8 MB |
| Events in quadrant A | 3,472,836 | 303,295 |
| Events in quadrant B | 3,939,648 | 317,035 |
| Events in quadrant C | 4,000,435 | 323,782 |
| Events in quadrant D | 5,185,342 | 305,508 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13570 | 3 |
| B | 0 | 14880 | 2 |
| C | 0 | 15682 | 2 |
| D | 0 | 19051 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5157 | 463 | 8.978088% |
| B | 5157 | 497 | 9.637386% |
| C | 5157 | 183 | 3.548575% |
| D | 5157 | 389 | 7.543145% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7220 | 5158 | 390 | 390 | 5.40% | 7.56% |  |
| B | 7220 | 5158 | 409 | 409 | 5.66% | 7.93% |  |
| C | 7220 | 5158 | 166 | 166 | 2.30% | 3.22% |  |
| D | 7220 | 5158 | 352 | 352 | 4.88% | 6.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1127888 | 9373.57 | 605 | 594 | 120.3 |
| A | 13 | 254 | 8316 | 64.21 | 605 | 594 | 120.3 |
| A | 10 | 83 | 5938 | 44.44 | 605 | 594 | 120.3 |
| B | 5 | 172 | 1399388 | 11967.98 | 603 | 588 | 116.9 |
| B | 4 | 251 | 101744 | 865.48 | 603 | 588 | 116.9 |
| B | 4 | 171 | 28207 | 236.31 | 603 | 588 | 116.9 |
| C | 3 | 233 | 790117 | 5548.4 | 615 | 621 | 142.3 |
| C | 14 | 254 | 376312 | 2640.27 | 615 | 621 | 142.3 |
| C | 15 | 214 | 218892 | 1533.96 | 615 | 621 | 142.3 |
| D | 8 | 195 | 1256566 | 8557.19 | 598 | 581 | 146.8 |
| D | 2 | 250 | 694198 | 4725.7 | 598 | 581 | 146.8 |
| D | 13 | 249 | 510919 | 3477.0 | 598 | 581 | 146.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

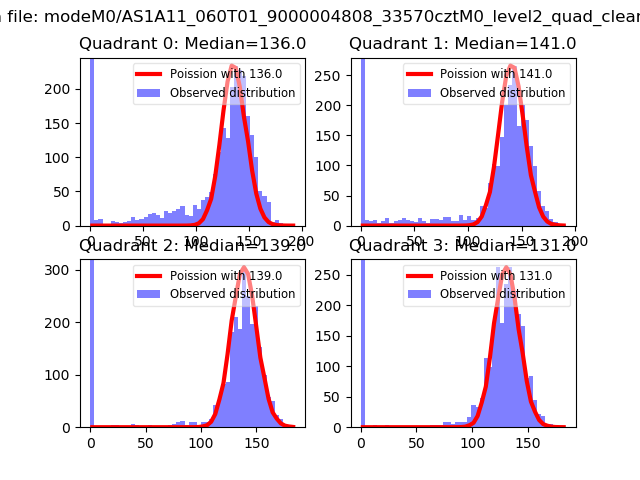

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

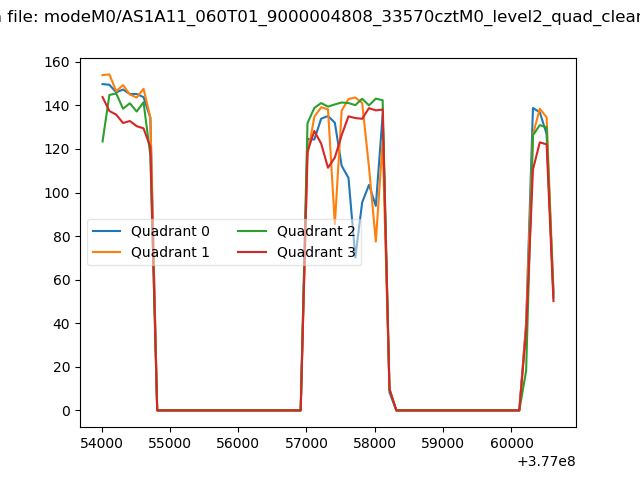

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

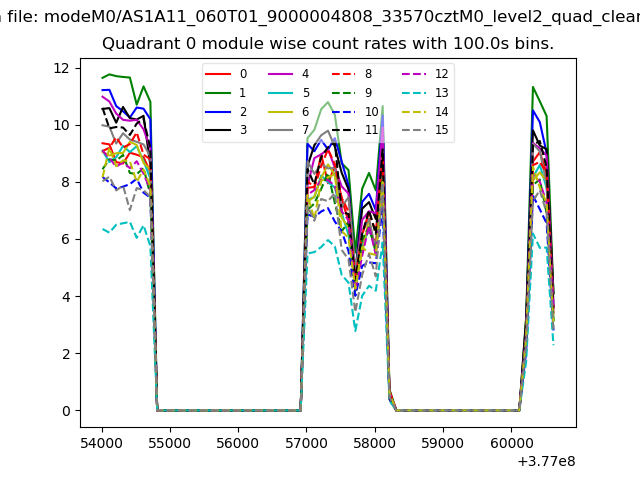

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

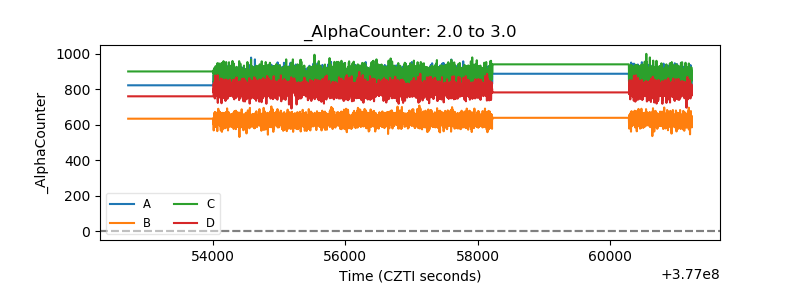

| Alpha Counter |  |
| _CPM_Rate |  |

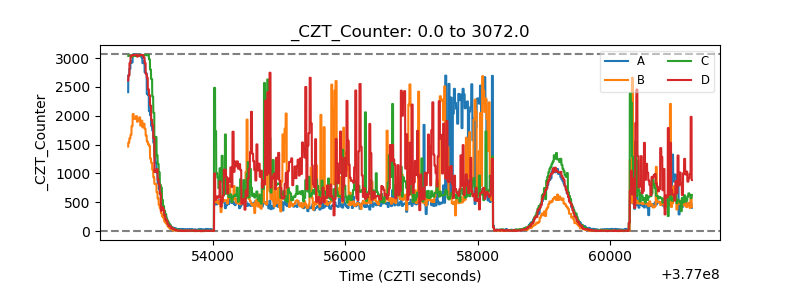

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
