| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33574cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33574cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,445,760 | 75,185,280 |
| Size | 550.7 MB | 71.7 MB |
| Events in quadrant A | 2,966,670 | 484,718 |
| Events in quadrant B | 4,115,040 | 455,991 |
| Events in quadrant C | 5,066,486 | 468,186 |
| Events in quadrant D | 4,930,240 | 444,873 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12249 | 3 |
| B | 0 | 16056 | 2 |
| C | 0 | 19520 | 2 |
| D | 0 | 18691 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6048 | 8 | 0.132275% |
| B | 6048 | 464 | 7.671958% |
| C | 6048 | 230 | 3.802910% |
| D | 6048 | 424 | 7.010582% |

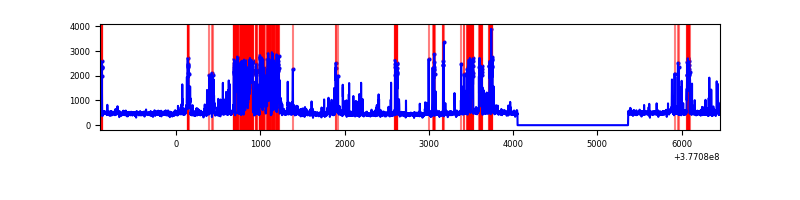

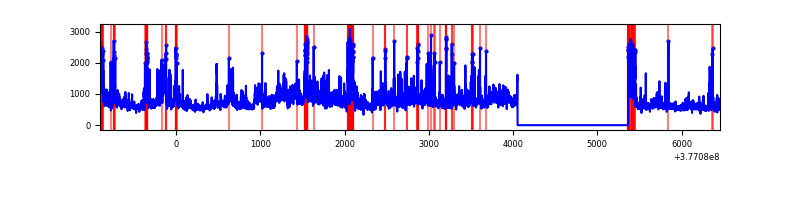

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7361 | 6049 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7361 | 6049 | 343 | 343 | 4.66% | 5.67% |  |
| C | 7361 | 6049 | 188 | 188 | 2.55% | 3.11% |  |
| D | 7361 | 6049 | 336 | 336 | 4.56% | 5.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 214269 | 1498.78 | 709 | 695 | 142.5 |
| A | 13 | 254 | 10936 | 71.87 | 709 | 695 | 142.5 |
| A | 3 | 137 | 7207 | 45.7 | 709 | 695 | 142.5 |
| B | 5 | 172 | 1237329 | 9310.15 | 681 | 661 | 132.8 |
| B | 15 | 222 | 66680 | 497.02 | 681 | 661 | 132.8 |
| B | 4 | 251 | 42624 | 315.91 | 681 | 661 | 132.8 |
| C | 3 | 233 | 1798639 | 11439.09 | 682 | 688 | 157.2 |
| C | 15 | 214 | 255530 | 1621.38 | 682 | 688 | 157.2 |
| C | 0 | 10 | 197190 | 1250.2 | 682 | 688 | 157.2 |
| D | 8 | 195 | 920575 | 5621.5 | 669 | 648 | 163.6 |
| D | 2 | 250 | 596648 | 3642.04 | 669 | 648 | 163.6 |
| D | 1 | 47 | 415062 | 2532.4 | 669 | 648 | 163.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

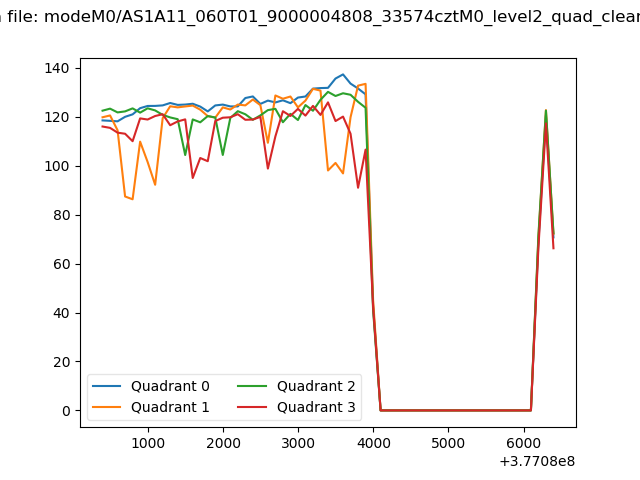

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

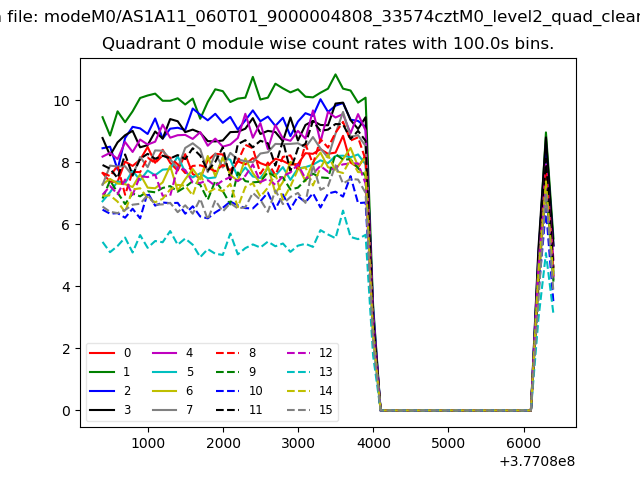

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

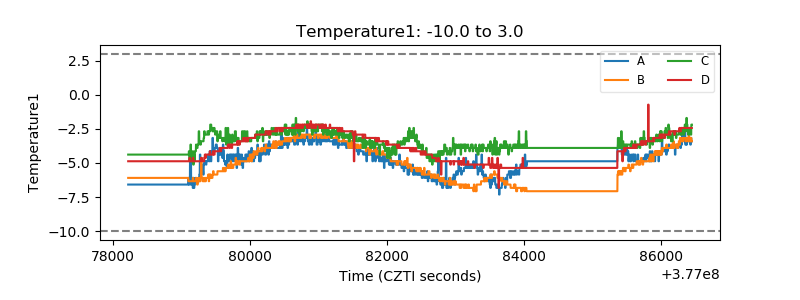

| Temperature 1 |  |
| Veto HV Monitor |  |

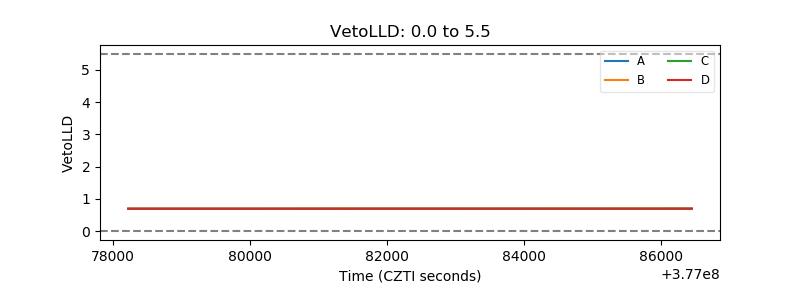

| Veto LLD |  |

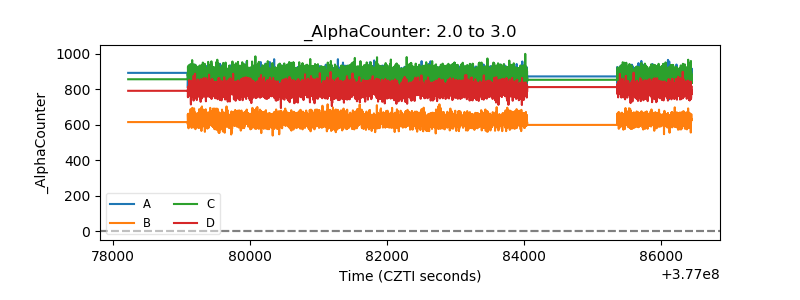

| Alpha Counter |  |

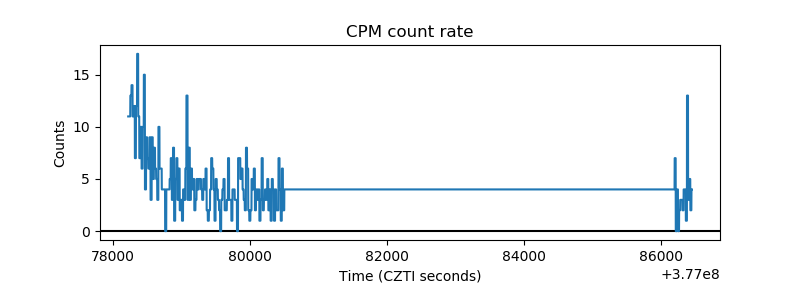

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
