| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33580cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33580cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,061,760 | 81,060,480 |
| Size | 513.1 MB | 77.3 MB |
| Events in quadrant A | 2,870,545 | 542,877 |
| Events in quadrant B | 4,065,679 | 531,800 |
| Events in quadrant C | 4,942,044 | 508,825 |
| Events in quadrant D | 4,048,820 | 490,138 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11648 | 3 |
| B | 0 | 15598 | 2 |
| C | 0 | 18620 | 2 |
| D | 0 | 15742 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5435 | 5 | 0.091996% |
| B | 5435 | 383 | 7.046918% |
| C | 5435 | 402 | 7.396504% |
| D | 5435 | 209 | 3.845446% |

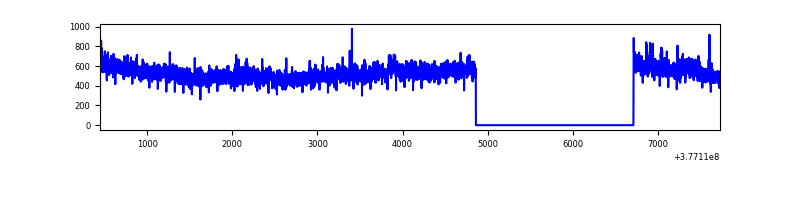

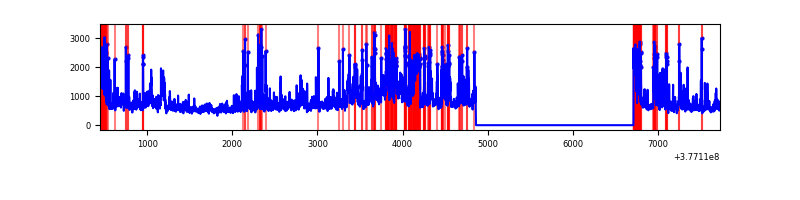

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7288 | 5436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7288 | 5436 | 321 | 321 | 4.40% | 5.91% |  |
| C | 7288 | 5436 | 307 | 307 | 4.21% | 5.65% |  |
| D | 7288 | 5436 | 211 | 211 | 2.90% | 3.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 286330 | 2152.38 | 666 | 656 | 132.7 |
| A | 13 | 254 | 9405 | 65.92 | 666 | 656 | 132.7 |
| A | 3 | 137 | 6641 | 45.09 | 666 | 656 | 132.7 |
| B | 5 | 172 | 1291582 | 10474.39 | 645 | 629 | 123.2 |
| B | 15 | 222 | 95825 | 772.39 | 645 | 629 | 123.2 |
| B | 4 | 251 | 54991 | 441.08 | 645 | 629 | 123.2 |
| C | 3 | 233 | 1796325 | 12605.24 | 618 | 623 | 142.5 |
| C | 0 | 10 | 270708 | 1895.91 | 618 | 623 | 142.5 |
| C | 14 | 254 | 237312 | 1661.48 | 618 | 623 | 142.5 |
| D | 8 | 195 | 523688 | 3429.7 | 626 | 610 | 152.5 |
| D | 15 | 0 | 330605 | 2163.7 | 626 | 610 | 152.5 |
| D | 2 | 249 | 300265 | 1964.77 | 626 | 610 | 152.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

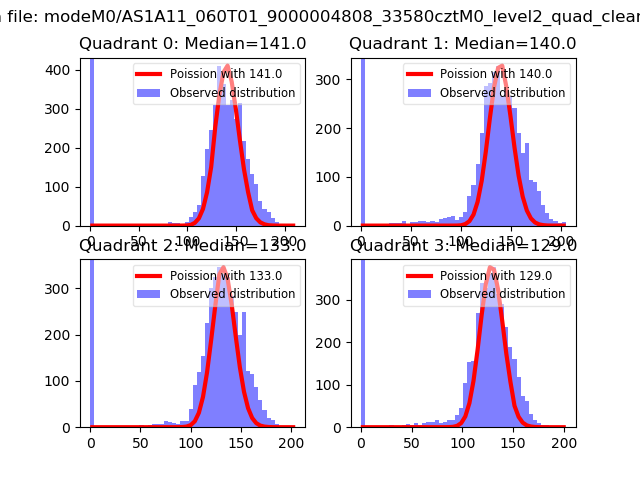

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

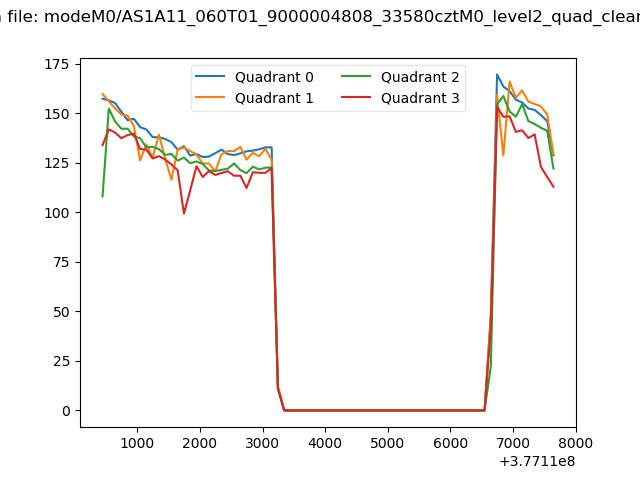

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

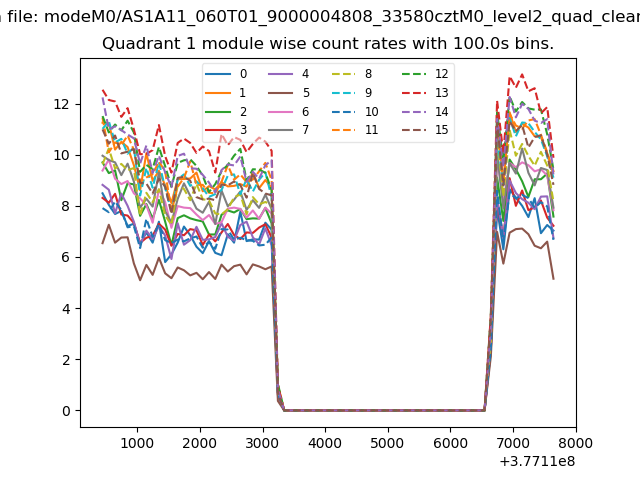

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

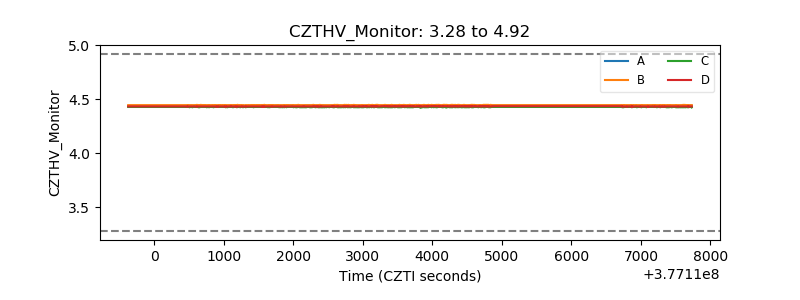

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

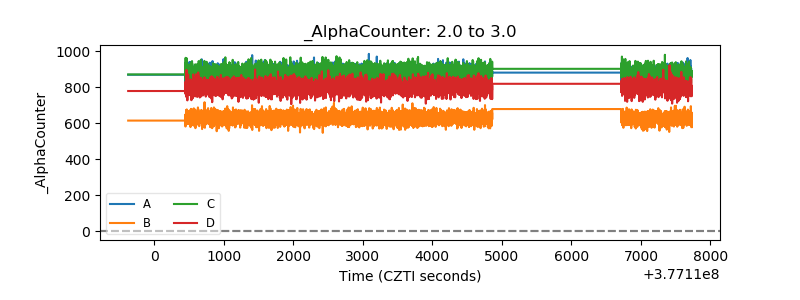

| Alpha Counter |  |

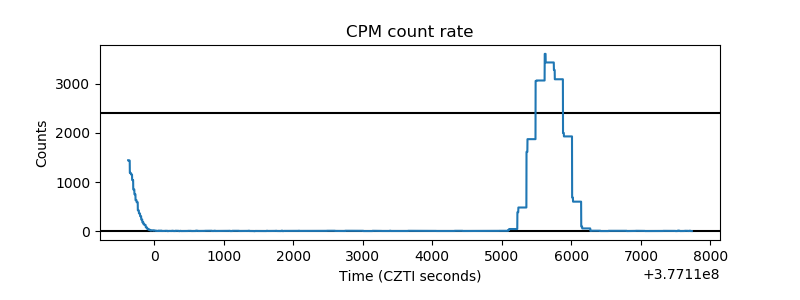

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
