| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_060T01_9000004808_33583cztM0_level2.evt | modeM0/AS1A11_060T01_9000004808_33583cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,532,160 | 67,469,760 |
| Size | 464.9 MB | 64.3 MB |
| Events in quadrant A | 2,793,816 | 435,794 |
| Events in quadrant B | 4,093,686 | 416,397 |
| Events in quadrant C | 3,774,085 | 428,222 |
| Events in quadrant D | 3,757,839 | 404,814 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11177 | 2 |
| B | 0 | 15292 | 1 |
| C | 0 | 15058 | 1 |
| D | 0 | 14779 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5108 | 35 | 0.685200% |
| B | 5108 | 527 | 10.317150% |
| C | 5108 | 117 | 2.290525% |
| D | 5108 | 110 | 2.153485% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7231 | 5109 | 25 | 25 | 0.35% | 0.49% |  |
| B | 7231 | 5108 | 437 | 437 | 6.04% | 8.56% |  |
| C | 7231 | 5109 | 102 | 102 | 1.41% | 2.00% |  |
| D | 7230 | 5108 | 112 | 112 | 1.55% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 314481 | 2456.7 | 640 | 629 | 127.8 |
| A | 13 | 254 | 7763 | 55.84 | 640 | 629 | 127.8 |
| A | 10 | 83 | 6032 | 42.29 | 640 | 629 | 127.8 |
| B | 5 | 172 | 1514789 | 12994.07 | 620 | 606 | 116.5 |
| B | 5 | 255 | 46153 | 390.86 | 620 | 606 | 116.5 |
| B | 0 | 190 | 28857 | 242.44 | 620 | 606 | 116.5 |
| C | 3 | 233 | 742847 | 5115.91 | 632 | 640 | 145.1 |
| C | 0 | 10 | 325701 | 2240.59 | 632 | 640 | 145.1 |
| C | 15 | 214 | 217221 | 1492.86 | 632 | 640 | 145.1 |
| D | 8 | 195 | 605324 | 3960.41 | 623 | 606 | 152.7 |
| D | 13 | 249 | 211371 | 1380.34 | 623 | 606 | 152.7 |
| D | 2 | 250 | 194412 | 1269.27 | 623 | 606 | 152.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

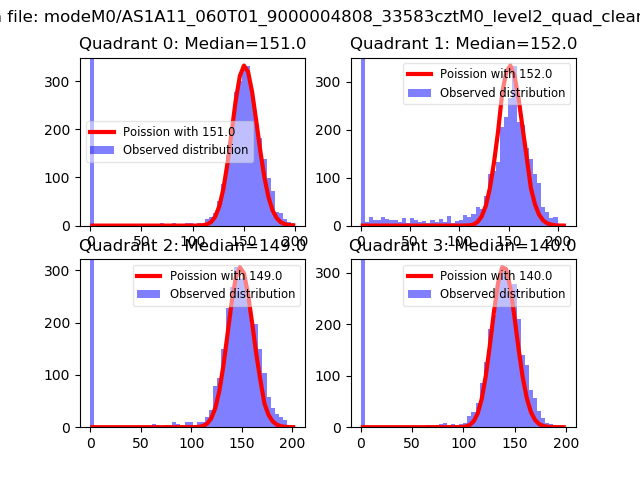

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

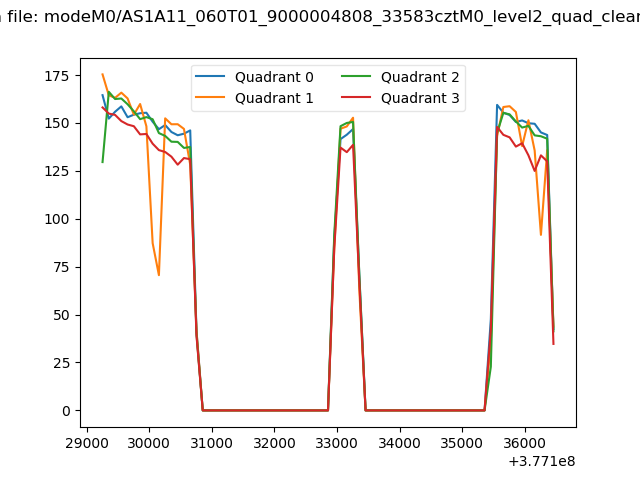

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

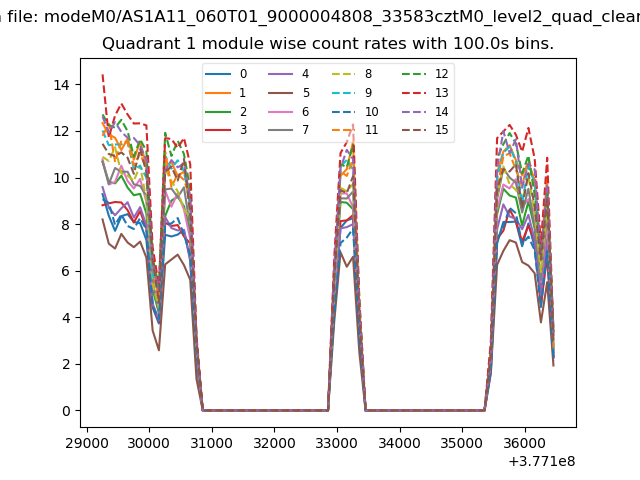

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

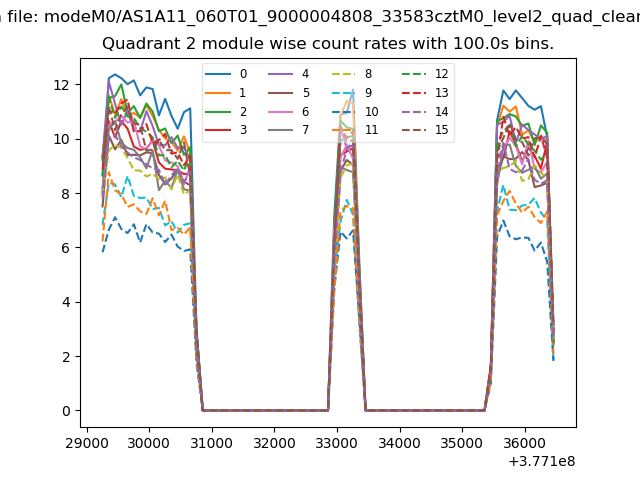

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

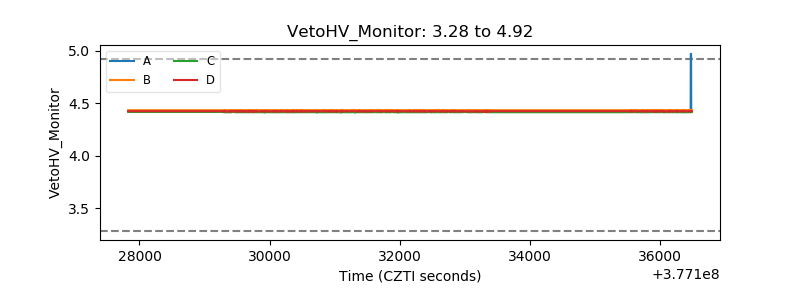

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

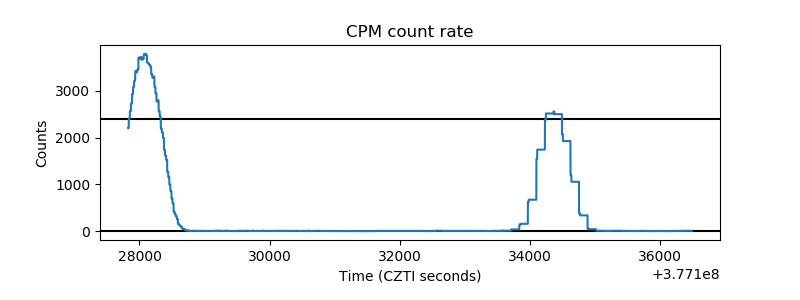

| _CPM_Rate |  |

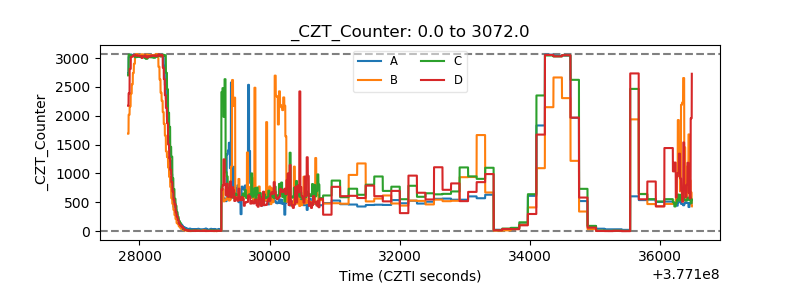

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

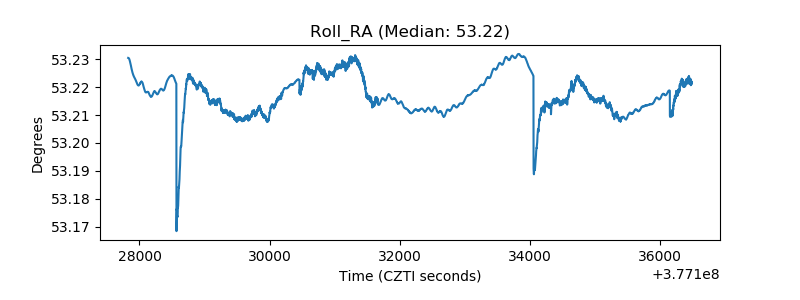

| _Roll_RA |  |
| Veto Counter |  |
