| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33606cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33606cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,545,280 | 52,430,400 |
| Size | 526.9 MB | 50.0 MB |
| Events in quadrant A | 2,744,797 | 304,389 |
| Events in quadrant B | 5,200,372 | 296,582 |
| Events in quadrant C | 3,337,408 | 299,520 |
| Events in quadrant D | 5,067,874 | 290,709 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11711 | 3 |
| B | 0 | 19132 | 2 |
| C | 0 | 13085 | 2 |
| D | 0 | 18994 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5657 | 19 | 0.335867% |
| B | 5657 | 868 | 15.343822% |
| C | 5657 | 116 | 2.050557% |
| D | 5657 | 483 | 8.538094% |

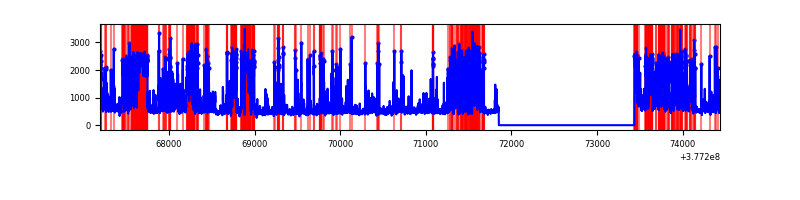

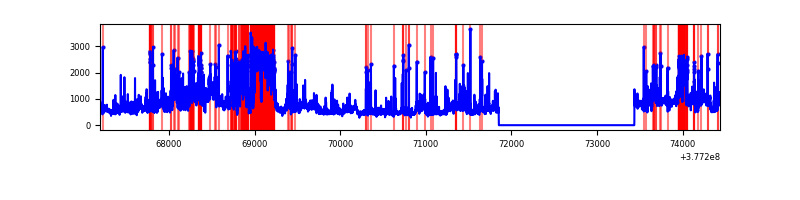

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7240 | 5658 | 10 | 10 | 0.14% | 0.18% |  |
| B | 7240 | 5658 | 687 | 687 | 9.49% | 12.14% |  |
| C | 7240 | 5658 | 103 | 103 | 1.42% | 1.82% |  |
| D | 7240 | 5658 | 433 | 433 | 5.98% | 7.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 82743 | 593.27 | 683 | 670 | 138.3 |
| A | 13 | 6 | 12383 | 84.67 | 683 | 670 | 138.3 |
| A | 13 | 254 | 10117 | 68.29 | 683 | 670 | 138.3 |
| B | 5 | 172 | 2133267 | 17349.04 | 634 | 617 | 122.9 |
| B | 0 | 213 | 137655 | 1114.8 | 634 | 617 | 122.9 |
| B | 5 | 255 | 88908 | 718.24 | 634 | 617 | 122.9 |
| C | 0 | 10 | 319912 | 2080.99 | 660 | 666 | 153.4 |
| C | 15 | 214 | 241594 | 1570.48 | 660 | 666 | 153.4 |
| C | 3 | 233 | 78607 | 508.06 | 660 | 666 | 153.4 |
| D | 8 | 195 | 849572 | 4929.28 | 644 | 628 | 172.2 |
| D | 12 | 233 | 712037 | 4130.71 | 644 | 628 | 172.2 |
| D | 1 | 52 | 401246 | 2326.14 | 644 | 628 | 172.2 |

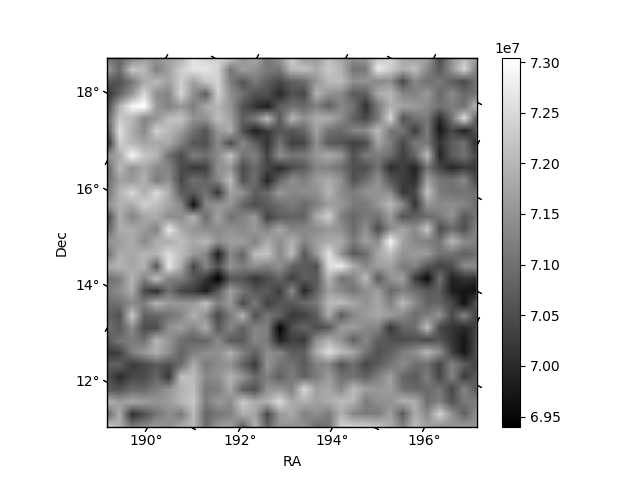

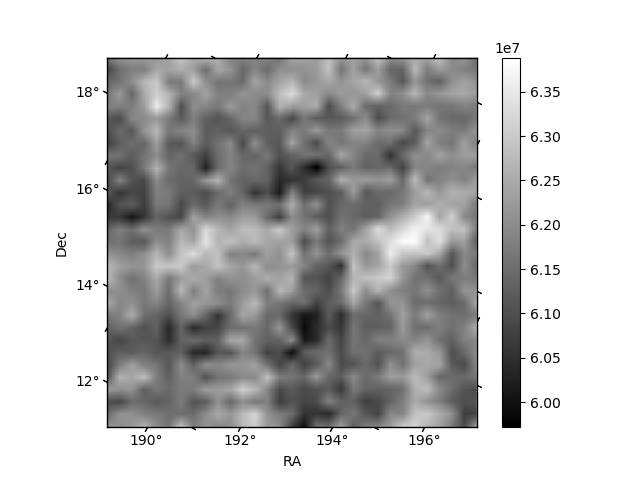

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

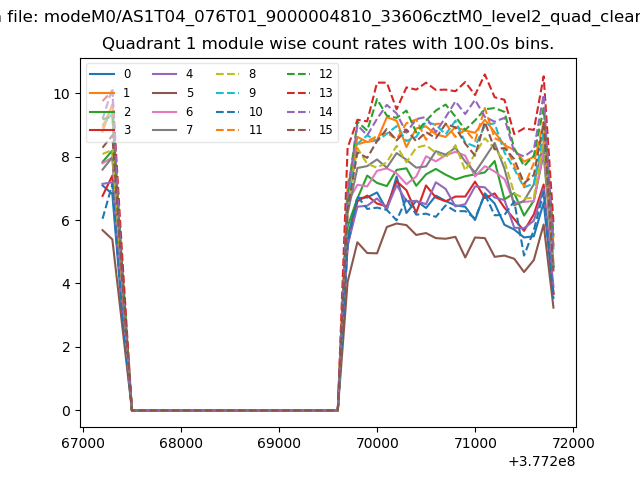

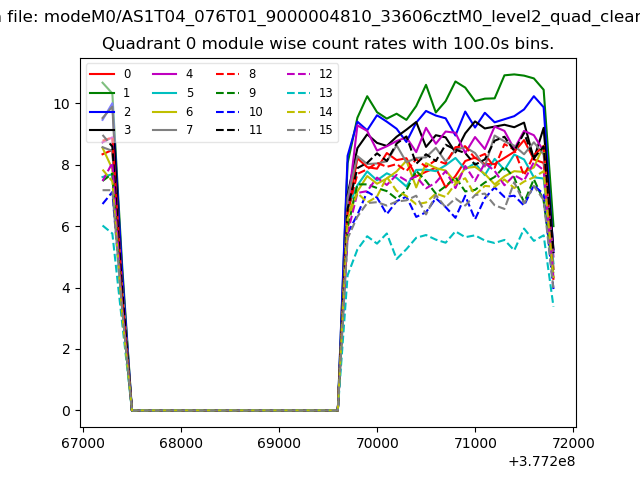

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

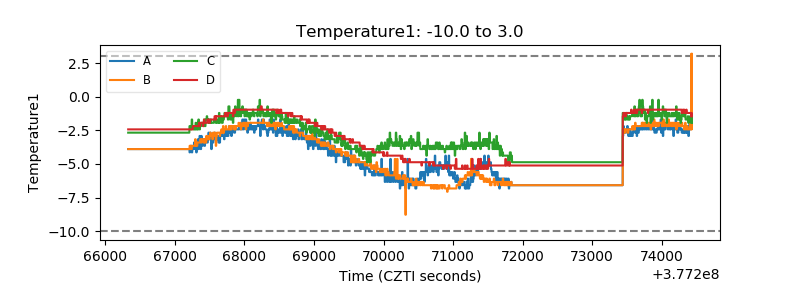

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

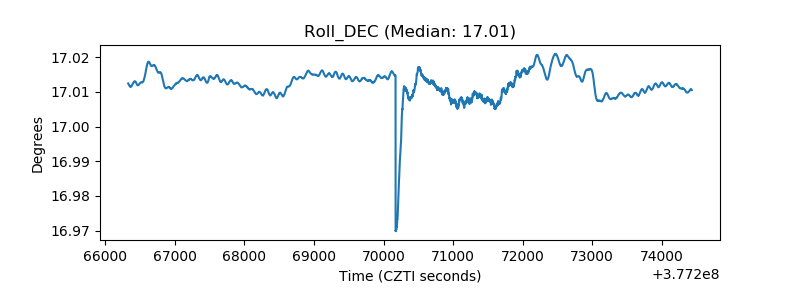

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
