| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33607cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33607cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,717,760 | 53,282,880 |
| Size | 523.3 MB | 50.8 MB |
| Events in quadrant A | 3,354,544 | 312,277 |
| Events in quadrant B | 4,430,167 | 311,118 |
| Events in quadrant C | 3,278,552 | 315,518 |
| Events in quadrant D | 5,187,695 | 294,558 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13473 | 3 |
| B | 0 | 16747 | 2 |
| C | 0 | 12974 | 2 |
| D | 0 | 19098 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5422 | 144 | 2.655847% |
| B | 5422 | 565 | 10.420509% |
| C | 5422 | 126 | 2.323866% |
| D | 5422 | 402 | 7.414238% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7125 | 5423 | 99 | 99 | 1.39% | 1.83% |  |
| B | 7125 | 5422 | 415 | 415 | 5.82% | 7.65% |  |
| C | 7125 | 5423 | 101 | 101 | 1.42% | 1.86% |  |
| D | 7125 | 5423 | 358 | 358 | 5.02% | 6.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 713224 | 5324.7 | 668 | 655 | 133.8 |
| A | 15 | 237 | 38000 | 279.06 | 668 | 655 | 133.8 |
| A | 13 | 6 | 18078 | 130.19 | 668 | 655 | 133.8 |
| B | 5 | 172 | 1355698 | 10928.13 | 645 | 629 | 124.0 |
| B | 4 | 170 | 159473 | 1281.02 | 645 | 629 | 124.0 |
| B | 4 | 251 | 63401 | 506.23 | 645 | 629 | 124.0 |
| C | 0 | 10 | 267065 | 1774.78 | 651 | 657 | 150.1 |
| C | 15 | 214 | 232190 | 1542.45 | 651 | 657 | 150.1 |
| C | 4 | 0 | 73356 | 484.31 | 651 | 657 | 150.1 |
| D | 8 | 195 | 1359765 | 7984.76 | 636 | 621 | 170.2 |
| D | 1 | 52 | 437389 | 2565.94 | 636 | 621 | 170.2 |
| D | 1 | 47 | 371504 | 2178.88 | 636 | 621 | 170.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

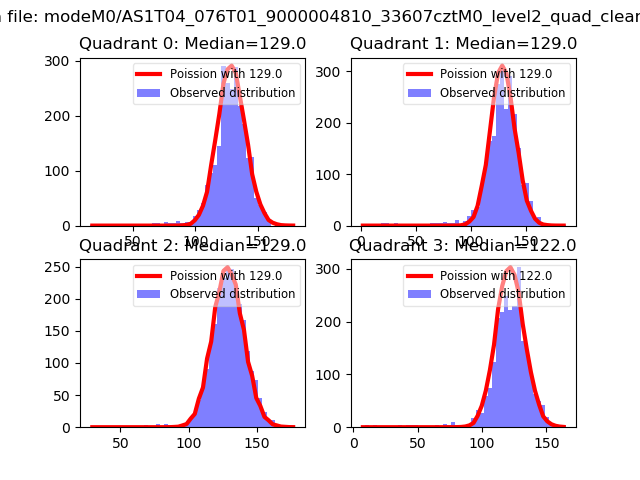

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

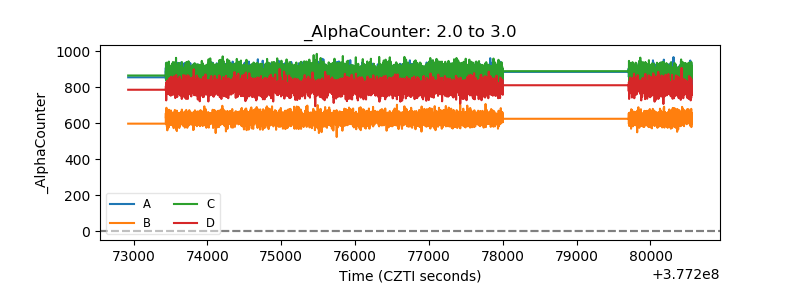

| Alpha Counter |  |

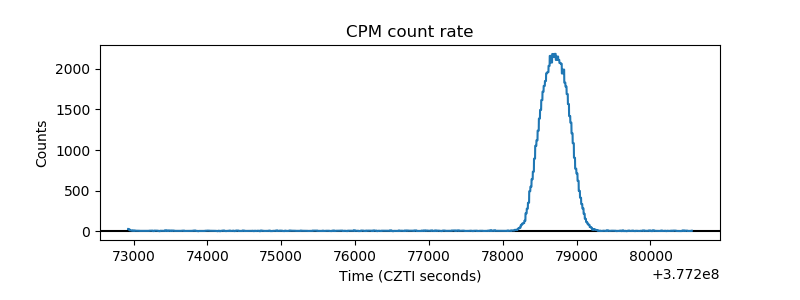

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

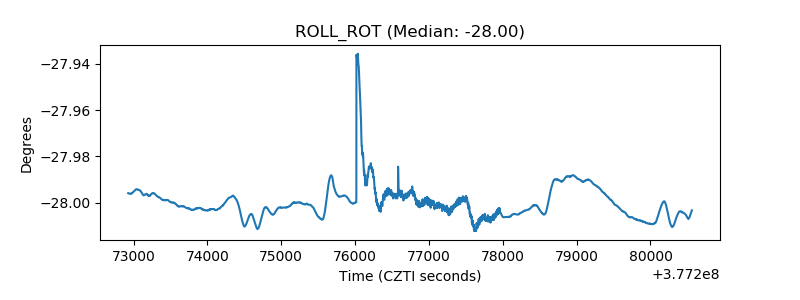

| _ROLL_ROT |  |

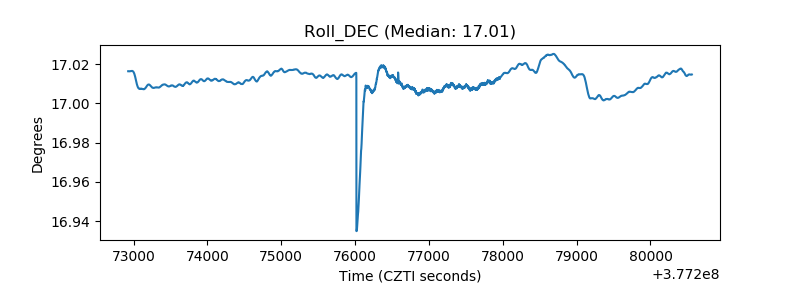

| _Roll_DEC |  |

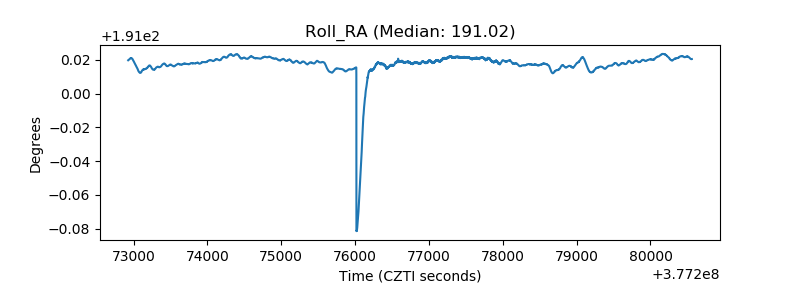

| _Roll_RA |  |
| Veto Counter |  |
