| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33639cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33639cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,792,320 | 65,059,200 |
| Size | 476.6 MB | 62.0 MB |
| Events in quadrant A | 2,747,155 | 408,515 |
| Events in quadrant B | 4,583,649 | 395,855 |
| Events in quadrant C | 3,467,737 | 414,216 |
| Events in quadrant D | 3,982,931 | 384,473 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11457 | 3 |
| B | 0 | 17008 | 2 |
| C | 0 | 13956 | 2 |
| D | 0 | 15648 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5238 | 7 | 0.133639% |
| B | 5238 | 748 | 14.280260% |
| C | 5238 | 102 | 1.947308% |
| D | 5238 | 201 | 3.837342% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7210 | 5239 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7210 | 5239 | 602 | 602 | 8.35% | 11.49% |  |
| C | 7210 | 5239 | 80 | 80 | 1.11% | 1.53% |  |
| D | 7210 | 5239 | 190 | 190 | 2.64% | 3.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 9403 | 61.67 | 707 | 698 | 141.2 |
| A | 10 | 83 | 8797 | 57.37 | 707 | 698 | 141.2 |
| A | 13 | 254 | 8126 | 52.62 | 707 | 698 | 141.2 |
| B | 5 | 172 | 1791251 | 14695.75 | 657 | 644 | 121.8 |
| B | 0 | 219 | 42915 | 346.92 | 657 | 644 | 121.8 |
| B | 5 | 200 | 41495 | 335.27 | 657 | 644 | 121.8 |
| C | 15 | 214 | 243275 | 1536.68 | 691 | 699 | 157.9 |
| C | 0 | 10 | 221420 | 1398.23 | 691 | 699 | 157.9 |
| C | 3 | 233 | 205087 | 1294.77 | 691 | 699 | 157.9 |
| D | 13 | 249 | 596260 | 3506.85 | 679 | 665 | 169.8 |
| D | 8 | 195 | 496415 | 2918.97 | 679 | 665 | 169.8 |
| D | 7 | 223 | 60145 | 350.22 | 679 | 665 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

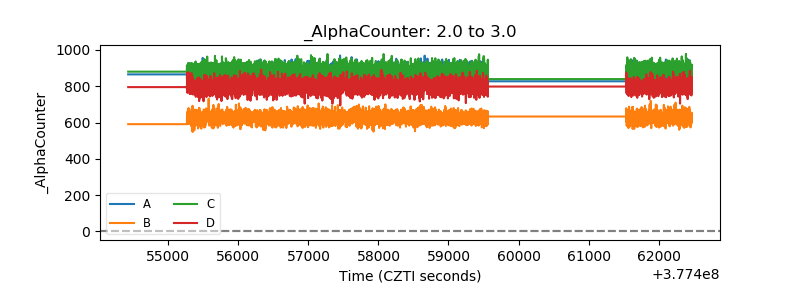

| Alpha Counter |  |

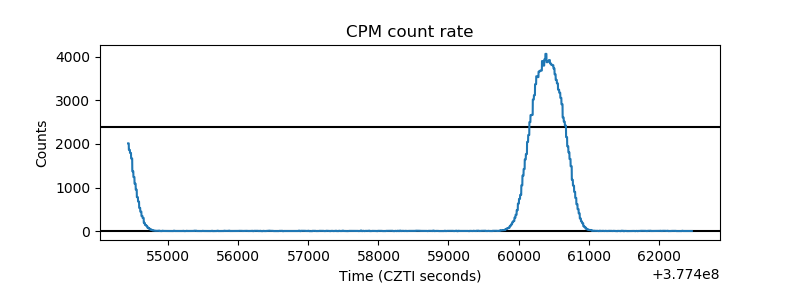

| _CPM_Rate |  |

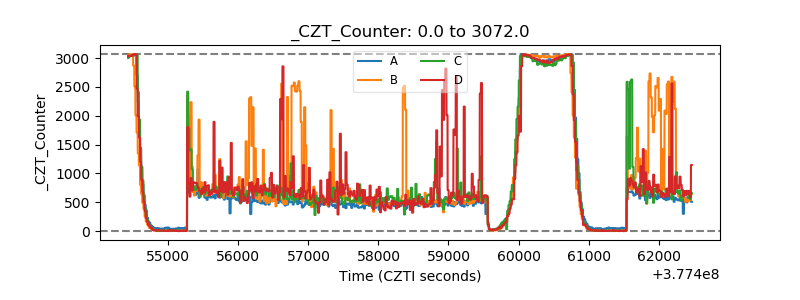

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

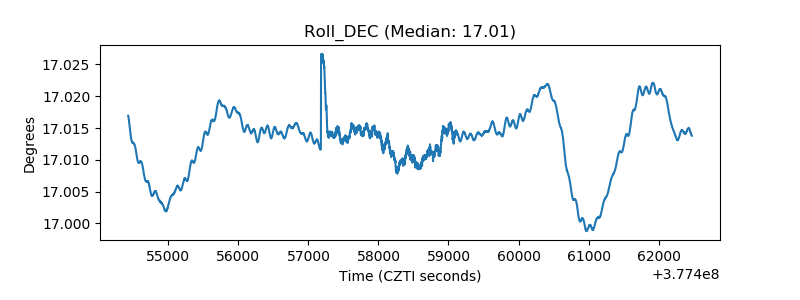

| _Roll_DEC |  |

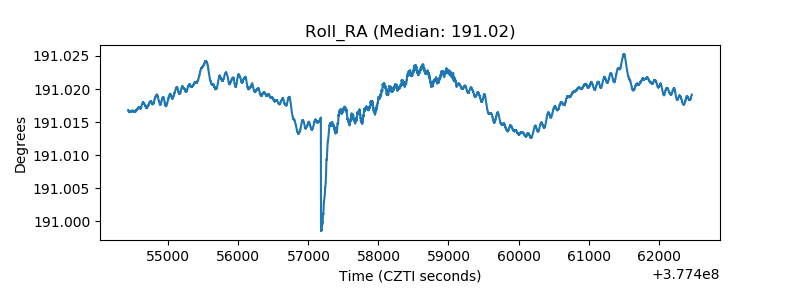

| _Roll_RA |  |
| Veto Counter |  |
