| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33642cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33642cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,977,920 | 90,714,240 |
| Size | 397.7 MB | 86.5 MB |
| Events in quadrant A | 2,358,443 | 613,528 |
| Events in quadrant B | 3,475,537 | 608,515 |
| Events in quadrant C | 3,023,566 | 611,716 |
| Events in quadrant D | 3,439,640 | 571,451 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9963 | 3 |
| B | 0 | 13509 | 2 |
| C | 0 | 11925 | 2 |
| D | 0 | 13581 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4879 | 2 | 0.040992% |
| B | 4879 | 311 | 6.374257% |
| C | 4879 | 121 | 2.480016% |
| D | 4879 | 116 | 2.377536% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7000 | 4880 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7000 | 4880 | 236 | 236 | 3.37% | 4.84% |  |
| C | 7000 | 4880 | 105 | 105 | 1.50% | 2.15% |  |
| D | 7000 | 4880 | 121 | 121 | 1.73% | 2.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7884 | 59.08 | 607 | 596 | 123.4 |
| A | 13 | 254 | 7286 | 54.23 | 607 | 596 | 123.4 |
| A | 13 | 6 | 6806 | 50.34 | 607 | 596 | 123.4 |
| B | 5 | 172 | 839110 | 7332.52 | 597 | 583 | 114.4 |
| B | 0 | 213 | 99249 | 862.79 | 597 | 583 | 114.4 |
| B | 15 | 222 | 50579 | 437.19 | 597 | 583 | 114.4 |
| C | 0 | 10 | 304488 | 2233.22 | 588 | 594 | 136.1 |
| C | 15 | 214 | 226075 | 1656.99 | 588 | 594 | 136.1 |
| C | 14 | 254 | 113194 | 827.46 | 588 | 594 | 136.1 |
| D | 8 | 195 | 365469 | 2319.31 | 575 | 565 | 157.3 |
| D | 2 | 250 | 278832 | 1768.65 | 575 | 565 | 157.3 |
| D | 7 | 80 | 117210 | 741.39 | 575 | 565 | 157.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

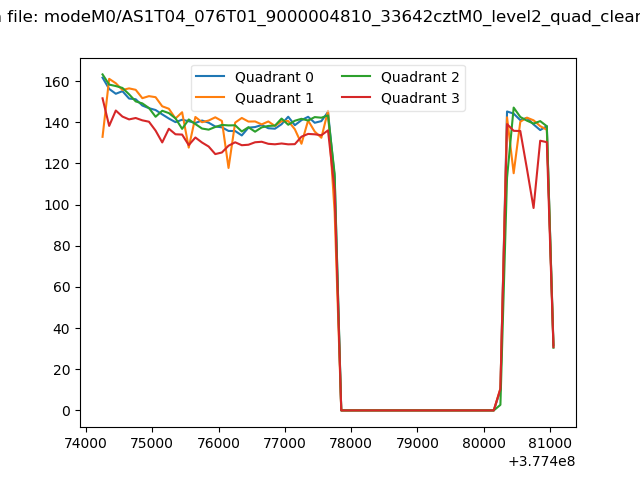

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

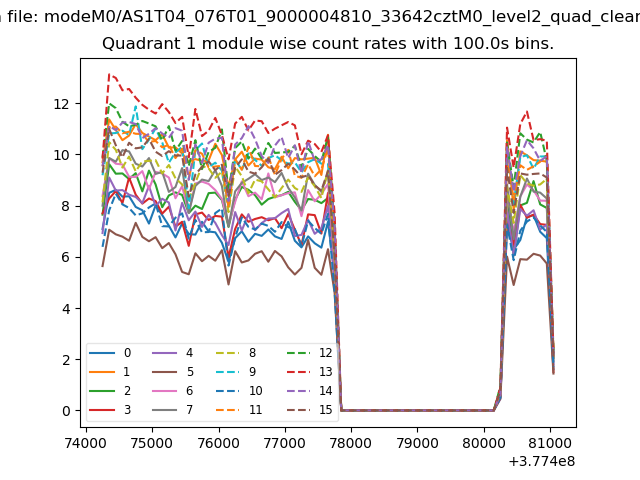

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

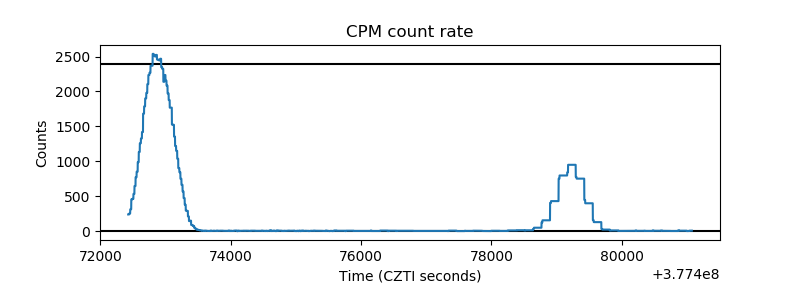

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

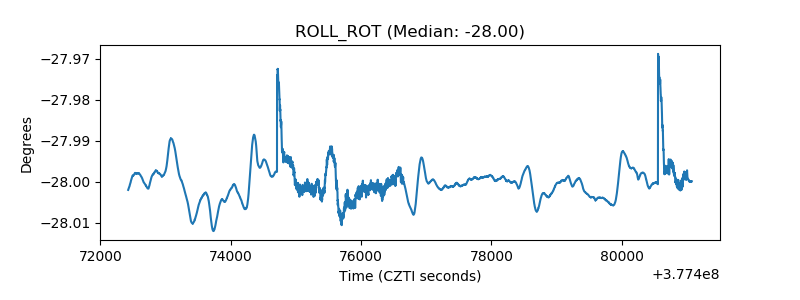

| _ROLL_ROT |  |

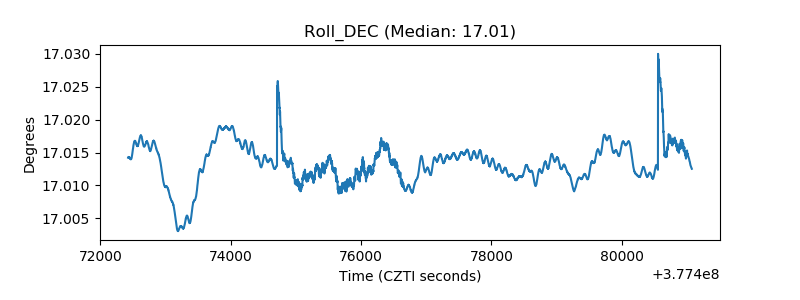

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
