| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33644cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33644cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,093,760 | 77,520,960 |
| Size | 465.5 MB | 73.9 MB |
| Events in quadrant A | 2,616,820 | 498,507 |
| Events in quadrant B | 4,382,483 | 484,663 |
| Events in quadrant C | 3,514,348 | 496,653 |
| Events in quadrant D | 3,878,818 | 466,022 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11593 | 3 |
| B | 0 | 16835 | 2 |
| C | 0 | 14061 | 2 |
| D | 0 | 15351 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5737 | 7 | 0.122015% |
| B | 5737 | 484 | 8.436465% |
| C | 5737 | 100 | 1.743071% |
| D | 5737 | 164 | 2.858637% |

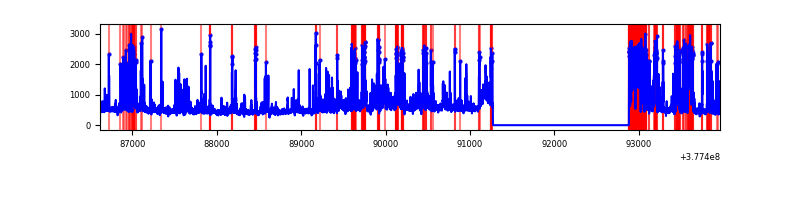

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7349 | 5738 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7349 | 5738 | 395 | 395 | 5.37% | 6.88% |  |
| C | 7349 | 5738 | 84 | 84 | 1.14% | 1.46% |  |
| D | 7349 | 5738 | 150 | 150 | 2.04% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 11022 | 76.41 | 670 | 658 | 135.6 |
| A | 13 | 6 | 8932 | 61.0 | 670 | 658 | 135.6 |
| A | 13 | 254 | 8265 | 56.08 | 670 | 658 | 135.6 |
| B | 5 | 172 | 1481259 | 11913.04 | 648 | 632 | 124.3 |
| B | 0 | 213 | 142198 | 1139.03 | 648 | 632 | 124.3 |
| B | 15 | 222 | 43808 | 347.39 | 648 | 632 | 124.3 |
| C | 3 | 233 | 422067 | 2783.14 | 649 | 657 | 151.4 |
| C | 15 | 214 | 263035 | 1732.84 | 649 | 657 | 151.4 |
| C | 0 | 10 | 221518 | 1458.65 | 649 | 657 | 151.4 |
| D | 8 | 195 | 686101 | 4196.03 | 639 | 624 | 163.4 |
| D | 13 | 249 | 436960 | 2670.96 | 639 | 624 | 163.4 |
| D | 7 | 223 | 63095 | 382.4 | 639 | 624 | 163.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

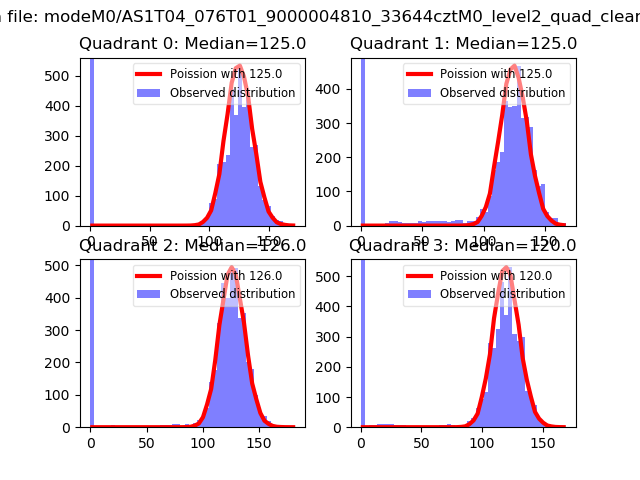

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

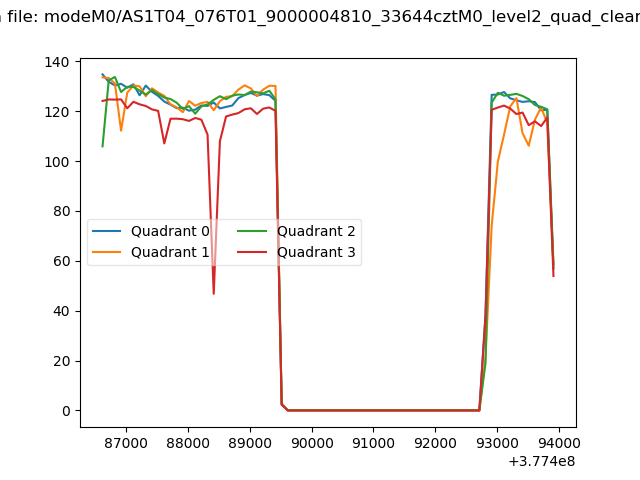

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

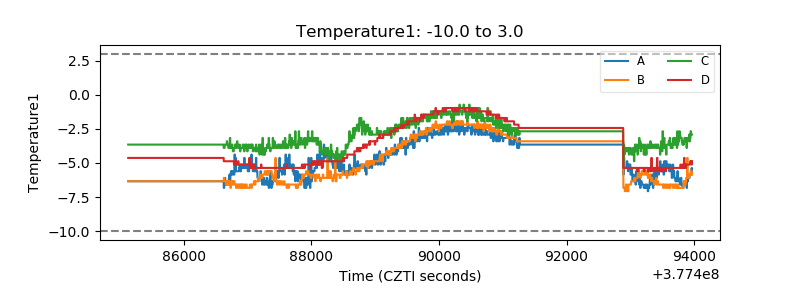

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

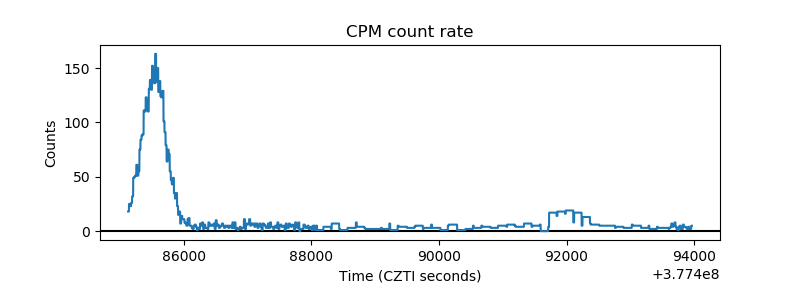

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

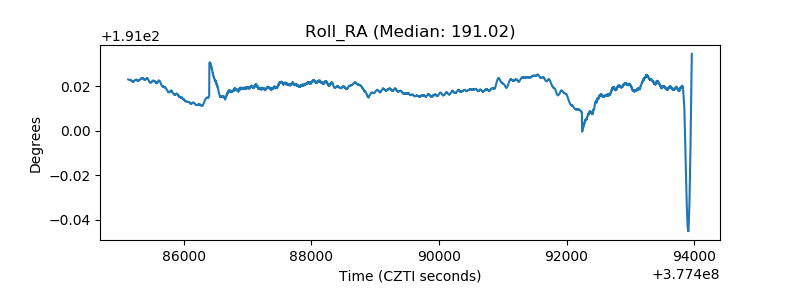

| _Roll_RA |  |

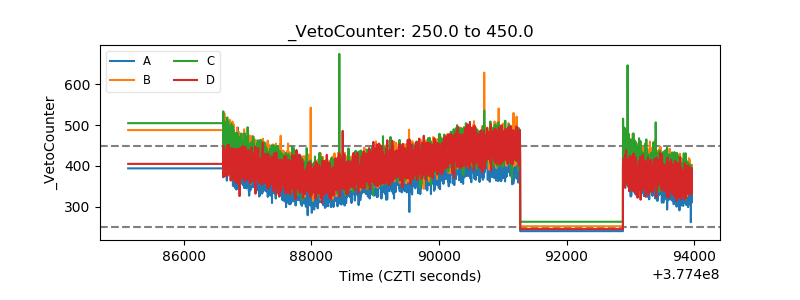

| Veto Counter |  |
