| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33654cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33654cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,580,480 | 66,242,880 |
| Size | 594.7 MB | 63.2 MB |
| Events in quadrant A | 5,245,893 | 405,605 |
| Events in quadrant B | 4,361,546 | 412,348 |
| Events in quadrant C | 4,336,524 | 430,124 |
| Events in quadrant D | 4,602,370 | 405,046 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19141 | 3 |
| B | 0 | 16390 | 2 |
| C | 0 | 16777 | 2 |
| D | 0 | 17269 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5022 | 593 | 11.808045% |
| B | 5022 | 542 | 10.792513% |
| C | 5022 | 253 | 5.037834% |
| D | 5022 | 194 | 3.863003% |

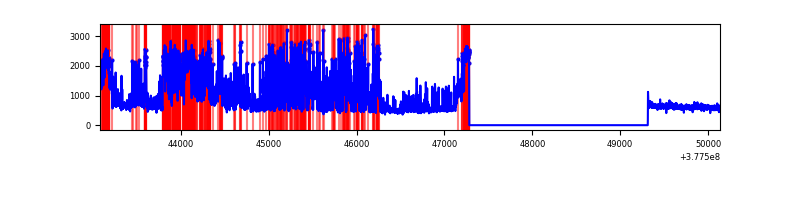

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

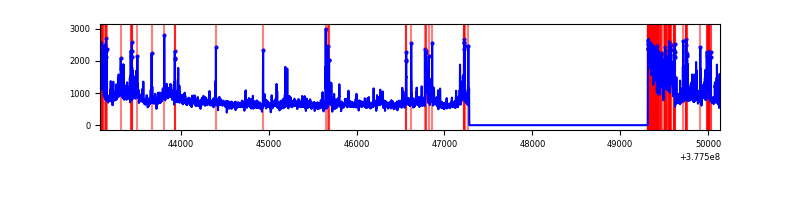

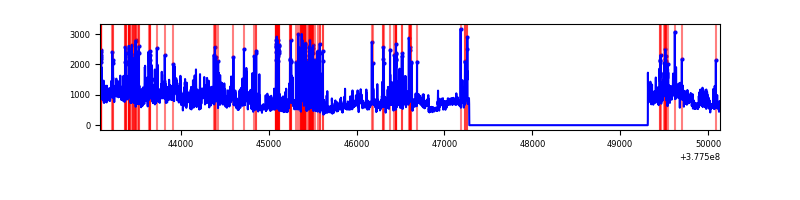

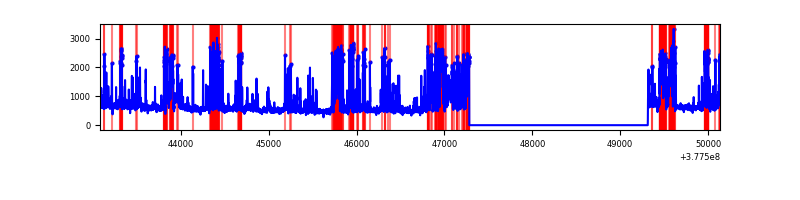

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7054 | 5022 | 525 | 525 | 7.44% | 10.45% |  |
| B | 7053 | 5021 | 416 | 416 | 5.90% | 8.29% |  |
| C | 7054 | 5023 | 187 | 187 | 2.65% | 3.72% |  |
| D | 7054 | 5023 | 174 | 174 | 2.47% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2261855 | 17238.19 | 656 | 648 | 131.2 |
| A | 15 | 237 | 433550 | 3300.21 | 656 | 648 | 131.2 |
| A | 13 | 254 | 8590 | 60.55 | 656 | 648 | 131.2 |
| B | 5 | 172 | 1271105 | 10387.83 | 656 | 643 | 122.3 |
| B | 0 | 229 | 390036 | 3183.84 | 656 | 643 | 122.3 |
| B | 5 | 200 | 31550 | 252.71 | 656 | 643 | 122.3 |
| C | 3 | 233 | 1272957 | 8497.31 | 661 | 671 | 149.7 |
| C | 15 | 214 | 228271 | 1520.09 | 661 | 671 | 149.7 |
| C | 0 | 10 | 205604 | 1368.7 | 661 | 671 | 149.7 |
| D | 8 | 195 | 971568 | 5871.59 | 660 | 647 | 165.4 |
| D | 7 | 223 | 242567 | 1463.0 | 660 | 647 | 165.4 |
| D | 13 | 249 | 207148 | 1248.8 | 660 | 647 | 165.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

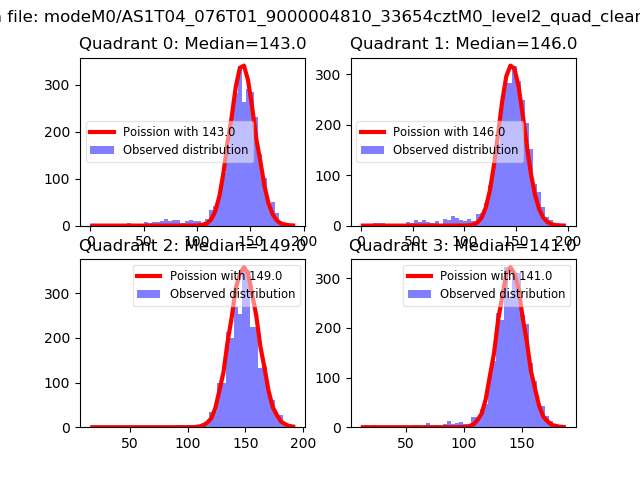

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

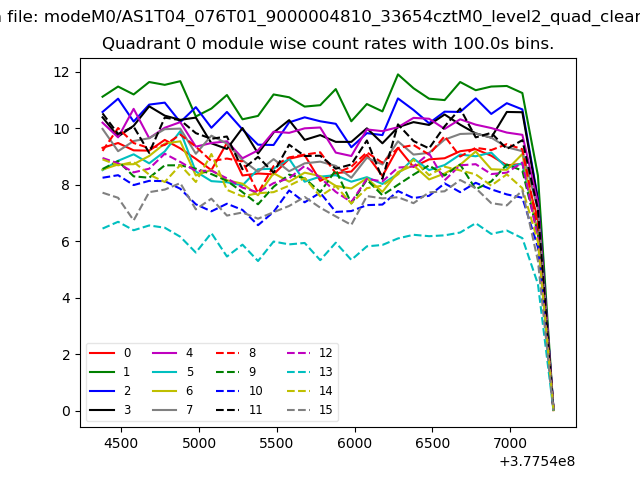

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

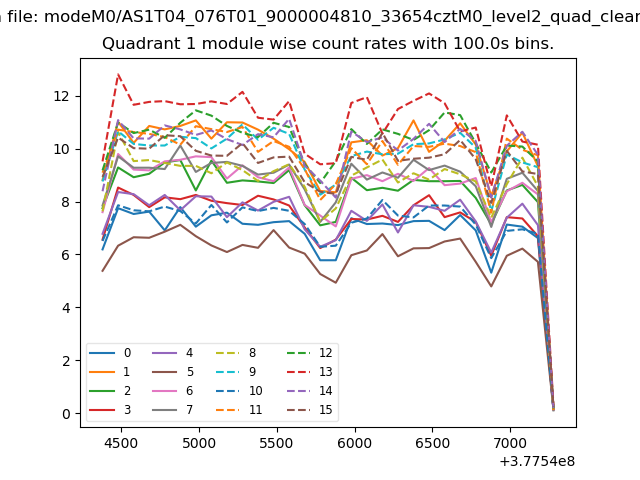

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

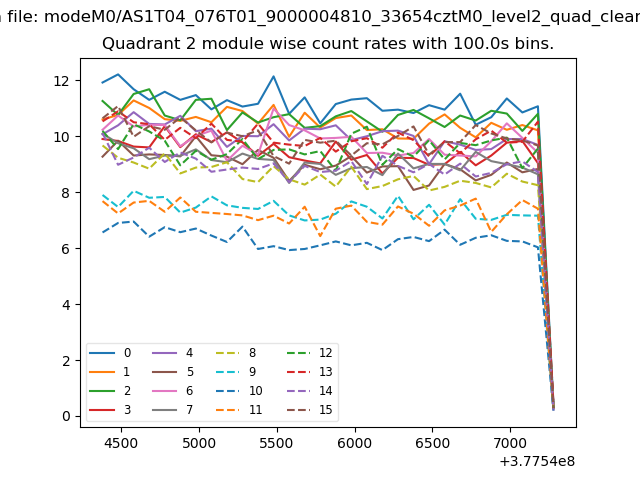

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

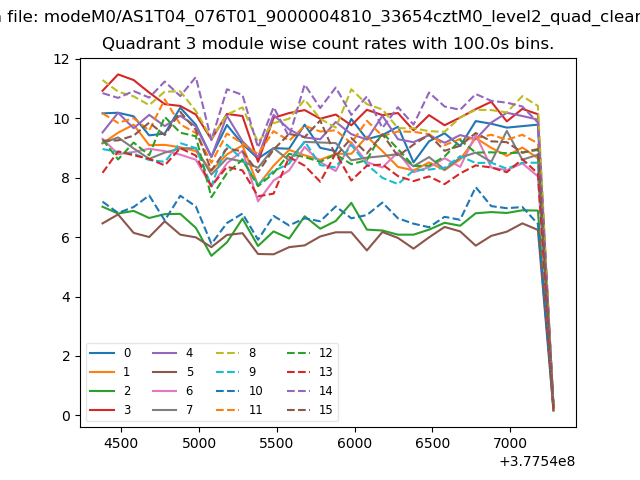

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

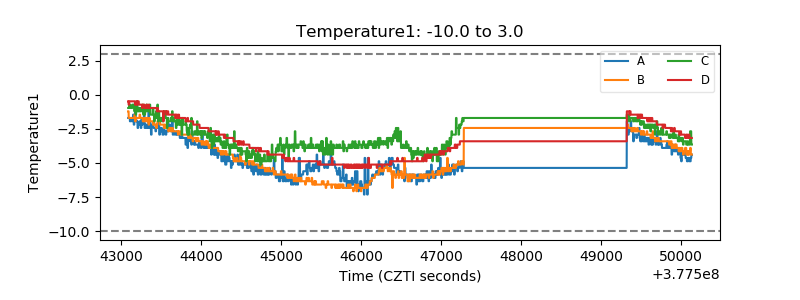

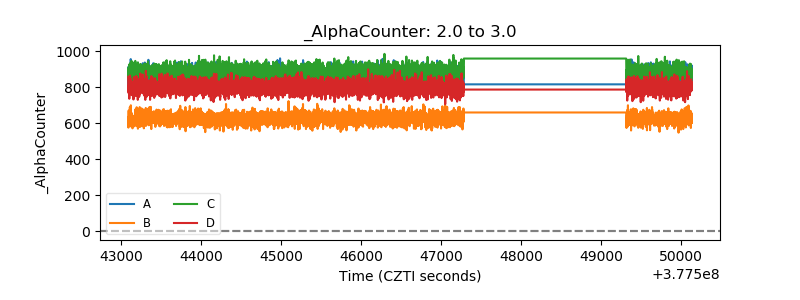

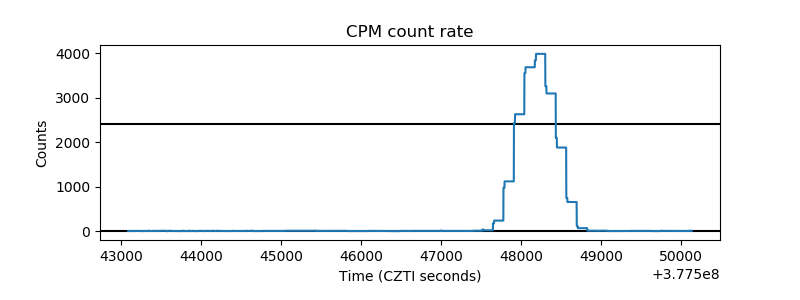

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

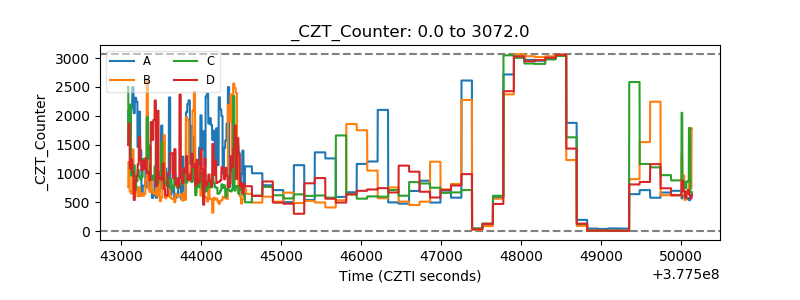

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

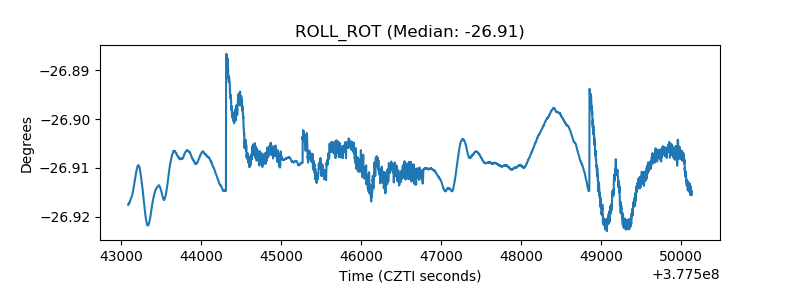

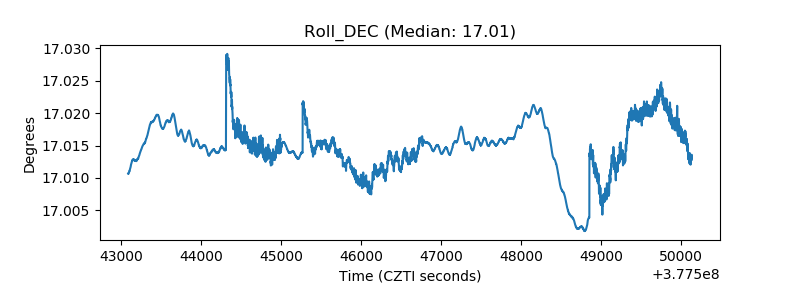

| _ROLL_ROT |  |
| _Roll_DEC |  |

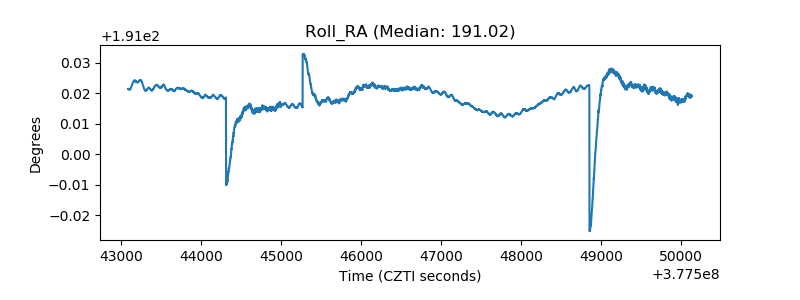

| _Roll_RA |  |
| Veto Counter |  |
