| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33656cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33656cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,593,600 | 92,018,880 |
| Size | 442.1 MB | 87.8 MB |
| Events in quadrant A | 2,971,562 | 611,938 |
| Events in quadrant B | 3,426,334 | 623,268 |
| Events in quadrant C | 3,560,991 | 624,401 |
| Events in quadrant D | 3,753,236 | 587,611 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11908 | 3 |
| B | 0 | 13372 | 2 |
| C | 0 | 14215 | 2 |
| D | 0 | 14940 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4841 | 75 | 1.549267% |
| B | 4841 | 237 | 4.895683% |
| C | 4841 | 131 | 2.706052% |
| D | 4841 | 94 | 1.941748% |

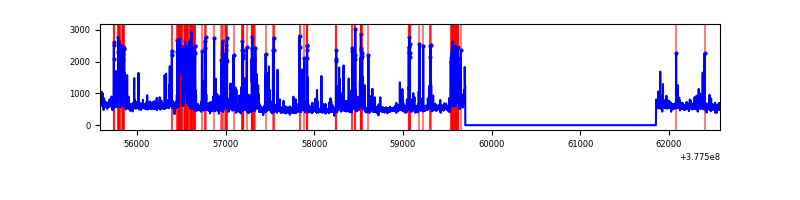

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6992 | 4842 | 59 | 59 | 0.84% | 1.22% |  |
| B | 6992 | 4842 | 186 | 186 | 2.66% | 3.84% |  |
| C | 6992 | 4842 | 95 | 95 | 1.36% | 1.96% |  |
| D | 6992 | 4842 | 96 | 96 | 1.37% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 335115 | 2715.11 | 615 | 607 | 123.2 |
| A | 15 | 237 | 234479 | 1898.27 | 615 | 607 | 123.2 |
| A | 13 | 6 | 11281 | 86.64 | 615 | 607 | 123.2 |
| B | 5 | 172 | 821938 | 6991.55 | 615 | 601 | 117.5 |
| B | 5 | 200 | 58830 | 495.67 | 615 | 601 | 117.5 |
| B | 0 | 189 | 29489 | 245.91 | 615 | 601 | 117.5 |
| C | 3 | 233 | 624109 | 4549.55 | 603 | 609 | 137.0 |
| C | 0 | 10 | 259301 | 1887.62 | 603 | 609 | 137.0 |
| C | 15 | 214 | 222067 | 1615.93 | 603 | 609 | 137.0 |
| D | 8 | 195 | 879907 | 5633.05 | 595 | 584 | 156.1 |
| D | 2 | 250 | 167071 | 1066.54 | 595 | 584 | 156.1 |
| D | 13 | 249 | 93133 | 592.88 | 595 | 584 | 156.1 |

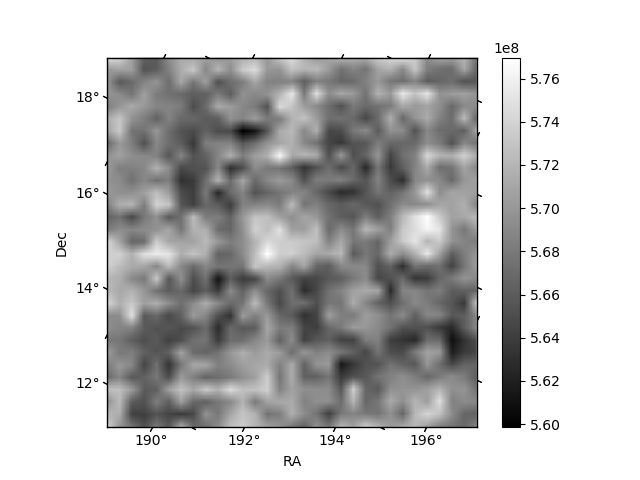

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

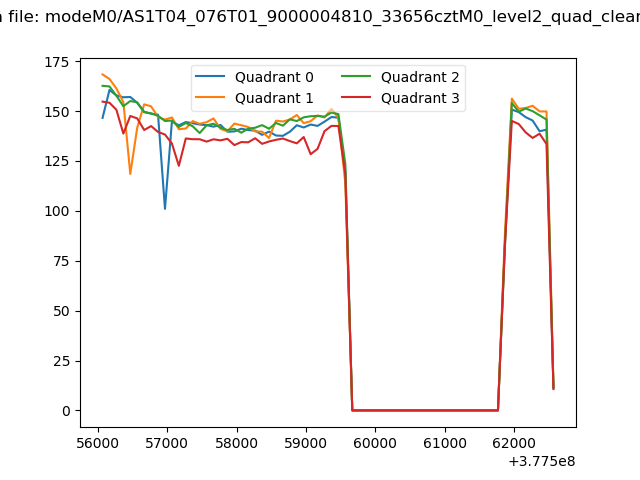

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

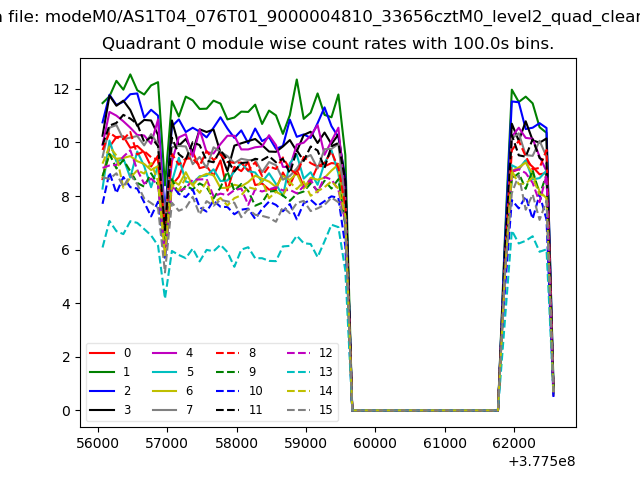

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

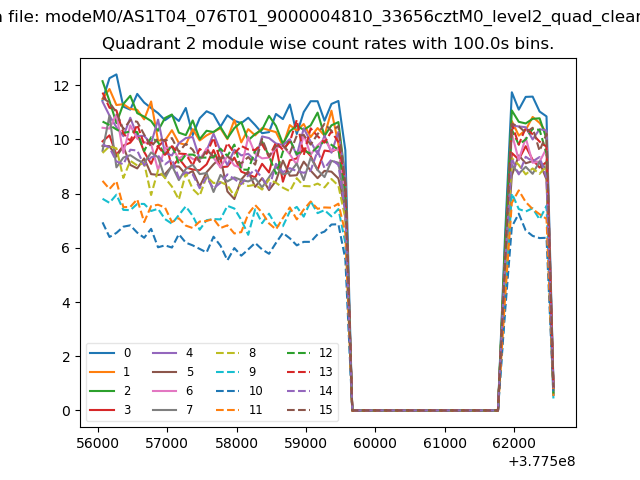

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

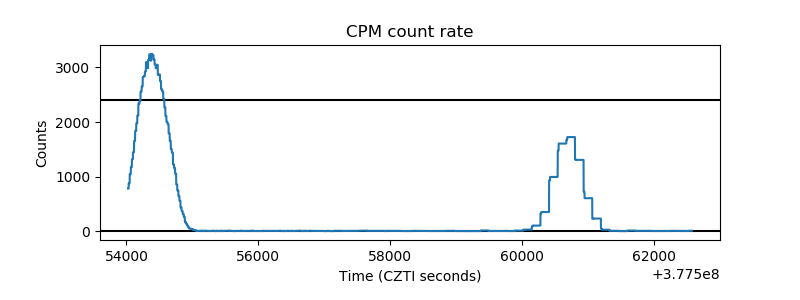

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

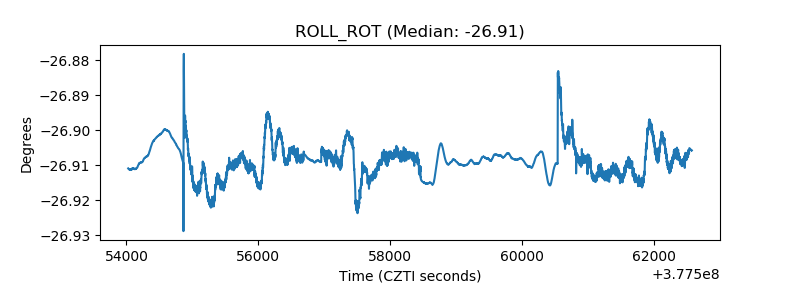

| _ROLL_ROT |  |
| _Roll_DEC |  |

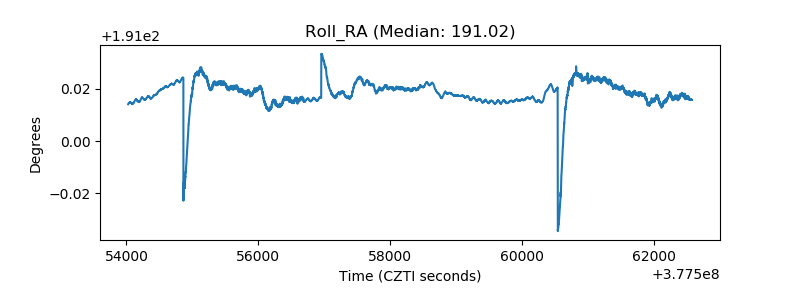

| _Roll_RA |  |
| Veto Counter |  |
