| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_076T01_9000004810_33675cztM0_level2.evt | modeM0/AS1T04_076T01_9000004810_33675cztM0_level2_quad_clean.evt |
| Size (bytes) | 792,040,320 | 59,063,040 |
| Size | 755.3 MB | 56.3 MB |
| Events in quadrant A | 11,808,445 | 5,605 |
| Events in quadrant B | 3,893,478 | 454,298 |
| Events in quadrant C | 3,957,218 | 456,385 |
| Events in quadrant D | 3,911,099 | 441,212 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39336 | 3 |
| B | 0 | 15508 | 2 |
| C | 0 | 15746 | 2 |
| D | 0 | 15879 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6143 | 6138 | 99.918607% |
| B | 6143 | 294 | 4.785935% |
| C | 6143 | 151 | 2.458082% |
| D | 6143 | 39 | 0.634869% |

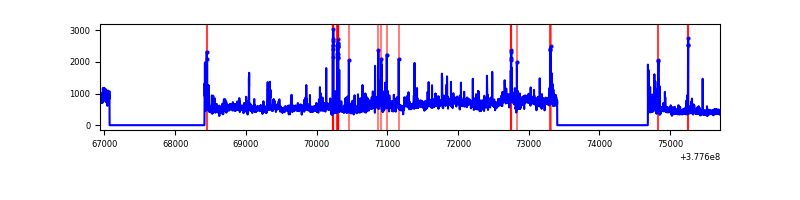

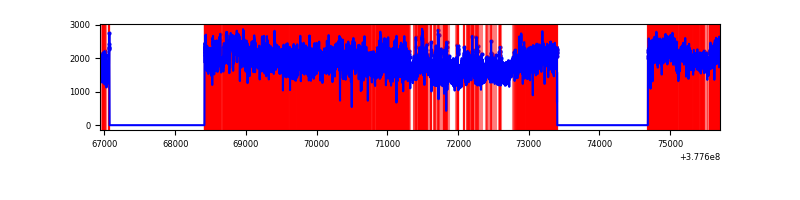

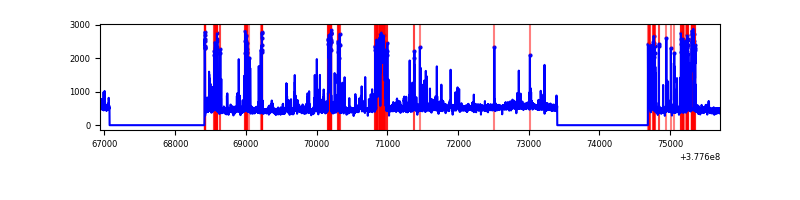

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8766 | 6142 | 2580 | 2580 | 29.43% | 42.01% |  |
| B | 8767 | 6145 | 243 | 243 | 2.77% | 3.95% |  |
| C | 8767 | 6145 | 142 | 142 | 1.62% | 2.31% |  |
| D | 8767 | 6145 | 37 | 37 | 0.42% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 11635821 | 1505955.96 | 29 | 28 | 7.7 |
| A | 15 | 237 | 56754 | 7341.73 | 29 | 28 | 7.7 |
| A | 13 | 6 | 597 | 73.64 | 29 | 28 | 7.7 |
| B | 5 | 172 | 1020031 | 7522.0 | 701 | 684 | 135.5 |
| B | 15 | 85 | 35679 | 258.23 | 701 | 684 | 135.5 |
| B | 12 | 111 | 16586 | 117.34 | 701 | 684 | 135.5 |
| C | 3 | 233 | 636953 | 3946.87 | 694 | 700 | 161.2 |
| C | 15 | 214 | 277191 | 1715.16 | 694 | 700 | 161.2 |
| C | 0 | 10 | 228129 | 1410.81 | 694 | 700 | 161.2 |
| D | 8 | 195 | 689181 | 3902.68 | 697 | 678 | 176.4 |
| D | 1 | 52 | 117396 | 661.6 | 697 | 678 | 176.4 |
| D | 12 | 6 | 84251 | 473.72 | 697 | 678 | 176.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

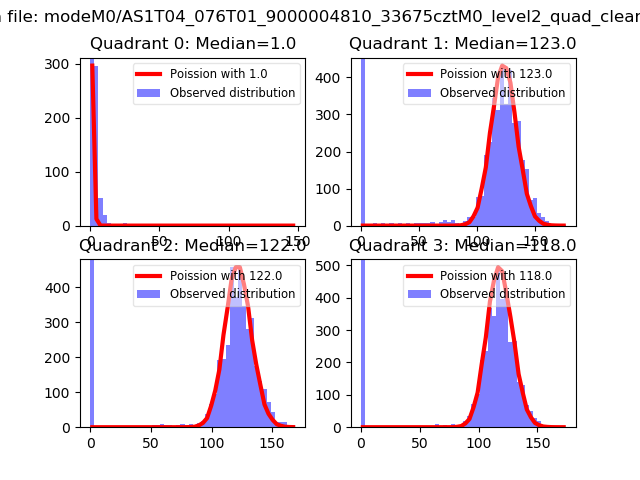

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

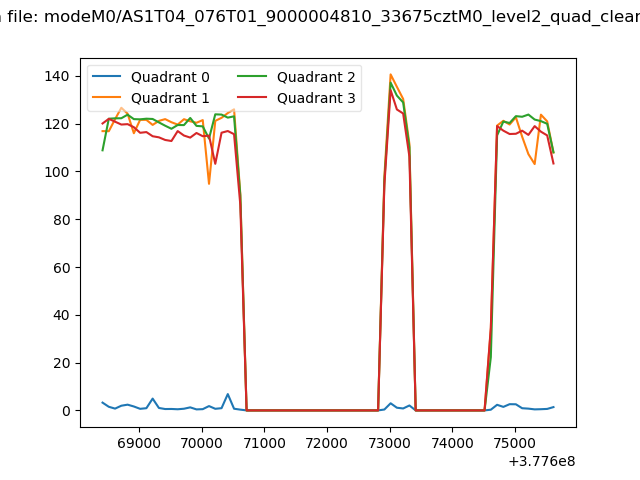

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

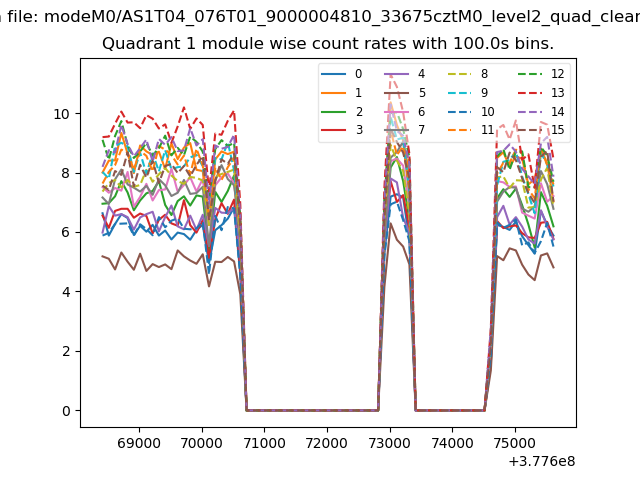

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

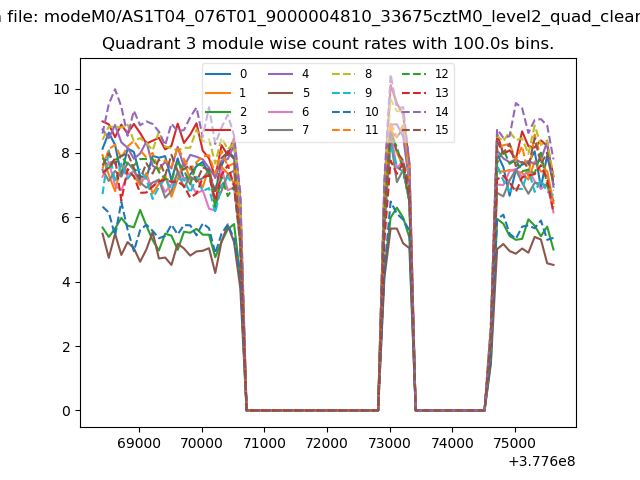

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

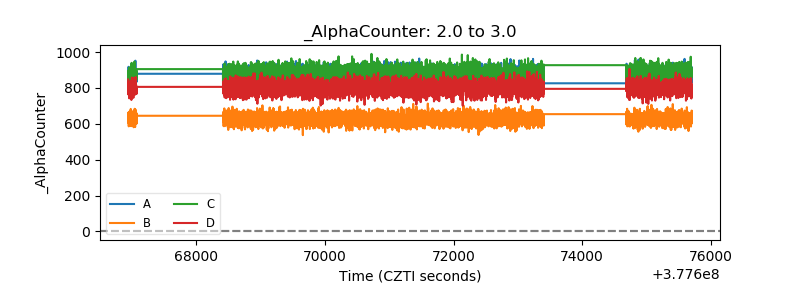

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
