| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004812_33700cztM0_level2.evt | modeM0/AS1T04_090T01_9000004812_33700cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,692,800 | 71,858,880 |
| Size | 577.6 MB | 68.5 MB |
| Events in quadrant A | 6,924,232 | 438,217 |
| Events in quadrant B | 3,603,464 | 464,692 |
| Events in quadrant C | 3,076,928 | 482,666 |
| Events in quadrant D | 4,406,728 | 444,724 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24174 | 3 |
| B | 0 | 13744 | 2 |
| C | 0 | 12084 | 2 |
| D | 0 | 16502 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4917 | 977 | 19.869839% |
| B | 4917 | 339 | 6.894448% |
| C | 4917 | 135 | 2.745577% |
| D | 4917 | 307 | 6.243644% |

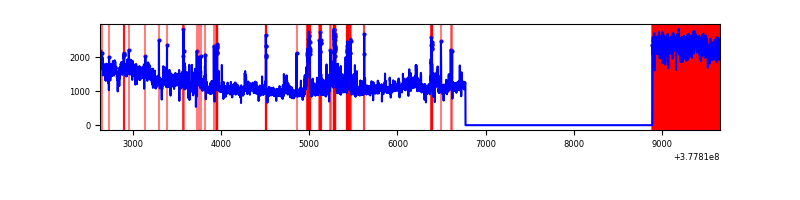

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7038 | 4917 | 850 | 850 | 12.08% | 17.29% |  |
| B | 7039 | 4918 | 273 | 273 | 3.88% | 5.55% |  |
| C | 7039 | 4918 | 113 | 113 | 1.61% | 2.30% |  |
| D | 7039 | 4918 | 309 | 309 | 4.39% | 6.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4398378 | 39668.09 | 551 | 541 | 110.9 |
| A | 15 | 237 | 319511 | 2877.08 | 551 | 541 | 110.9 |
| A | 14 | 4 | 62601 | 559.78 | 551 | 541 | 110.9 |
| B | 5 | 172 | 1112699 | 9924.65 | 592 | 578 | 112.1 |
| B | 4 | 251 | 48207 | 425.04 | 592 | 578 | 112.1 |
| B | 5 | 255 | 28453 | 248.76 | 592 | 578 | 112.1 |
| C | 0 | 10 | 283676 | 2088.43 | 591 | 598 | 135.5 |
| C | 15 | 214 | 225914 | 1662.29 | 591 | 598 | 135.5 |
| C | 3 | 233 | 213629 | 1571.65 | 591 | 598 | 135.5 |
| D | 8 | 195 | 488258 | 3240.61 | 578 | 565 | 150.5 |
| D | 2 | 249 | 450626 | 2990.55 | 578 | 565 | 150.5 |
| D | 7 | 80 | 273633 | 1814.47 | 578 | 565 | 150.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

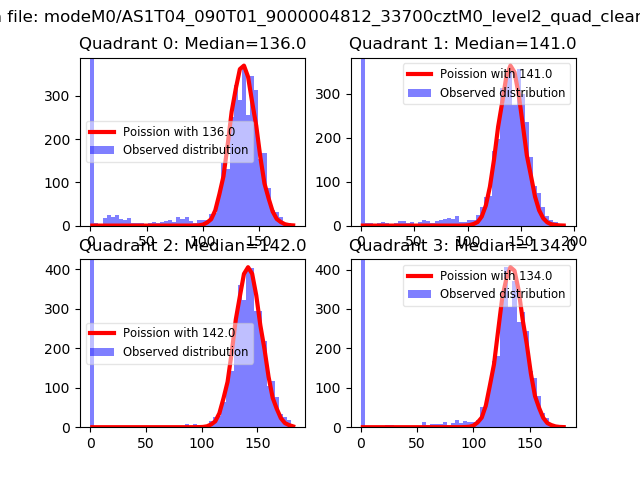

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

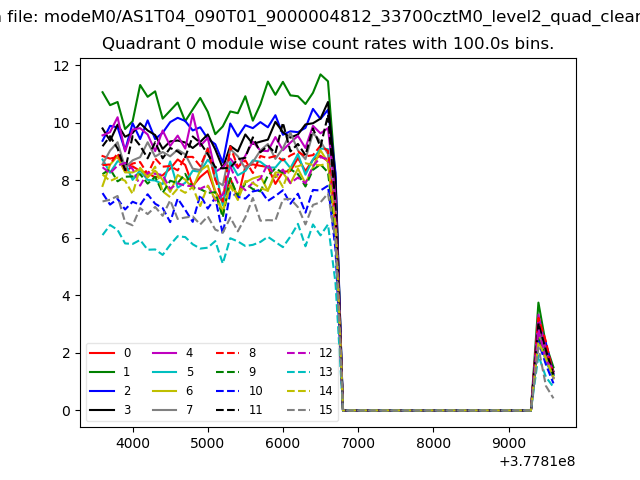

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

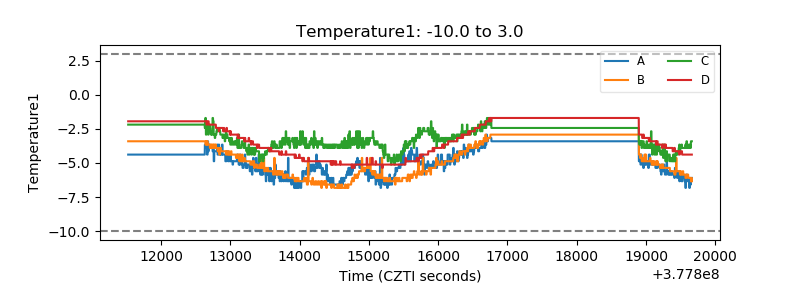

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

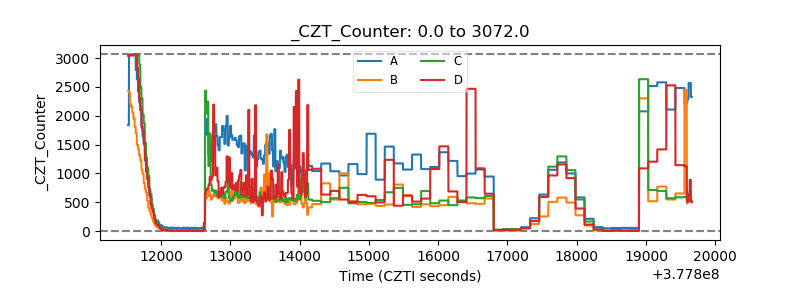

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

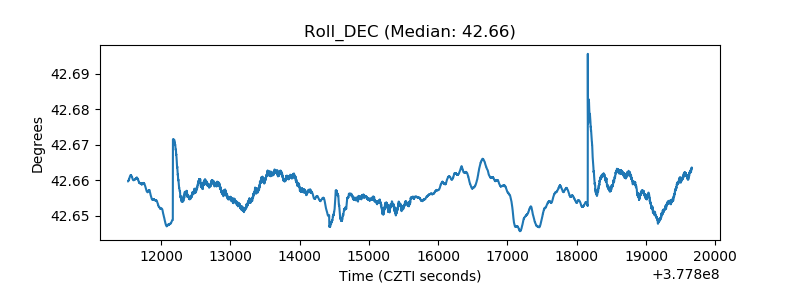

| _Roll_DEC |  |
| _Roll_RA |  |

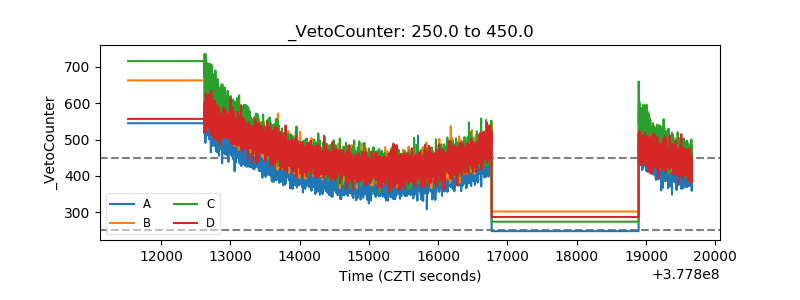

| Veto Counter |  |
