| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004812_33706cztM0_level2.evt | modeM0/AS1T04_090T01_9000004812_33706cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,333,120 | 101,183,040 |
| Size | 684.1 MB | 96.5 MB |
| Events in quadrant A | 4,825,194 | 640,925 |
| Events in quadrant B | 5,787,813 | 608,034 |
| Events in quadrant C | 4,296,501 | 662,446 |
| Events in quadrant D | 6,284,114 | 606,587 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 8 |
| B | 0 | 30 | 7 |
| C | 0 | 30 | 7 |
| D | 0 | 31 | 8 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28082 | 8601 |
| B | 0 | 34818 | 12540 |
| C | 0 | 24270 | 6653 |
| D | 0 | 33720 | 9629 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 44 |
| B | 0 | 220 | 56 |
| C | 0 | 221 | 55 |
| D | 0 | 220 | 58 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7816 | 305 | 3.902252% |
| B | 7740 | 707 | 9.134367% |
| C | 7962 | 34 | 0.427028% |
| D | 7747 | 93 | 1.200465% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13590 | 8228 | 220 | 220 | 1.62% | 2.67% |  |
| B | 13591 | 8052 | 624 | 624 | 4.59% | 7.75% |  |
| C | 13589 | 8403 | 30 | 30 | 0.22% | 0.36% |  |
| D | 13592 | 8194 | 59 | 59 | 0.43% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1177727 | 6638.2 | 890 | 871 | 177.3 |
| A | 15 | 169 | 181915 | 1021.2 | 890 | 871 | 177.3 |
| A | 13 | 254 | 13922 | 73.62 | 890 | 871 | 177.3 |
| B | 5 | 172 | 1537670 | 9472.82 | 852 | 830 | 162.2 |
| B | 5 | 200 | 446847 | 2749.17 | 852 | 830 | 162.2 |
| B | 5 | 255 | 306118 | 1881.74 | 852 | 830 | 162.2 |
| C | 15 | 214 | 367051 | 1794.92 | 886 | 892 | 204.0 |
| C | 3 | 233 | 192467 | 939.11 | 886 | 892 | 204.0 |
| C | 0 | 10 | 148407 | 723.12 | 886 | 892 | 204.0 |
| D | 8 | 195 | 1820800 | 8256.05 | 857 | 835 | 220.4 |
| D | 12 | 217 | 410914 | 1860.27 | 857 | 835 | 220.4 |
| D | 2 | 250 | 176911 | 798.75 | 857 | 835 | 220.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

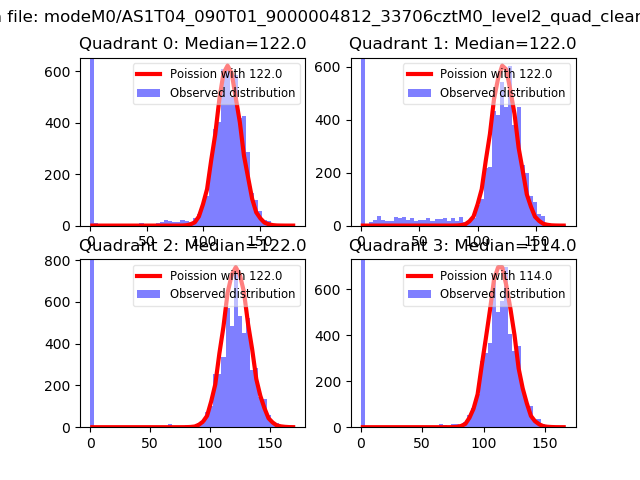

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

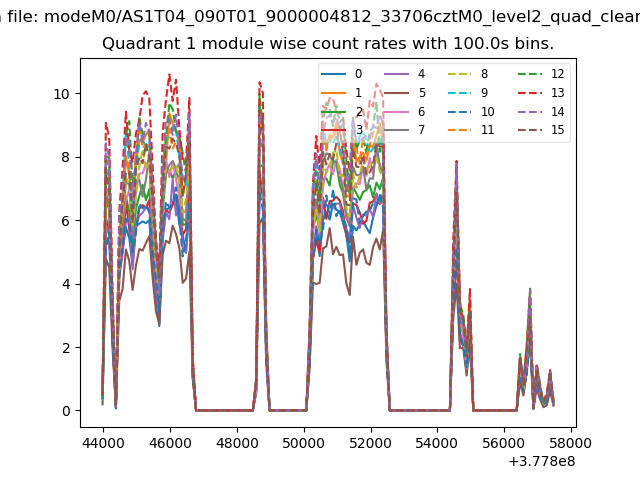

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
