| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004816_33716cztM0_level2.evt | modeM0/AS1A11_086T01_9000004816_33716cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,831,040 | 74,877,120 |
| Size | 474.8 MB | 71.4 MB |
| Events in quadrant A | 3,572,100 | 468,756 |
| Events in quadrant B | 3,480,894 | 483,632 |
| Events in quadrant C | 2,919,732 | 489,533 |
| Events in quadrant D | 4,751,281 | 460,441 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14028 | 3 |
| B | 0 | 13687 | 2 |
| C | 0 | 11897 | 2 |
| D | 0 | 17782 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5208 | 341 | 6.547619% |
| B | 5208 | 229 | 4.397081% |
| C | 5208 | 85 | 1.632104% |
| D | 5208 | 136 | 2.611367% |

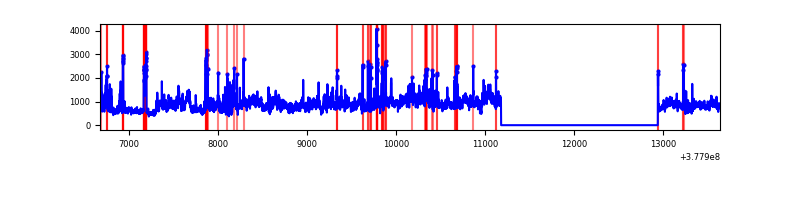

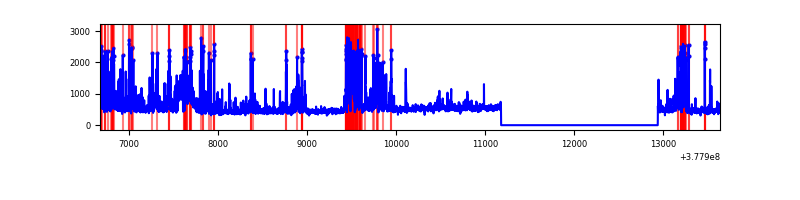

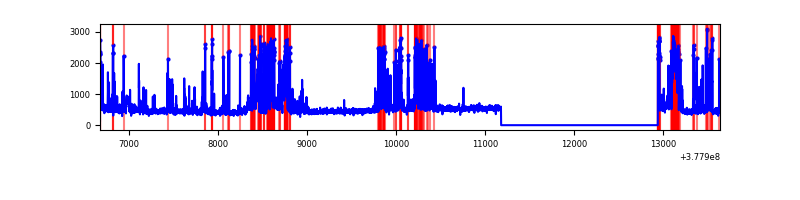

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

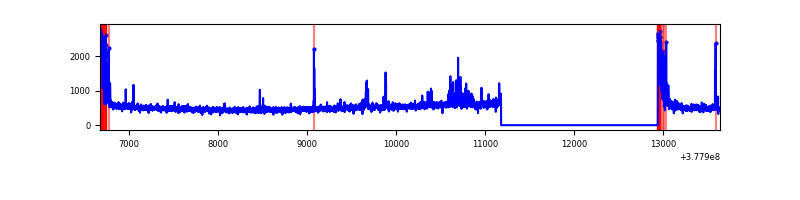

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6969 | 5208 | 279 | 279 | 4.00% | 5.36% |  |
| B | 6969 | 5208 | 188 | 188 | 2.70% | 3.61% |  |
| C | 6969 | 5208 | 79 | 79 | 1.13% | 1.52% |  |
| D | 6969 | 5208 | 105 | 105 | 1.51% | 2.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1189045 | 10215.44 | 584 | 573 | 116.3 |
| A | 15 | 169 | 112824 | 964.85 | 584 | 573 | 116.3 |
| A | 13 | 254 | 9171 | 73.9 | 584 | 573 | 116.3 |
| B | 5 | 172 | 733892 | 6344.7 | 597 | 581 | 115.6 |
| B | 15 | 222 | 194537 | 1678.13 | 597 | 581 | 115.6 |
| B | 5 | 255 | 77108 | 662.12 | 597 | 581 | 115.6 |
| C | 0 | 10 | 285447 | 2101.2 | 587 | 592 | 135.6 |
| C | 15 | 214 | 239956 | 1765.64 | 587 | 592 | 135.6 |
| C | 14 | 254 | 40952 | 297.71 | 587 | 592 | 135.6 |
| D | 1 | 52 | 1445104 | 10013.36 | 582 | 564 | 144.3 |
| D | 8 | 195 | 532174 | 3685.05 | 582 | 564 | 144.3 |
| D | 13 | 249 | 180857 | 1249.77 | 582 | 564 | 144.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

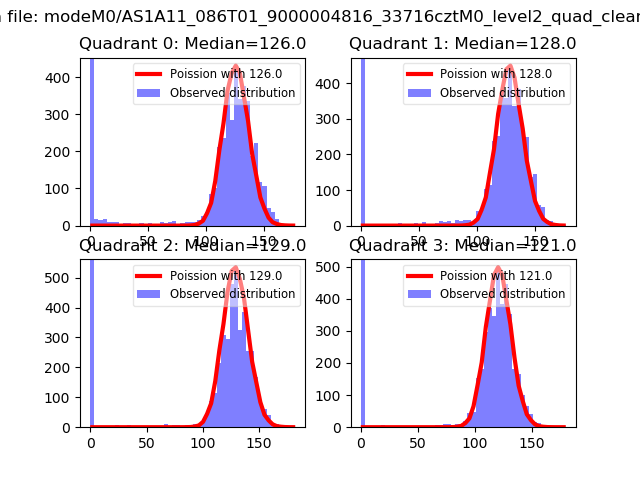

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

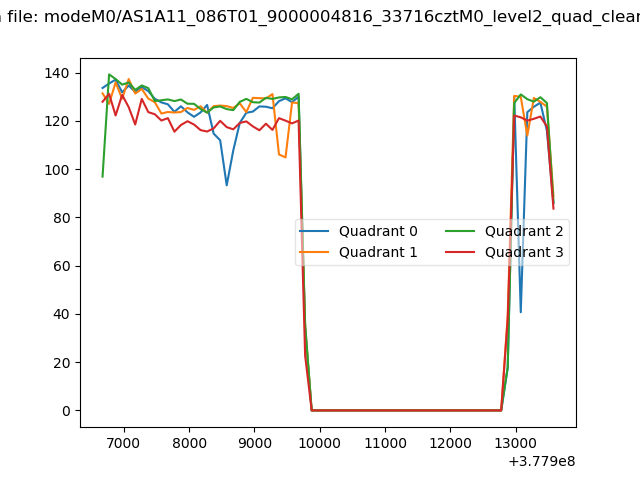

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

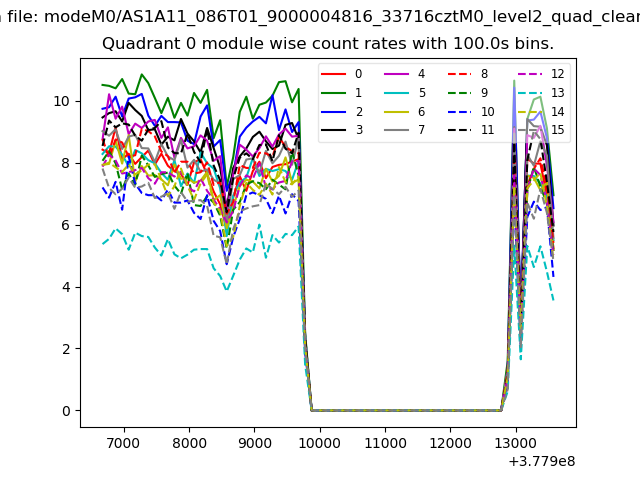

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

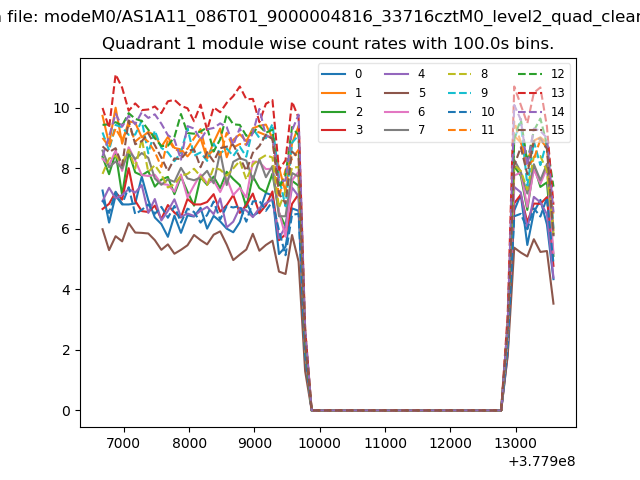

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

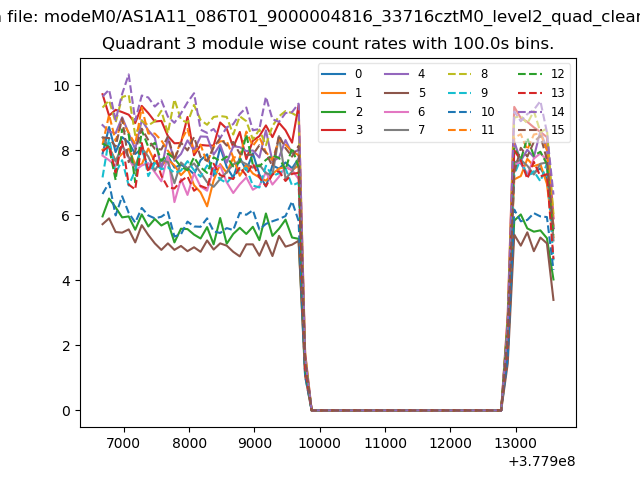

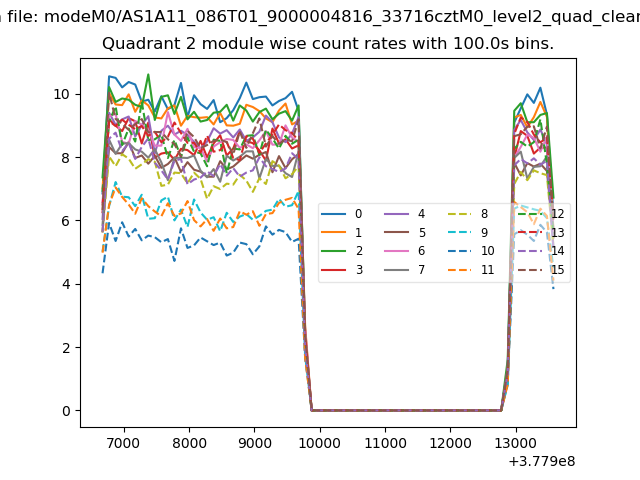

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

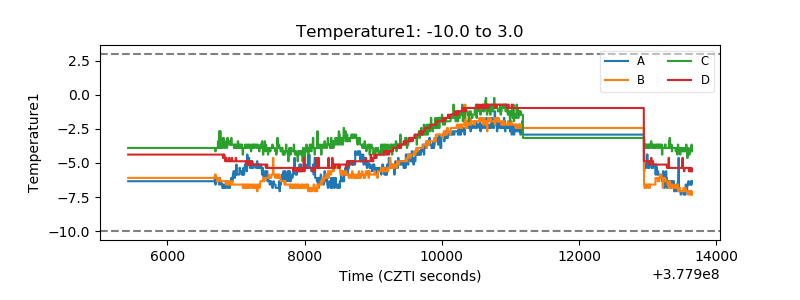

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

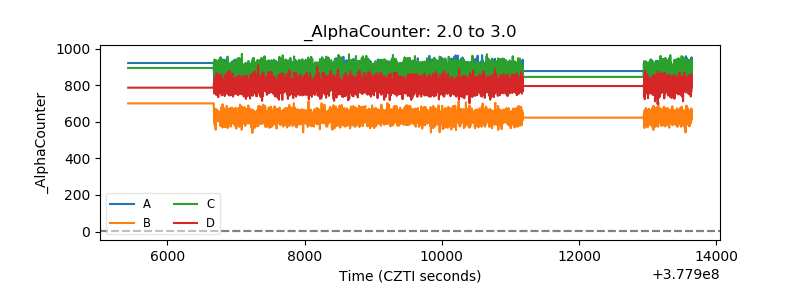

| Alpha Counter |  |

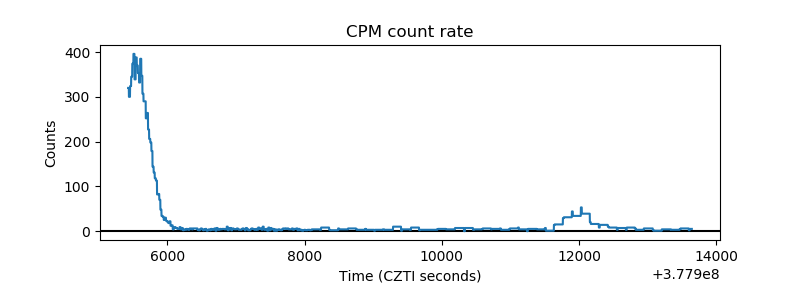

| _CPM_Rate |  |

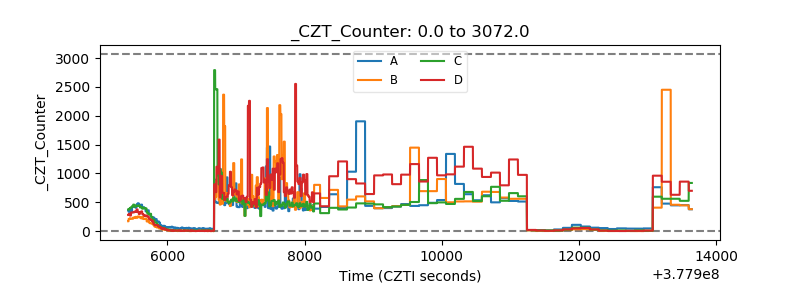

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

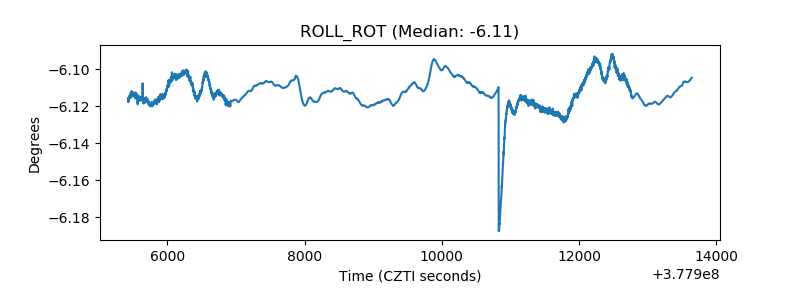

| _ROLL_ROT |  |

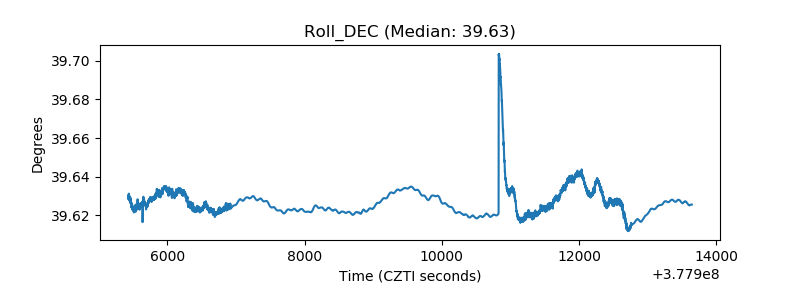

| _Roll_DEC |  |

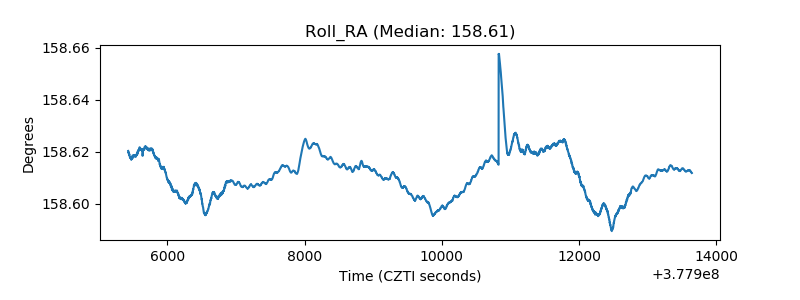

| _Roll_RA |  |

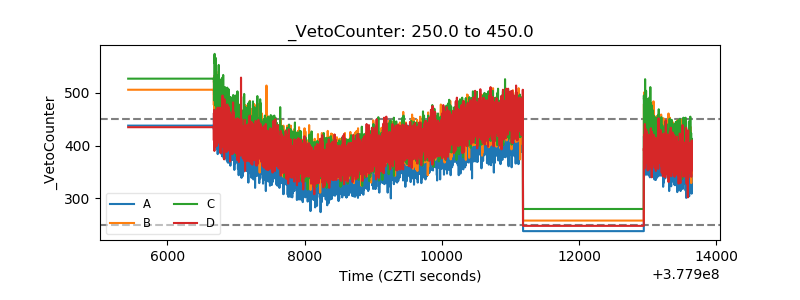

| Veto Counter |  |
