| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004816_33740cztM0_level2.evt | modeM0/AS1A11_086T01_9000004816_33740cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,487,680 | 59,143,680 |
| Size | 458.2 MB | 56.4 MB |
| Events in quadrant A | 2,892,438 | 364,233 |
| Events in quadrant B | 3,661,018 | 351,463 |
| Events in quadrant C | 3,107,200 | 364,238 |
| Events in quadrant D | 4,535,473 | 343,140 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11949 | 3 |
| B | 0 | 14392 | 2 |
| C | 0 | 12433 | 2 |
| D | 0 | 17134 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5249 | 57 | 1.085921% |
| B | 5249 | 245 | 4.667556% |
| C | 5249 | 73 | 1.390741% |
| D | 5249 | 229 | 4.362736% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7191 | 5250 | 46 | 46 | 0.64% | 0.88% |  |
| B | 7191 | 5250 | 190 | 190 | 2.64% | 3.62% |  |
| C | 7191 | 5250 | 49 | 49 | 0.68% | 0.93% |  |
| D | 7190 | 5249 | 184 | 184 | 2.56% | 3.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 198981 | 1456.72 | 691 | 680 | 136.1 |
| A | 13 | 6 | 11698 | 80.94 | 691 | 680 | 136.1 |
| A | 10 | 83 | 10056 | 68.88 | 691 | 680 | 136.1 |
| B | 5 | 172 | 735326 | 5824.18 | 676 | 661 | 126.1 |
| B | 5 | 255 | 138846 | 1095.49 | 676 | 661 | 126.1 |
| B | 0 | 245 | 25122 | 193.92 | 676 | 661 | 126.1 |
| C | 15 | 214 | 229262 | 1491.65 | 673 | 682 | 153.2 |
| C | 0 | 10 | 178308 | 1159.13 | 673 | 682 | 153.2 |
| C | 14 | 254 | 23847 | 151.17 | 673 | 682 | 153.2 |
| D | 8 | 195 | 942049 | 5411.72 | 663 | 651 | 174.0 |
| D | 2 | 250 | 284151 | 1629.73 | 663 | 651 | 174.0 |
| D | 1 | 47 | 243097 | 1393.72 | 663 | 651 | 174.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

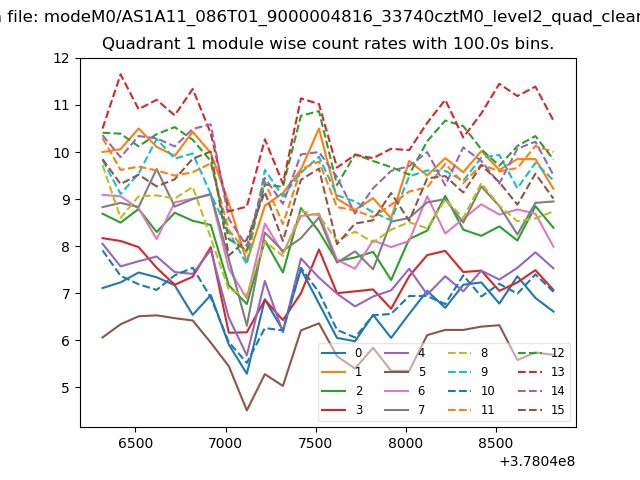

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

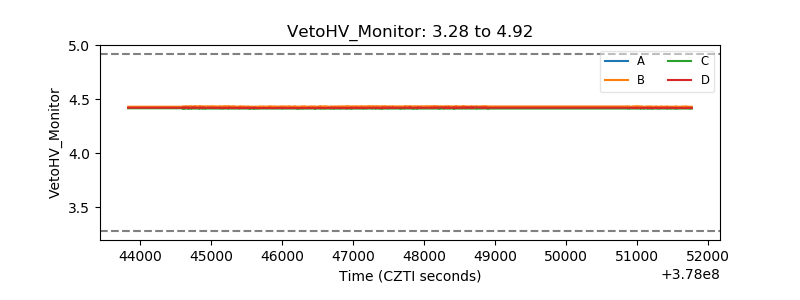

| Veto HV Monitor |  |
| Veto LLD |  |

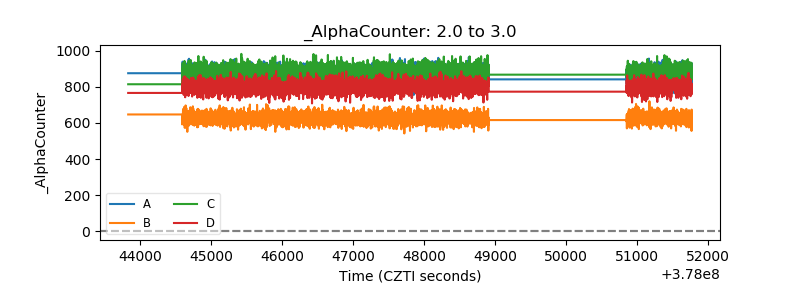

| Alpha Counter |  |

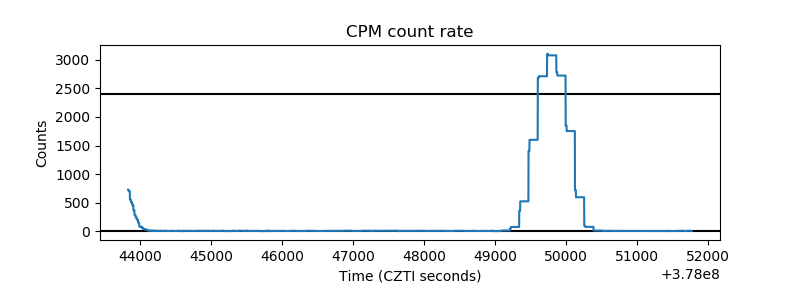

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

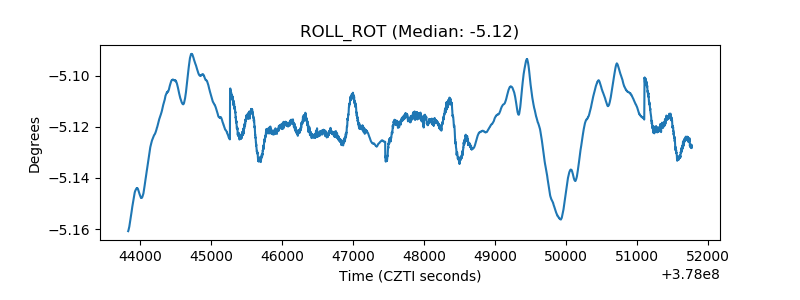

| _ROLL_ROT |  |
| _Roll_DEC |  |

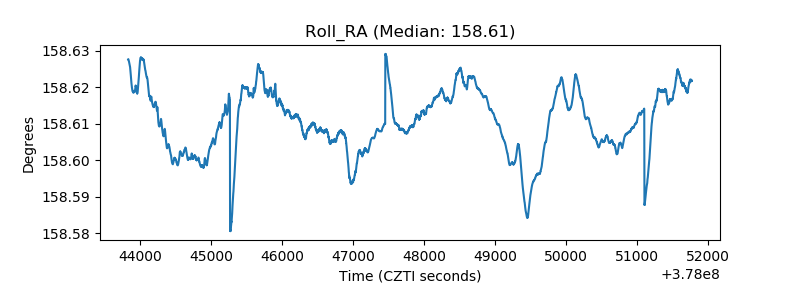

| _Roll_RA |  |
| Veto Counter |  |
