| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_088T01_9000004814_33710cztM0_level2.evt | modeM0/AS1T04_088T01_9000004814_33710cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,794,560 | 60,096,960 |
| Size | 520.5 MB | 57.3 MB |
| Events in quadrant A | 3,205,796 | 358,160 |
| Events in quadrant B | 4,709,130 | 356,859 |
| Events in quadrant C | 3,328,478 | 364,127 |
| Events in quadrant D | 4,908,701 | 350,277 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13038 | 2 |
| B | 0 | 17618 | 1 |
| C | 0 | 13243 | 1 |
| D | 0 | 18428 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5577 | 194 | 3.478573% |
| B | 5577 | 734 | 13.161198% |
| C | 5577 | 73 | 1.308947% |
| D | 5577 | 181 | 3.245472% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7400 | 5578 | 136 | 136 | 1.84% | 2.44% |  |
| B | 7400 | 5578 | 612 | 612 | 8.27% | 10.97% |  |
| C | 7399 | 5577 | 64 | 64 | 0.86% | 1.15% |  |
| D | 7400 | 5578 | 144 | 144 | 1.95% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 567045 | 4215.91 | 675 | 663 | 134.3 |
| A | 13 | 6 | 16285 | 116.28 | 675 | 663 | 134.3 |
| A | 13 | 254 | 10617 | 74.09 | 675 | 663 | 134.3 |
| B | 5 | 172 | 1802444 | 14894.89 | 644 | 629 | 121.0 |
| B | 8 | 128 | 101751 | 835.94 | 644 | 629 | 121.0 |
| B | 5 | 255 | 62882 | 514.62 | 644 | 629 | 121.0 |
| C | 15 | 214 | 258905 | 1689.23 | 666 | 671 | 152.9 |
| C | 0 | 10 | 167056 | 1088.4 | 666 | 671 | 152.9 |
| C | 14 | 67 | 115993 | 754.37 | 666 | 671 | 152.9 |
| D | 8 | 195 | 831650 | 4659.69 | 662 | 647 | 178.3 |
| D | 1 | 52 | 762346 | 4271.08 | 662 | 647 | 178.3 |
| D | 2 | 250 | 218804 | 1223.27 | 662 | 647 | 178.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

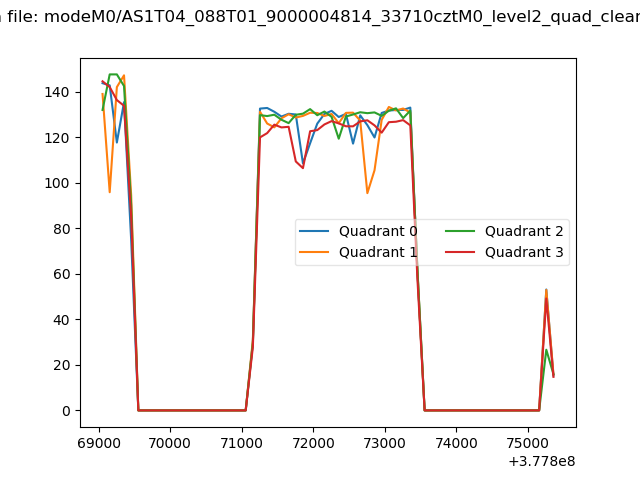

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

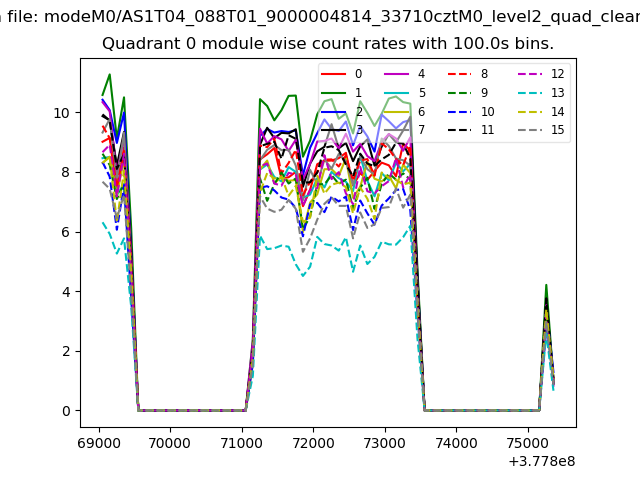

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

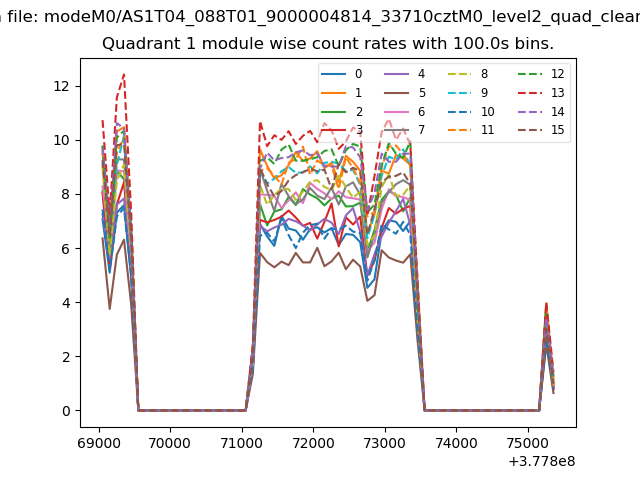

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

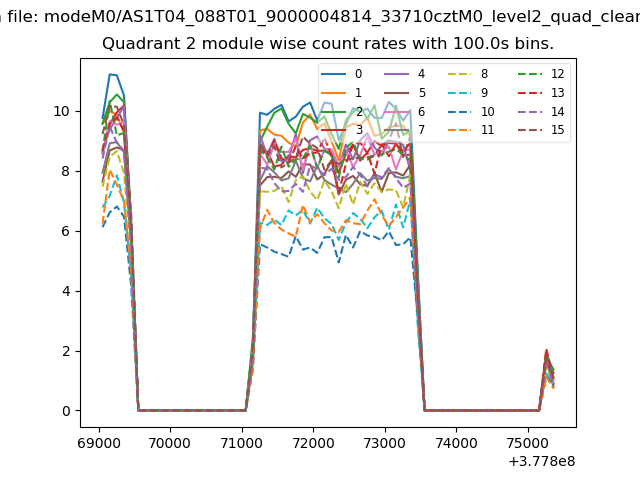

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

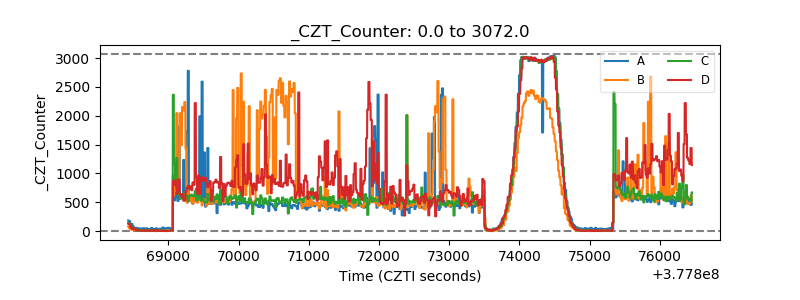

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

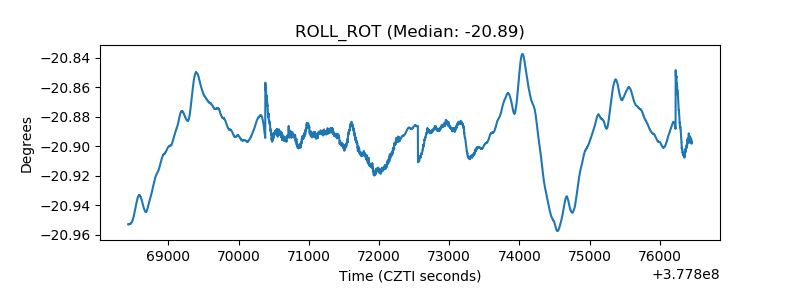

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
