| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_088T01_9000004814_33714cztM0_level2.evt | modeM0/AS1T04_088T01_9000004814_33714cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,706,240 | 94,282,560 |
| Size | 454.6 MB | 89.9 MB |
| Events in quadrant A | 2,947,029 | 628,853 |
| Events in quadrant B | 3,620,016 | 626,504 |
| Events in quadrant C | 3,067,025 | 651,015 |
| Events in quadrant D | 4,467,455 | 601,550 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11799 | 3 |
| B | 0 | 13974 | 2 |
| C | 0 | 12116 | 2 |
| D | 0 | 16661 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4947 | 144 | 2.910855% |
| B | 4947 | 343 | 6.933495% |
| C | 4947 | 112 | 2.263998% |
| D | 4947 | 219 | 4.426925% |

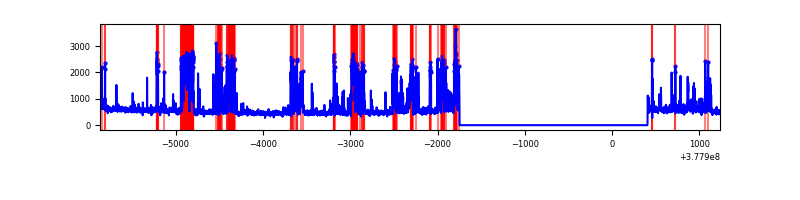

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7100 | 4948 | 119 | 119 | 1.68% | 2.41% |  |
| B | 7100 | 4948 | 281 | 281 | 3.96% | 5.68% |  |
| C | 7100 | 4948 | 92 | 92 | 1.30% | 1.86% |  |
| D | 7100 | 4948 | 215 | 215 | 3.03% | 4.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 473751 | 3932.49 | 604 | 594 | 120.3 |
| A | 15 | 169 | 109433 | 904.58 | 604 | 594 | 120.3 |
| A | 13 | 6 | 14993 | 119.67 | 604 | 594 | 120.3 |
| B | 5 | 172 | 1080041 | 9741.09 | 599 | 584 | 110.8 |
| B | 4 | 170 | 60431 | 540.06 | 599 | 584 | 110.8 |
| B | 5 | 255 | 30613 | 270.98 | 599 | 584 | 110.8 |
| C | 15 | 214 | 228208 | 1649.22 | 605 | 611 | 138.0 |
| C | 0 | 10 | 212368 | 1534.44 | 605 | 611 | 138.0 |
| C | 9 | 187 | 92896 | 668.72 | 605 | 611 | 138.0 |
| D | 1 | 52 | 791477 | 4981.75 | 586 | 576 | 158.8 |
| D | 8 | 195 | 528056 | 3322.51 | 586 | 576 | 158.8 |
| D | 2 | 120 | 284355 | 1787.47 | 586 | 576 | 158.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

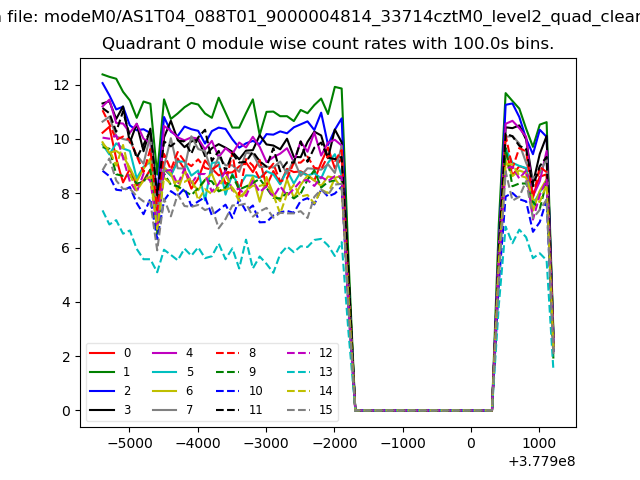

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

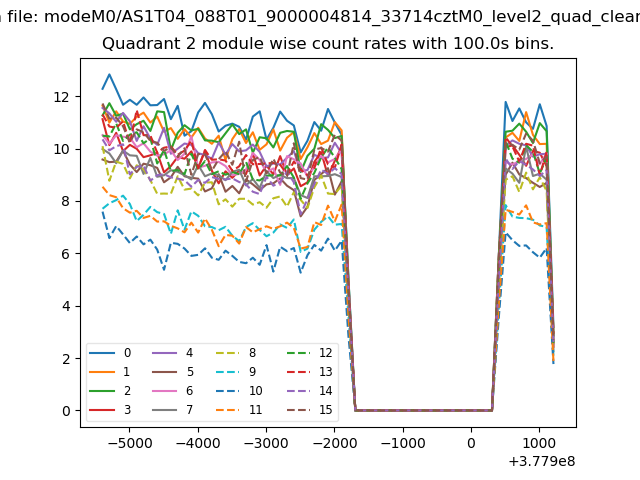

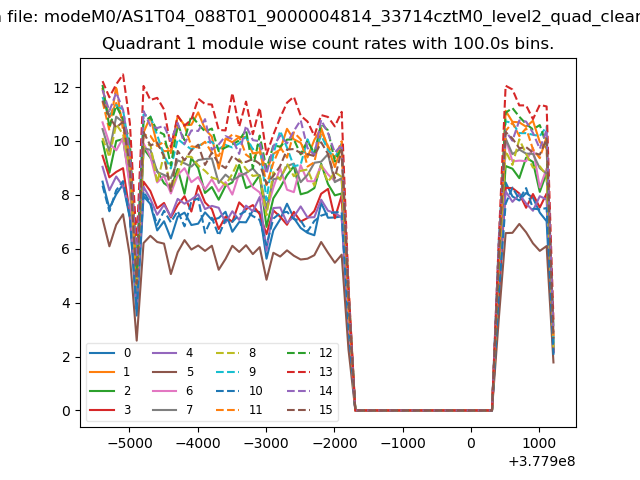

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

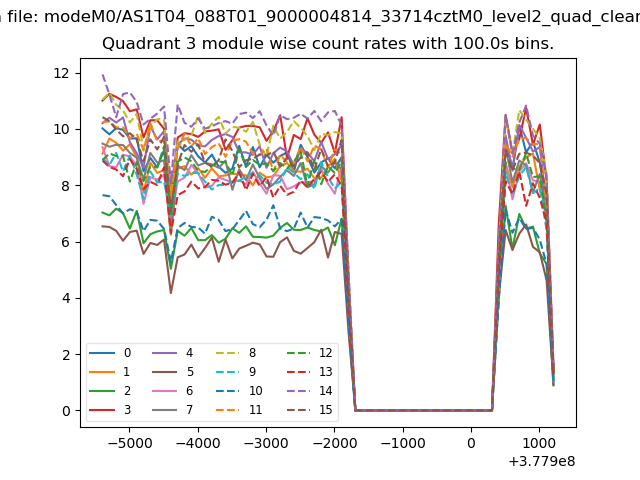

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

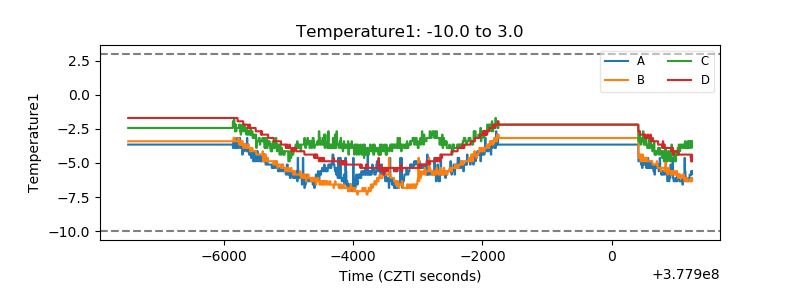

| Temperature 1 |  |

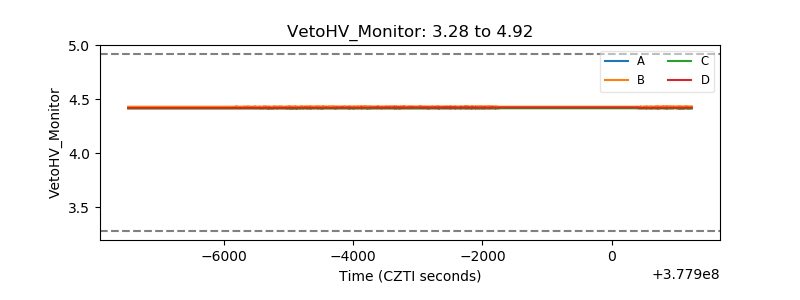

| Veto HV Monitor |  |
| Veto LLD |  |

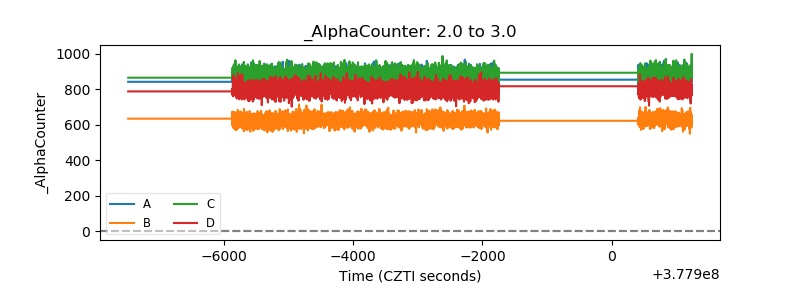

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
