| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33753cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33753cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,208,000 | 54,138,240 |
| Size | 497.1 MB | 51.6 MB |
| Events in quadrant A | 3,268,791 | 317,118 |
| Events in quadrant B | 3,969,085 | 320,045 |
| Events in quadrant C | 3,228,113 | 317,250 |
| Events in quadrant D | 4,940,036 | 293,113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13160 | 2 |
| B | 0 | 15279 | 1 |
| C | 0 | 12748 | 1 |
| D | 0 | 18386 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5592 | 124 | 2.217454% |
| B | 5592 | 342 | 6.115880% |
| C | 5592 | 63 | 1.126609% |
| D | 5592 | 231 | 4.130901% |

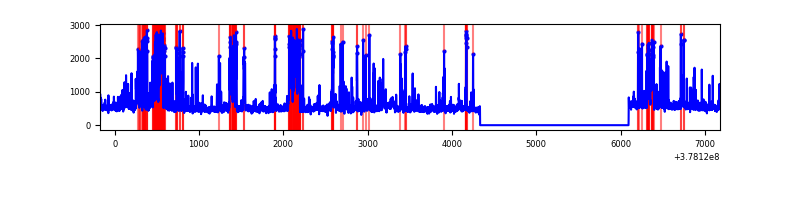

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7354 | 5593 | 96 | 96 | 1.31% | 1.72% |  |
| B | 7354 | 5593 | 272 | 272 | 3.70% | 4.86% |  |
| C | 7354 | 5593 | 46 | 46 | 0.63% | 0.82% |  |
| D | 7354 | 5593 | 229 | 229 | 3.11% | 4.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 4 | 328178 | 2383.55 | 686 | 672 | 137.4 |
| A | 15 | 169 | 256649 | 1862.97 | 686 | 672 | 137.4 |
| A | 9 | 191 | 12910 | 89.07 | 686 | 672 | 137.4 |
| B | 5 | 172 | 644623 | 5037.59 | 671 | 655 | 127.8 |
| B | 5 | 200 | 146753 | 1142.89 | 671 | 655 | 127.8 |
| B | 5 | 255 | 124612 | 969.68 | 671 | 655 | 127.8 |
| C | 15 | 214 | 245756 | 1574.73 | 668 | 672 | 155.6 |
| C | 0 | 10 | 118339 | 756.04 | 668 | 672 | 155.6 |
| C | 14 | 254 | 103103 | 658.15 | 668 | 672 | 155.6 |
| D | 8 | 195 | 1463912 | 8442.0 | 656 | 641 | 173.3 |
| D | 1 | 47 | 413625 | 2382.61 | 656 | 641 | 173.3 |
| D | 2 | 250 | 158334 | 909.77 | 656 | 641 | 173.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

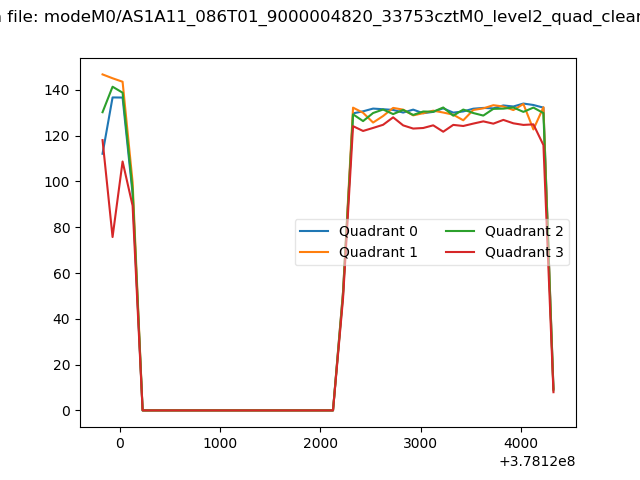

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

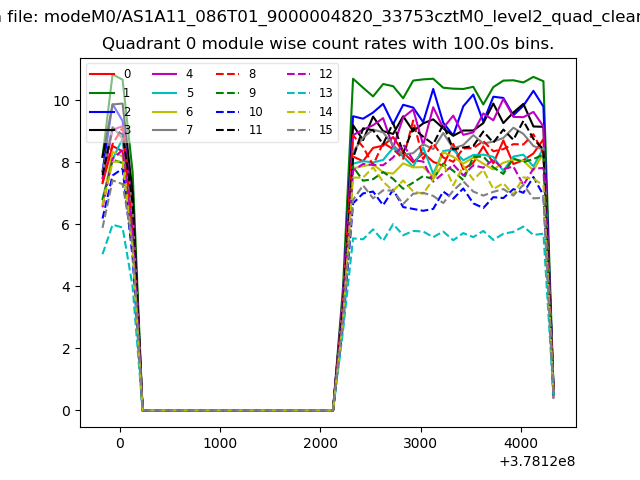

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

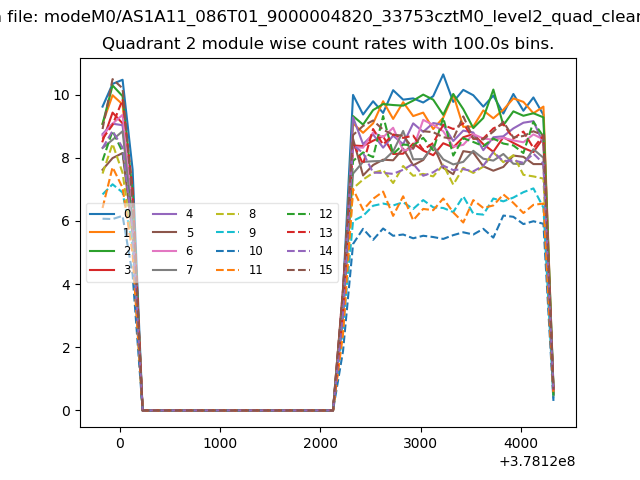

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

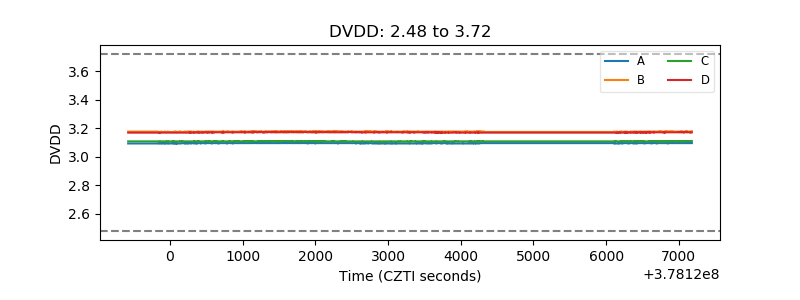

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

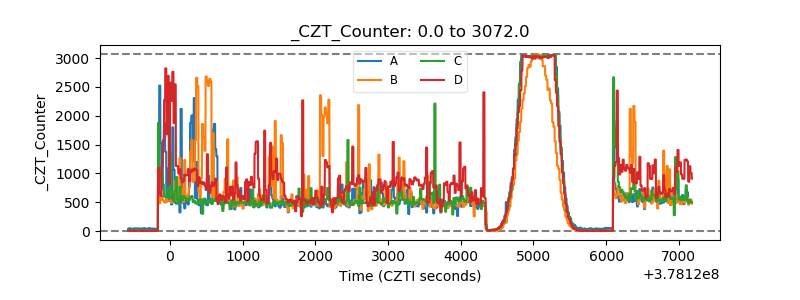

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

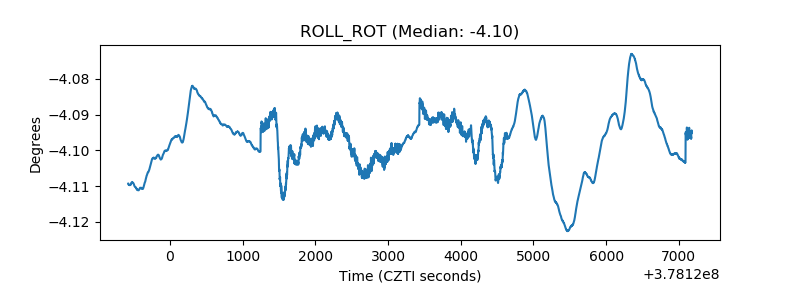

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

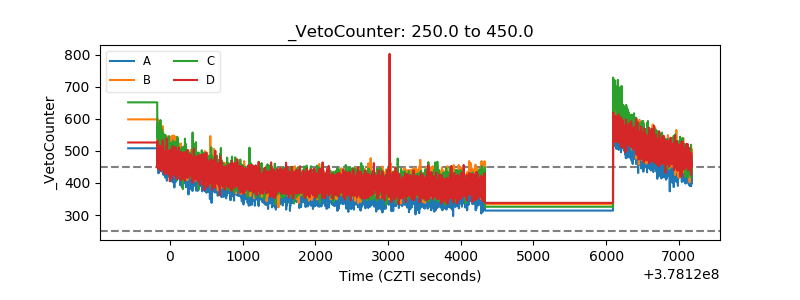

| Veto Counter |  |
