| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33755cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33755cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,478,400 | 61,488,000 |
| Size | 476.3 MB | 58.6 MB |
| Events in quadrant A | 3,027,092 | 381,181 |
| Events in quadrant B | 3,467,506 | 379,914 |
| Events in quadrant C | 3,447,957 | 379,018 |
| Events in quadrant D | 4,835,706 | 360,612 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12358 | 3 |
| B | 0 | 13742 | 2 |
| C | 0 | 13825 | 2 |
| D | 0 | 17974 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5154 | 82 | 1.590997% |
| B | 5154 | 184 | 3.570043% |
| C | 5154 | 67 | 1.299961% |
| D | 5154 | 155 | 3.007373% |

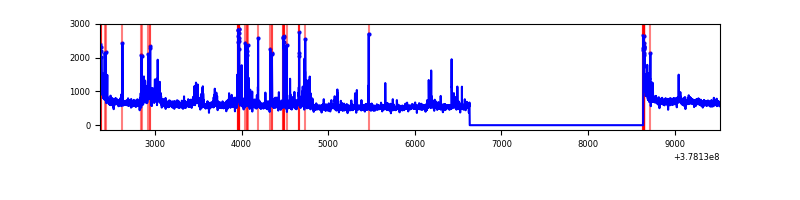

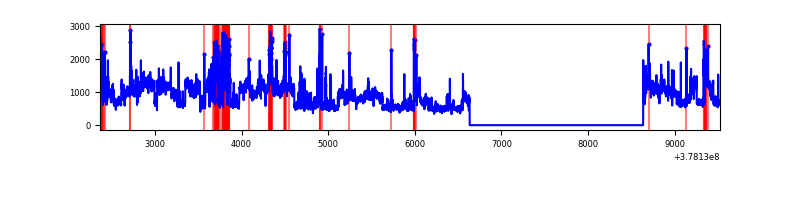

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7157 | 5155 | 36 | 36 | 0.50% | 0.70% |  |
| B | 7157 | 5155 | 143 | 143 | 2.00% | 2.77% |  |
| C | 7157 | 5155 | 58 | 58 | 0.81% | 1.13% |  |
| D | 7157 | 5155 | 133 | 133 | 1.86% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 339973 | 2494.71 | 688 | 675 | 136.0 |
| A | 15 | 237 | 10824 | 74.62 | 688 | 675 | 136.0 |
| A | 10 | 83 | 10125 | 69.48 | 688 | 675 | 136.0 |
| B | 5 | 172 | 410028 | 3239.13 | 673 | 657 | 126.4 |
| B | 15 | 222 | 127048 | 1000.06 | 673 | 657 | 126.4 |
| B | 0 | 199 | 68535 | 537.08 | 673 | 657 | 126.4 |
| C | 15 | 214 | 225740 | 1471.54 | 672 | 680 | 152.9 |
| C | 14 | 254 | 201484 | 1312.94 | 672 | 680 | 152.9 |
| C | 3 | 233 | 135724 | 882.98 | 672 | 680 | 152.9 |
| D | 8 | 195 | 1590747 | 9756.9 | 672 | 656 | 163.0 |
| D | 1 | 47 | 265790 | 1626.88 | 672 | 656 | 163.0 |
| D | 7 | 223 | 132372 | 808.22 | 672 | 656 | 163.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

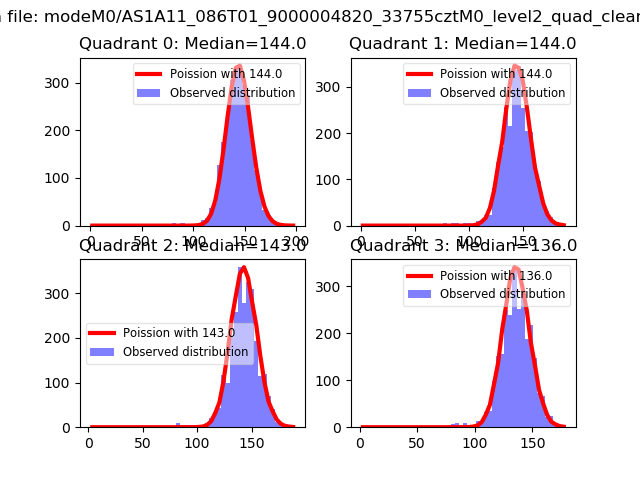

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

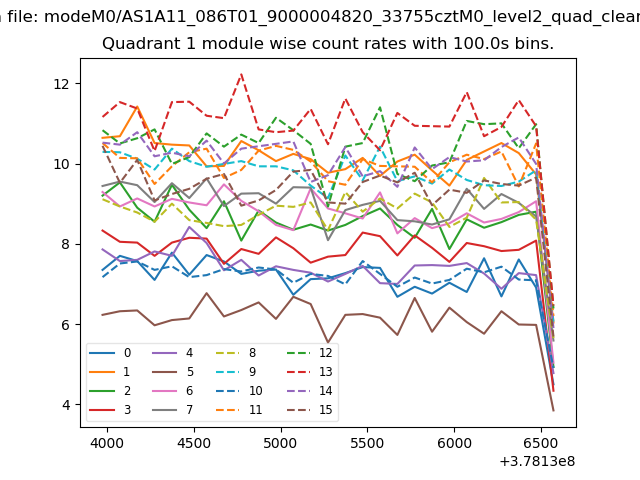

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

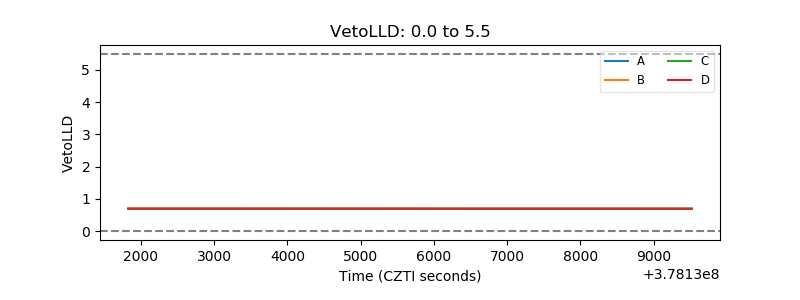

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

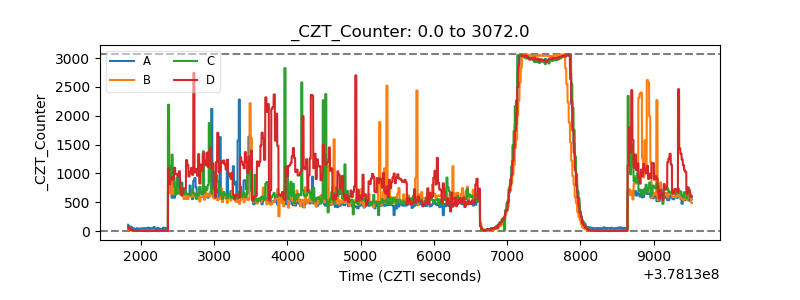

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

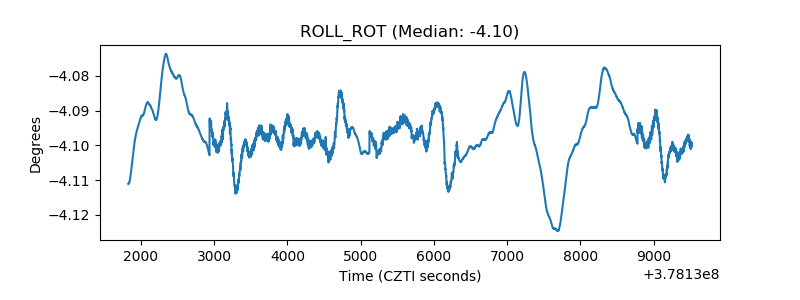

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

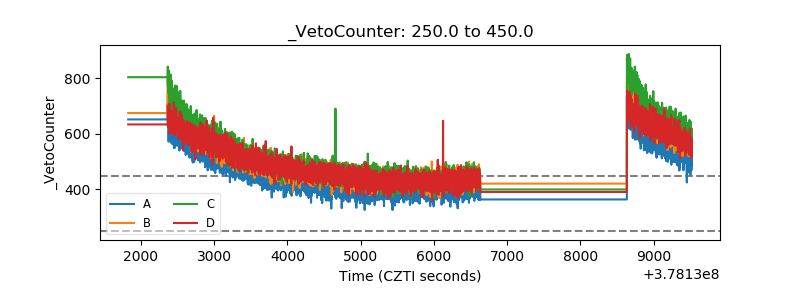

| Veto Counter |  |
